Interface Board Installation And Removal; Interface Board Jumper Locations; Reference Signal Connections - Allen-Bradley 1336 FORCE User Manual

DC Power Supply
1 2 3 4 5 6
+10V Com –10V
SH
+ –
0 to 10V
If using a
potentiometer
User Supplied Analog Device
reference* 2.5K Ω minimum
Terminal Block Terminal #
TB5 SH
1,2,3
4,5,6,7
10,11
13,14
TB6
SH
1,2,4,5
7,8
TB7
TE
4,5,6
7,8,9
Interface Board Installation and Removal –
IMPORTANT: If the L Option Board is being installed, Standard Adapter
Board jumpers at pins 3 & 4 and 17 & 18 of J10 must be removed and the
proper Input Mode selected (Figure 2.16). If the L Option board is
removed, these jumpers must be reinstalled and the Input Mode parameter
must be programmed to "1".

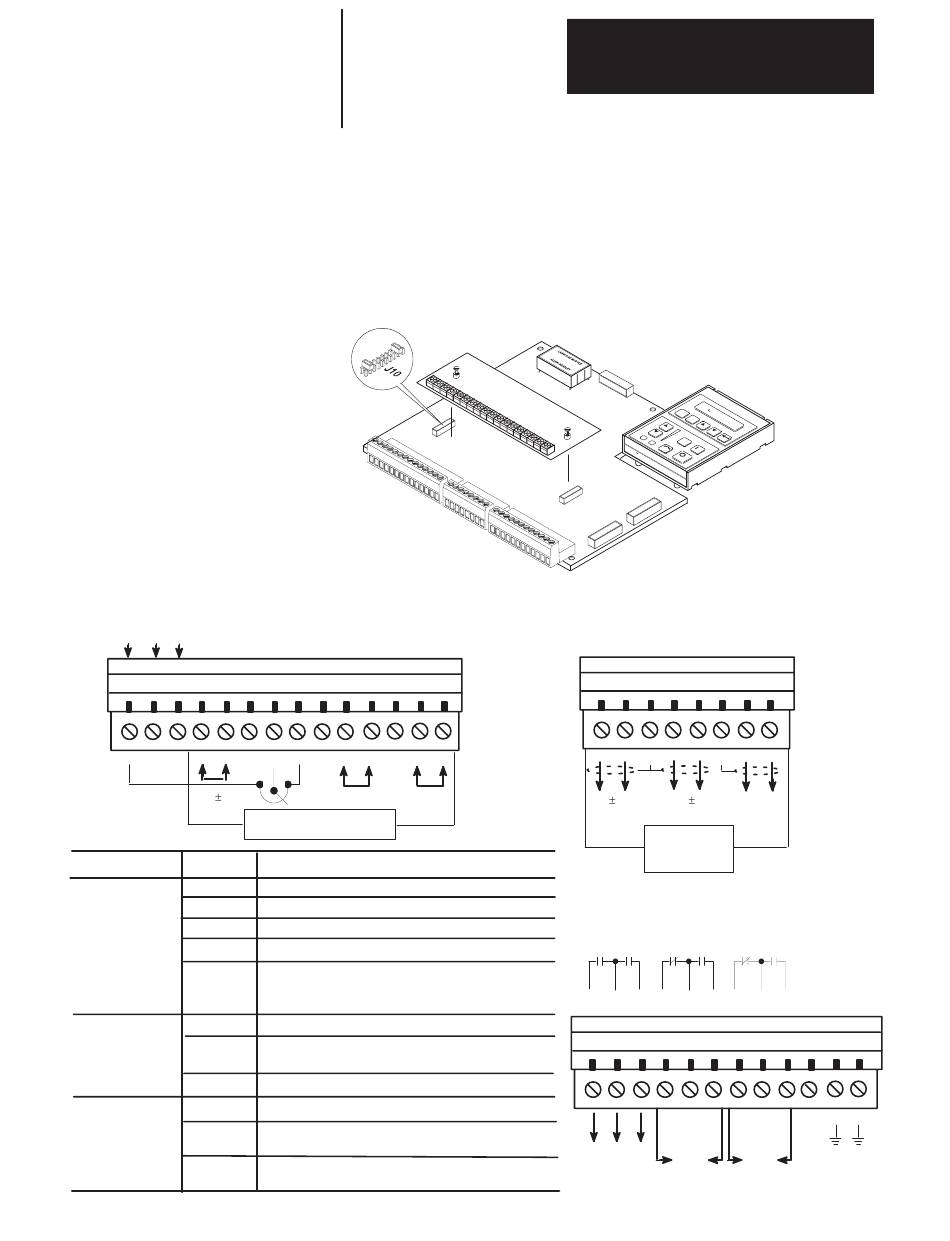

Figure 2.16.

Interface Board Jumper Locations

Figure 2.17.
Reference Signal Connections (Standard Adapter Board)
7 8 9 10 11 12 13 14
TB5
SH SH +
+ – + –
4 to 20ma Pulse
Source
Signal
Shield Ground
+/– 10VDC, 50 mA per voltage
DC Power Supply
0 to +/– 10V DC Input:
Input Impedance = 20K Ohms
4 – 20ma Input:
Input Impedance = 130 Ohms
Pulse Input for
+5V DC – Jumper xx Set to xx
Frequency Ref.:
+12V DC – Jumper xx Set to xx
Scale Factor (Pulse PPR) must be set
Shield Ground
0 to +/– 10 V Output Impedance = 100 Ohms
DC Output: Output Impedance = 100 Ohms
Output Impedance = 20 Ohms
4 – 20 ma DC Output
Logic Earth Ground / Shield Ground
Fault Contact Resistive Rating = 115VAC/30VDC, 5.0A
Inductive Rating = 115VAC/30VDC, 2.0A
Alarm Contact Resistive Rating = 115VAC/30VDC, 5.0A
Inductive Rating = 115VAC/30VDC, 2.0A
Chapter 2
Installation/Wiring
1 2
+
–
0 to 10V
* External to Drive
Program
mable* Run
1 2
Programmable
Supply
ESC
SEL
JOG
3 4 5 6 7 8
TB6
– + –
SH + –
SH
0 to 10V 4 – 20 ma
Analog
Outputs
Fault Alarm
3 4 5 6 7 8 9 10 11 12
TB7
Run
Fault Alarm
Relay Relay
Note: This output is programmable through P384
TE TE
