5730A
Operators Manual
Cable supplied with
the 5700A-03 option
HI
LO
4-14
50 Ω Feedthrough Terminator
supplied with the 5700A-03 option
NOTE
For wideband meters with higher than 50 Ω input impedence, use the 50 Ω
feedthrough terminator at the meter connection end. For all wideband
applications, take care to achieve a good 50 Ω impedence match (use cable
and connectors with a characteristic input impedence of 50 Ω).

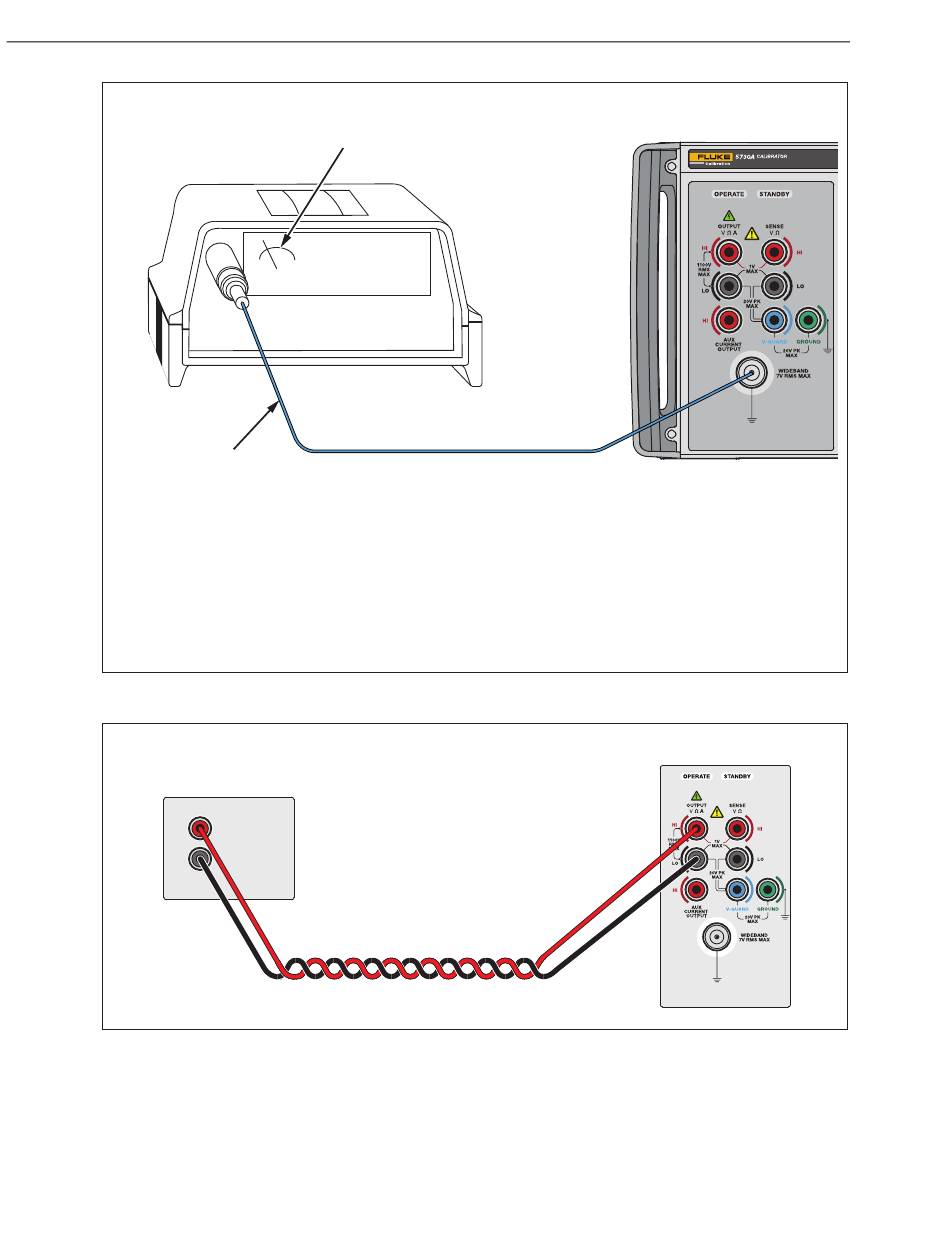

Figure 4-5. UUT Wideband AC Voltage Output (5700A-03 Option)
5725A
Figure 4-6. UUT Connections: 5725A Amplified Current Output
5730A
hhp016.eps
UUT
hhp017.eps
