GRAPHTEC midi LOGGER GL240 Quick Start Manual page 6

• The internal memory is displayed as the SD1 or SD CARD1
• The internal memory is not removable.

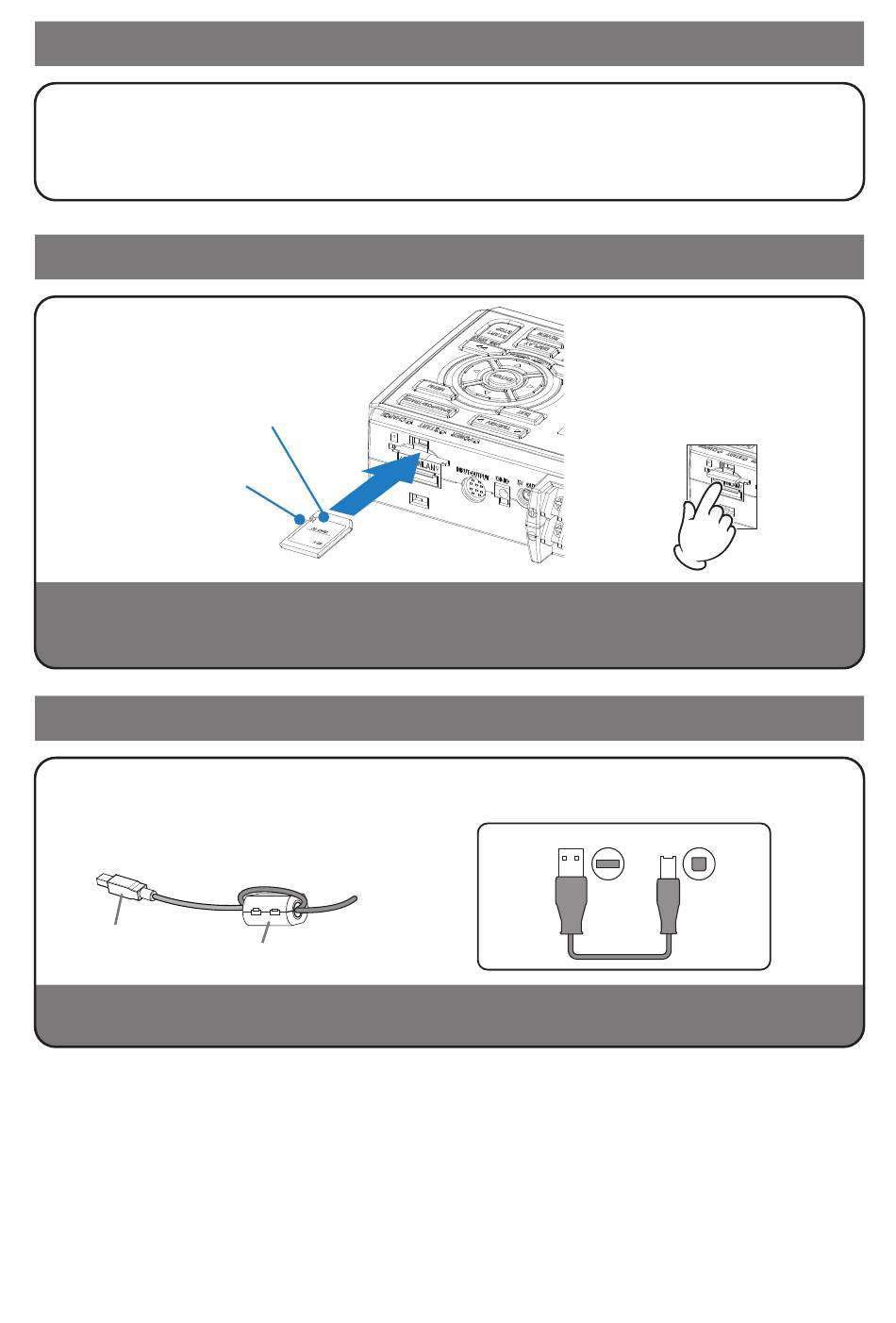

< How to mount >
(1) Open the protective cover of
SD CARD 2.
(2) Push the SD memory card
until it clicks and is locked.
* Make sure that the
SD memory card is
not locked.
CAUTION: The SD memory card is unlocked by pushing gently the SD memory card. Then, remove the SD
memory card.
When the optional wireless LAN unit is installed, the SD memory card cannot be mounted.
The POWER LED blinks while accessing to the SD memory card.
When connecting to the PC with
the USB cable, attach the supplied
ferrite core to the USB cable as
shown in the following figure.
USB cable
This midi LOGGER complies with the EMC Directive in the state when the supplied ferrite core is attached to the
USB cable.
4
Internal memory
Mounting of the SD CARD 2
Connection of the USB cable
Ferrite core (Supplied)
Using the cable with A-type and B-type connectors,
connect between the midi LOGGER and PC.
A-type connector
< How to remove >
(1) The SD memory card is
unlocked by pushing
gently the SD memory
card. Then, remove the
SD memory card.
B-type connector
