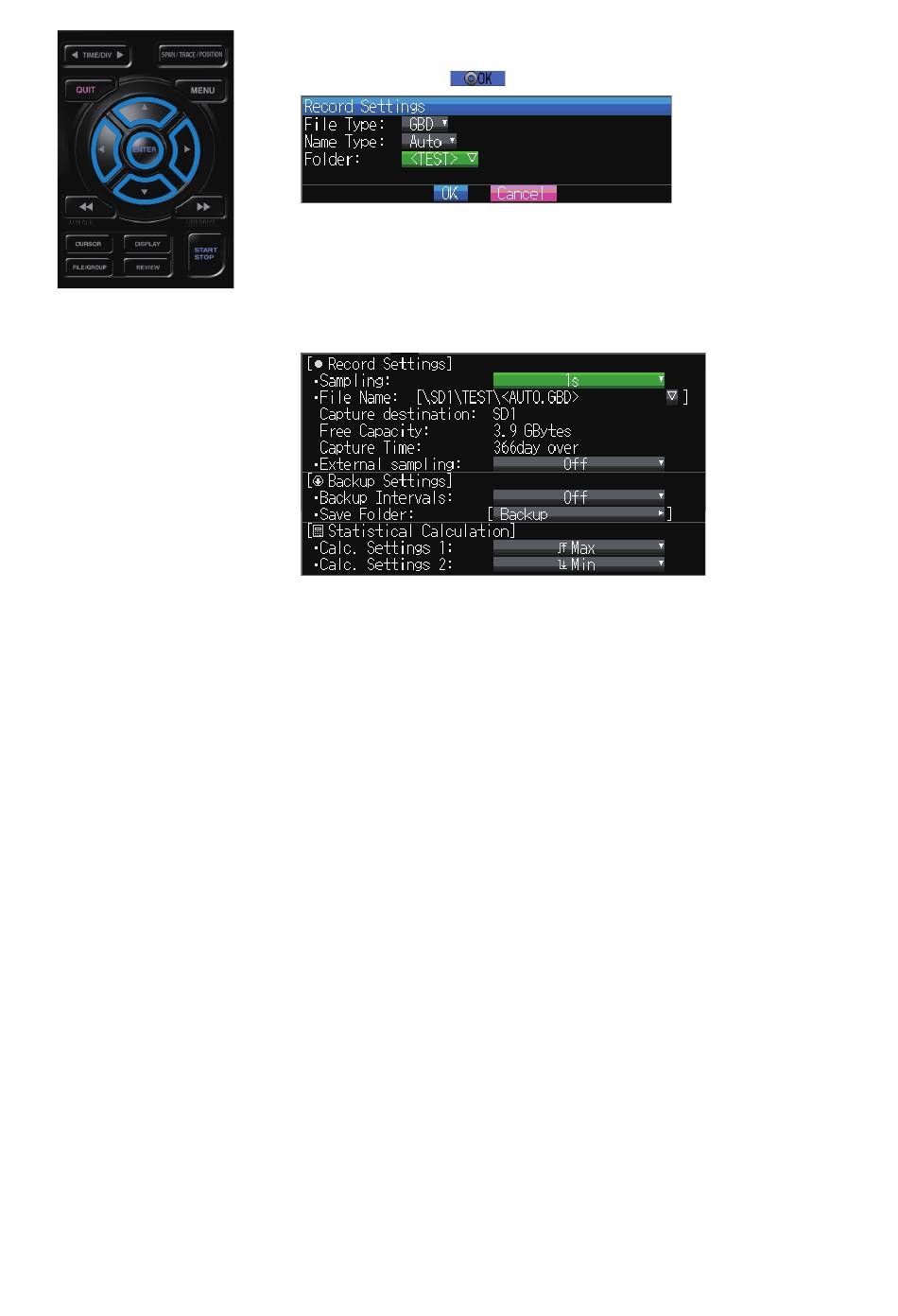

(6) Return to the Data Save Destination screen in (2). Next select the
"TEST" folder and then press the [ENTER] key.
(7) Move the cursor to
The data is recorded with the automatic file naming in the <TEST> folder
of the mounted internal memory (SD1).
(8) Available space in specified memory device and time for data capture are
displayed in the lower part of the Record Settings menu.
The data capture time can be checked.
Minimum required setting for data capture is completed.
and then press the [ENTER] key.
13
