7.8.5 Config Manager

Import or export device info, password info, card no. info and login info of the device.
7.8.5.1 Export Config
Export and save config in the local device. When other devices need to configure the same
parameters, the config file can be imported.
Click "Export Config".
Step 1

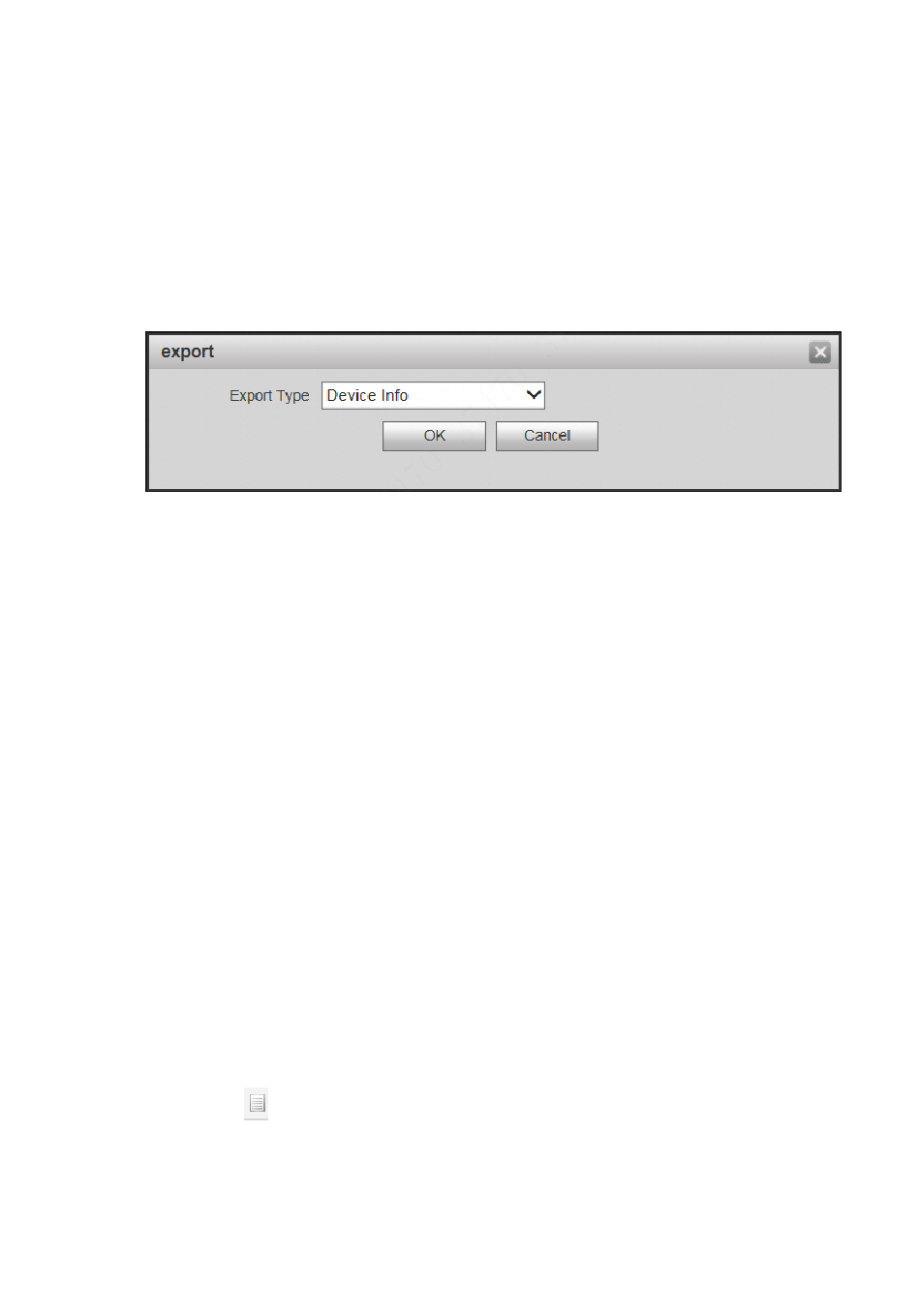

The system displays "Export" interface, as shown in Figure 7-42.
Select "Export Type" and click "OK".
Step 2
Step 3 Select a location to save it.
Click "Save".
Step 4
The system prompts "Operation Succeeded", representing successful export.
7.8.5.2 Import Config
Import local config file into the device, so as to realize configuration.
Click "Import Config".
Step 1
The system displays "Open" interface.
Select config file (.log) to be imported and click "Open".
Step 2
The system prompts "Operation Succeeded", representing successful import.

7.8.6 Card Manager

Issue card, report loss and cancel, modify card ID and delete card.
7.8.6.1 Report Loss
If one card is lost, report loss of the card. The card doesn't have authority to unlock the door,
until the report is cancelled.
Step 1 Click
The system displays "Card Info" interface, as shown in Figure 7-43.
Figure 7-42
.
