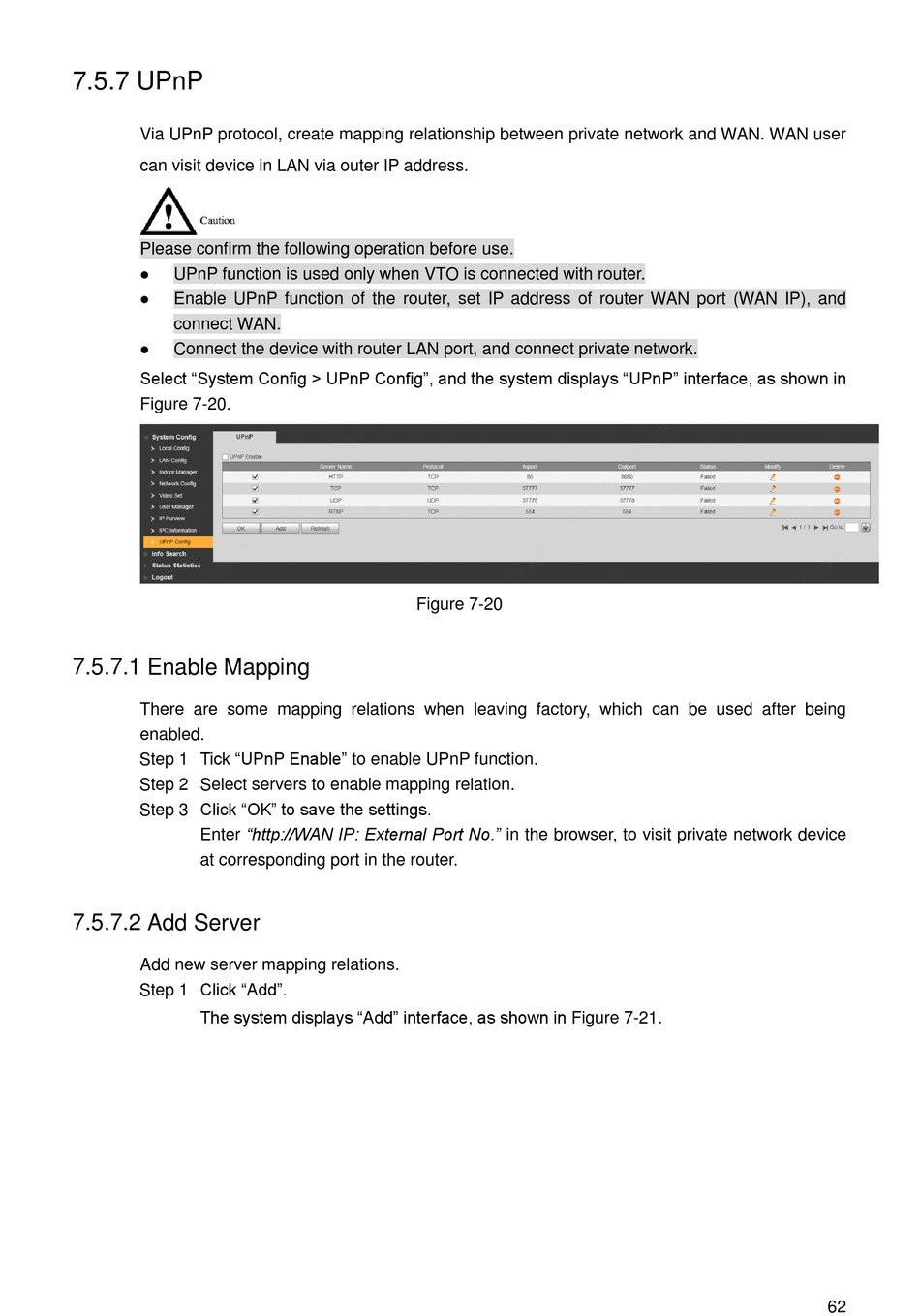

7.5.7 UPnP

Via UPnP protocol, create mapping relationship between private network and WAN. WAN user
can visit device in LAN via outer IP address.
Please confirm the following operation before use.
UPnP function is used only when VTO is connected with router.

Enable UPnP function of the router, set IP address of router WAN port (WAN IP), and

connect WAN.
Connect the device with router LAN port, and connect private network.

Select "System Config > UPnP Config", and the system displays "UPnP" interface, as shown in
Figure 7-20.
7.5.7.1 Enable Mapping
There are some mapping relations when leaving factory, which can be used after being
enabled.
Tick "UPnP Enable" to enable UPnP function.
Step 1
Step 2 Select servers to enable mapping relation.
Click "OK" to save the settings.
Step 3
Enter "http://WAN IP: External Port No." in the browser, to visit private network device
at corresponding port in the router.
7.5.7.2 Add Server
Add new server mapping relations.
Click "Add".
Step 1
The system displays "Add" interface, as shown in Figure 7-21.
Figure 7-20
