4.2
Flush Mounting
Step 1
Dig a hole in the wall.
Regarding single module mounting, hole dimension is 115mm×115mm×57mm.
Regarding double module mounting, hole dimension is 237mm×125mm×50mm.
Regarding 3-module mounting, hole dimension is 349mm×125mm×50mm.
Step 2
Embed flush mounting box into the wall; ensure that box edge clings to the wall.
Step 3
Fix every module onto front panel with M3×6 screws.
Connect cables. Please refer to "2 Product Structure".
Step 4
Step 5
Fix the front panel onto flush mounting box with M4×40 screws.
Step 6
Apply glue among front panel, flush mounting box and the wall.
Write room number or the user's name on the visiting card, and insert it into user
Step 7
directory.

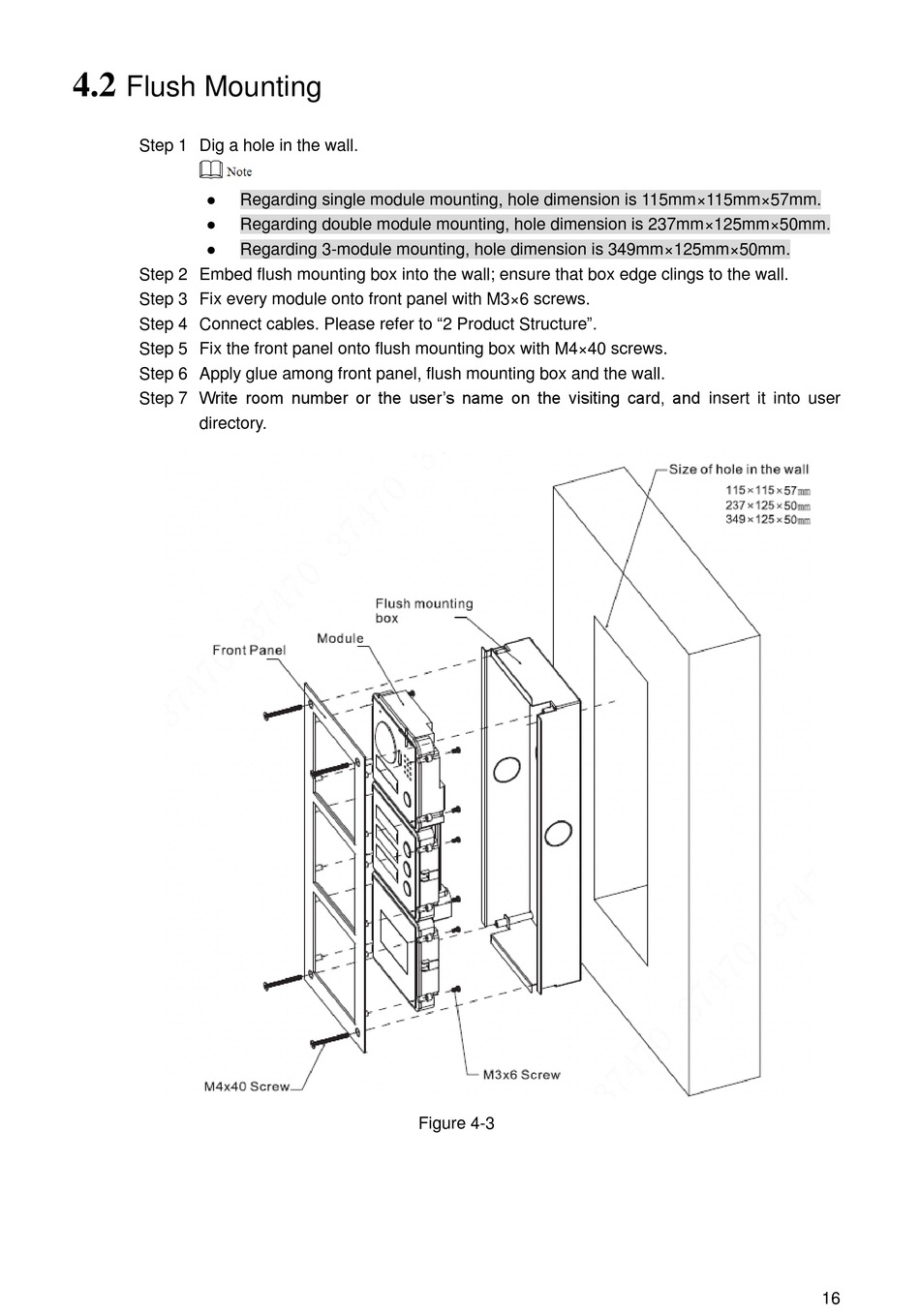

Figure 4-3
16
