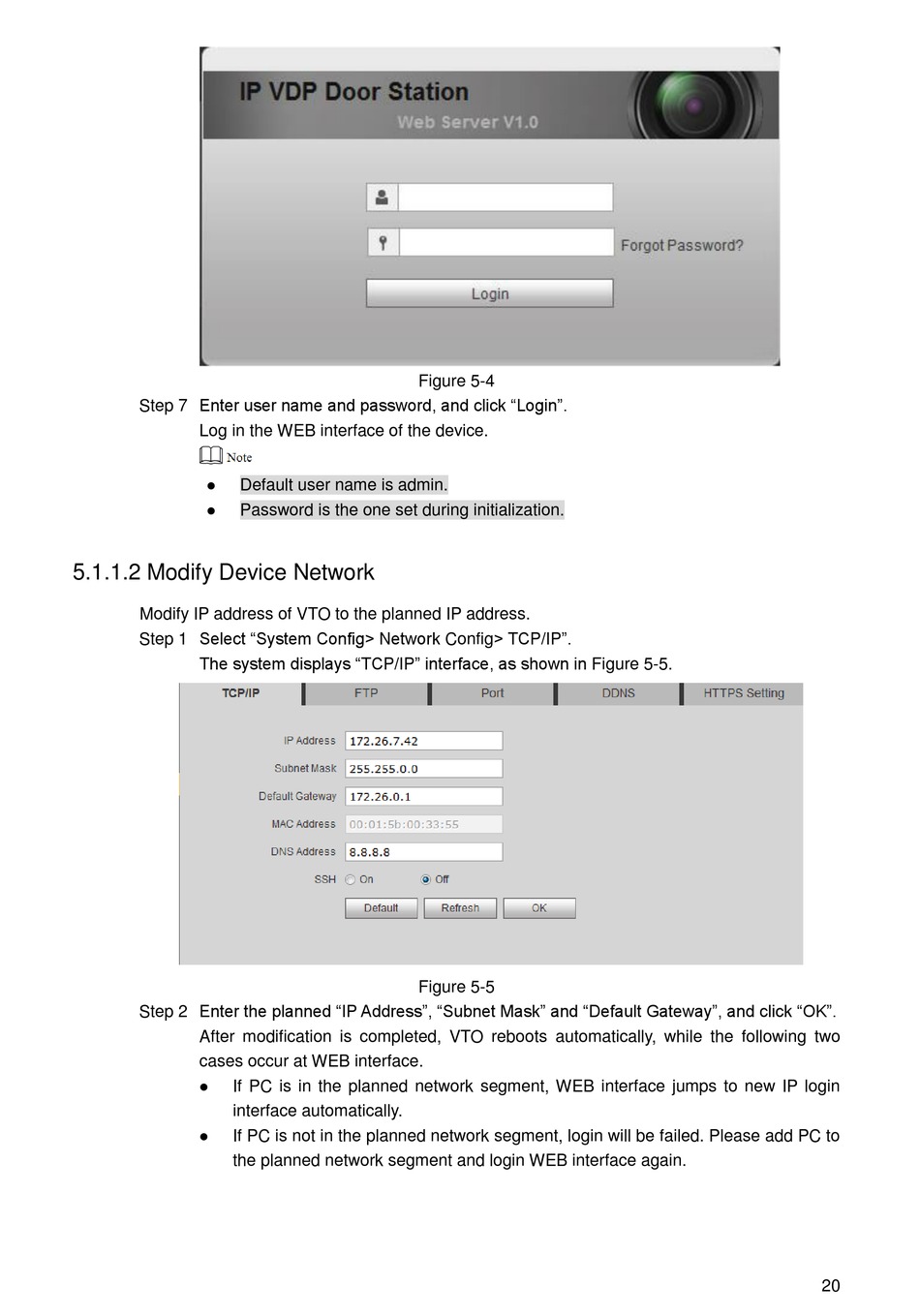

Dahua Modular VTO User Manual page 30

Enter user name and password, and click "Login".
Step 7
Log in the WEB interface of the device.
 Default user name is admin.
 Password is the one set during initialization.
5.1.1.2 Modify Device Network
Modify IP address of VTO to the planned IP address.
Select "System Config> Network Config> TCP/IP".
Step 1
The system displays "TCP/IP" interface, as shown in Figure 5-5.
Enter the planned "IP Address", "Subnet Mask" and "Default Gateway", and click "OK".
Step 2
After modification is completed, VTO reboots automatically, while the following two
cases occur at WEB interface.
If PC is in the planned network segment, WEB interface jumps to new IP login

interface automatically.
If PC is not in the planned network segment, login will be failed. Please add PC to

the planned network segment and login WEB interface again.
Figure 5-4
Figure 5-5
20
