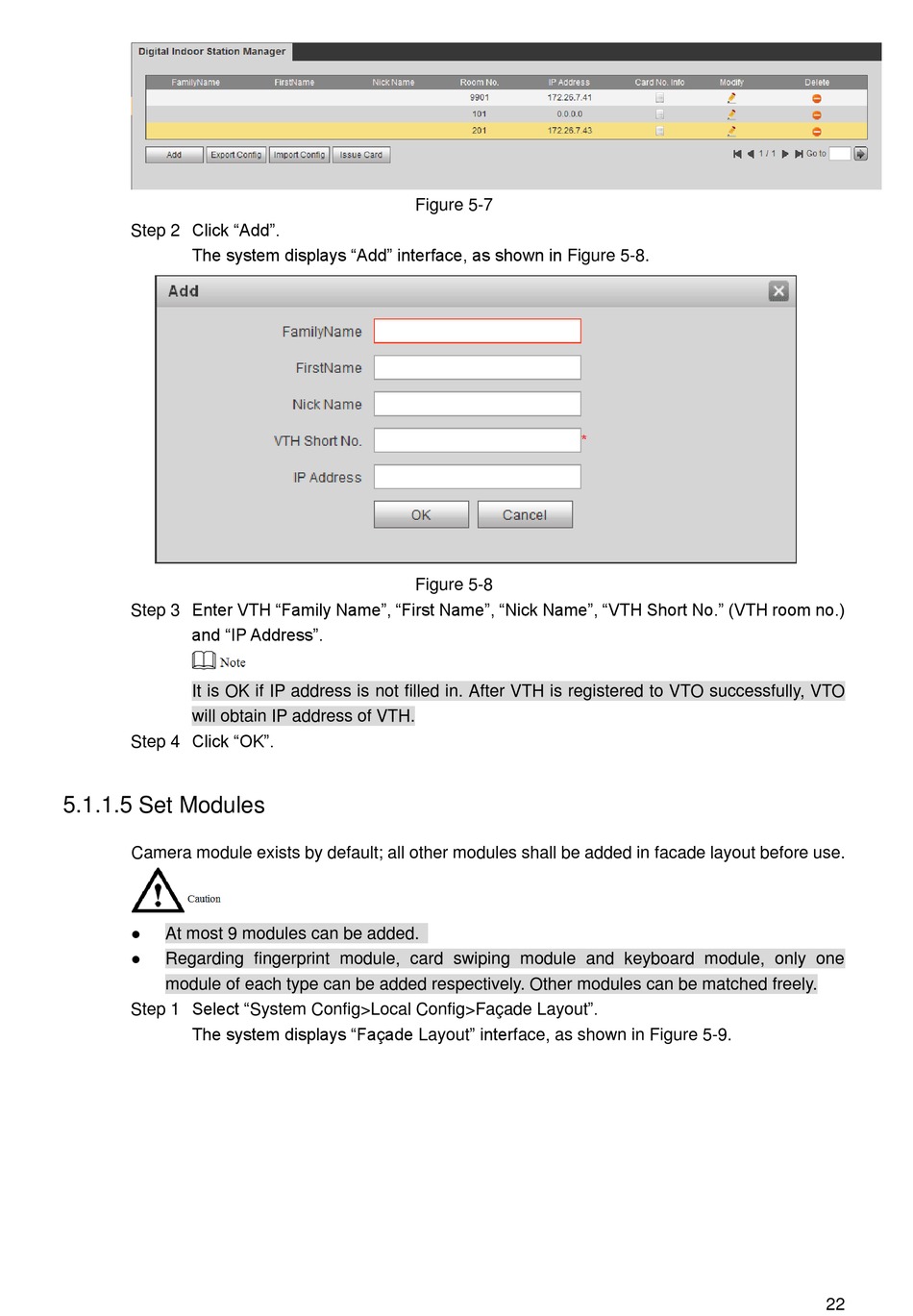

Dahua Modular VTO User Manual page 32

Click "Add".
Step 2
The system displays "Add" interface, as shown in Figure 5-8.
Enter VTH "Family Name", "First Name", "Nick Name", "VTH Short No." (VTH room no.)
Step 3
and "IP Address".
It is OK if IP address is not filled in. After VTH is registered to VTO successfully, VTO
will obtain IP address of VTH.
Click "OK".
Step 4
5.1.1.5 Set Modules
Camera module exists by default; all other modules shall be added in facade layout before use.
At most 9 modules can be added.

Regarding fingerprint module, card swiping module and keyboard module, only one

module of each type can be added respectively. Other modules can be matched freely.
Select "System Config>Local Config>Faç ade Layout".
Step 1
The system displays "Façade Layout" interface, as shown in Figure 5-9.
Figure 5-7
Figure 5-8
