Step 2 Click .
The system displays available modules, as shown in Figure 5-10.
If keyboard module, card swiping module and fingerprint module have been added
already, they are not displayed here.
Step 3 Select modules according to actual layout of VTO.
 Support continuous adding.
 Button module and camera module shall set corresponding relation of call key.
For specific bonding operations, please refer to "Step 4~ Step 5". Other modules
need not to set. Click "OK" to save.
Step 4 Click
The system displays "Room Config", as shown in Figure 5-11.
The displayed room no. is the added VTH. To add VTH, please refer to "7.8.1 Add

VTH".
Click to modify the bonded buttons when necessary.


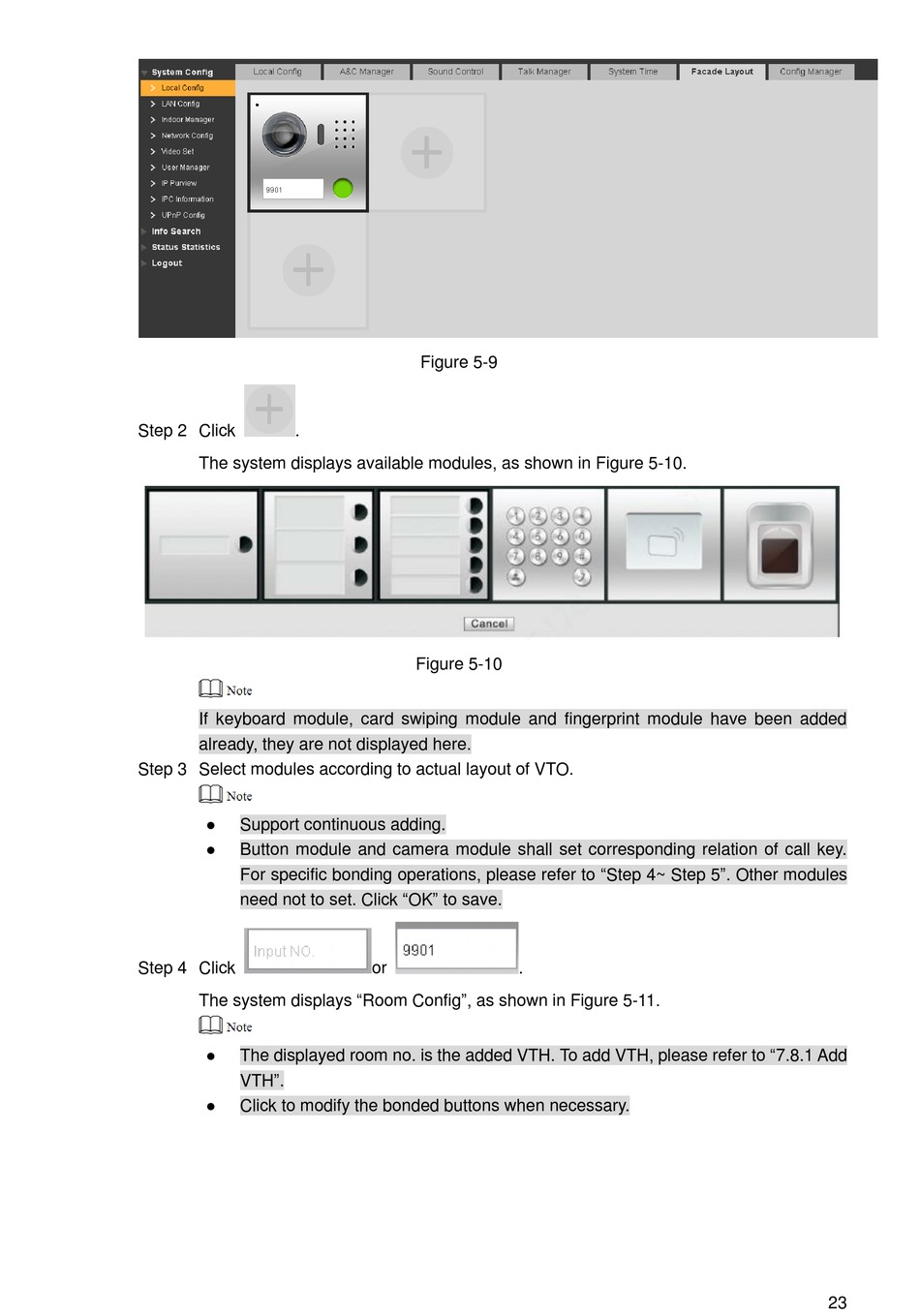

Figure 5-9
Figure 5-10
or .
23
