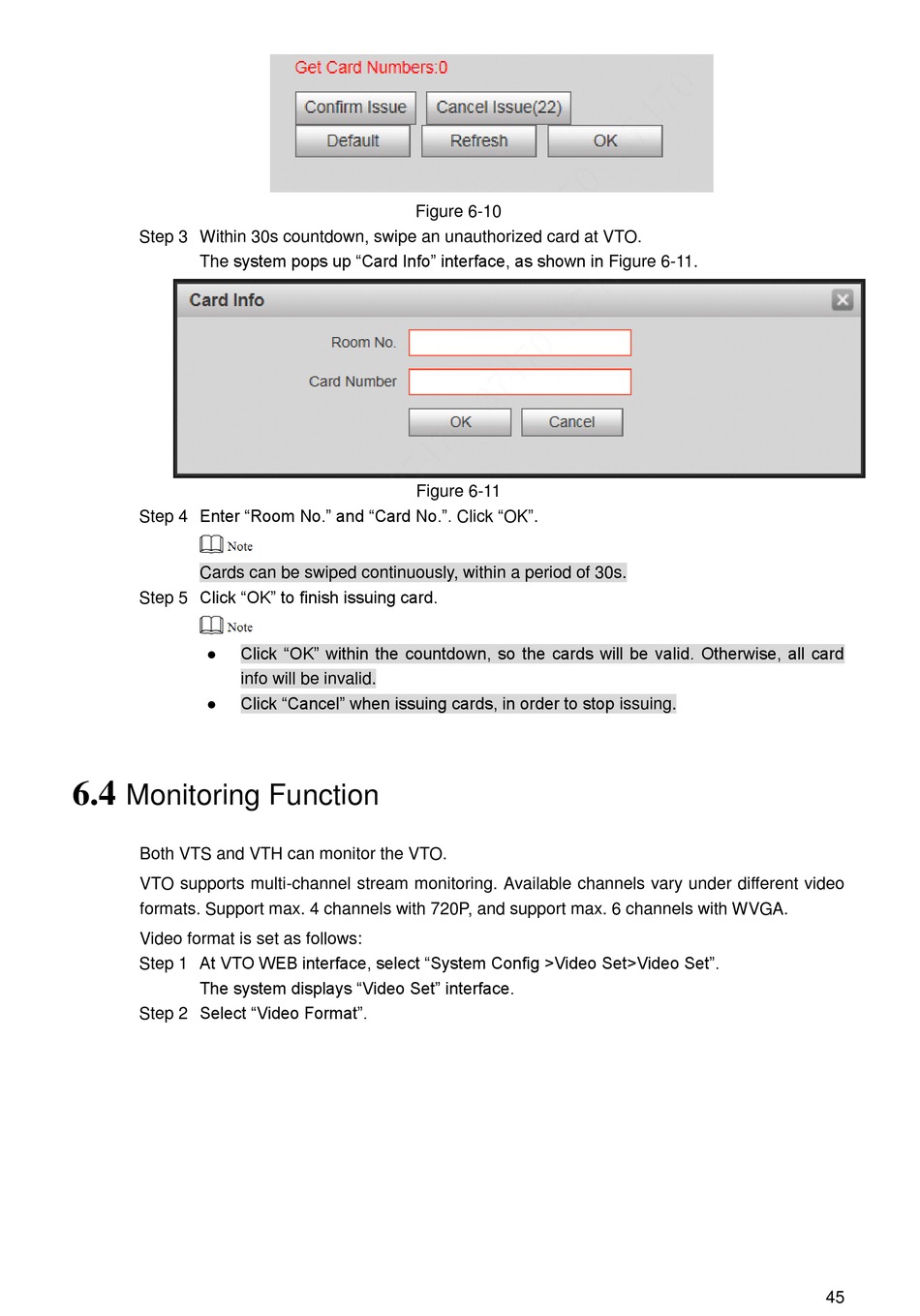

Step 3 Within 30s countdown, swipe an unauthorized card at VTO.
The system pops up "Card Info" interface, as shown in Figure 6-11.
Enter "Room No." and "Card No.". Click "OK".
Step 4
Cards can be swiped continuously, within a period of 30s.
Click "OK" to finish issuing card.
Step 5
Click "OK" within the countdown, so the cards will be valid. Otherwise, all card

info will be invalid.
Click "Cancel" when issuing cards, in order to stop issuing.

6.4

Monitoring Function

Both VTS and VTH can monitor the VTO.
VTO supports multi-channel stream monitoring. Available channels vary under different video
formats. Support max. 4 channels with 720P, and support max. 6 channels with WVGA.
Video format is set as follows:
At VTO WEB interface, select "System Config >Video Set>Video Set".
Step 1
The system displays "Video Set" interface.
Select "Video Format".
Step 2
Figure 6-10
Figure 6-11
45
