Control terminals

2 Relays
3 Line (L3, L2, L1)
4 PE
5 RS-485
Illustration 4.7 Cabling, MH1-MH3

4.8 Control Wiring

4.8.1 Control Terminals
Procedure:
1. Connect the terminal and cables at the locations
shown in Illustration 4.8 and Illustration 4.9.
2. For additional terminal details, refer to the
following sections.
3. Mount the front cover and tighten the screws.
4. The frequency converter is now ready. For start-
up, go to section chapter 5.1.2 Start-up
20
Operating Instructions
2
3
4

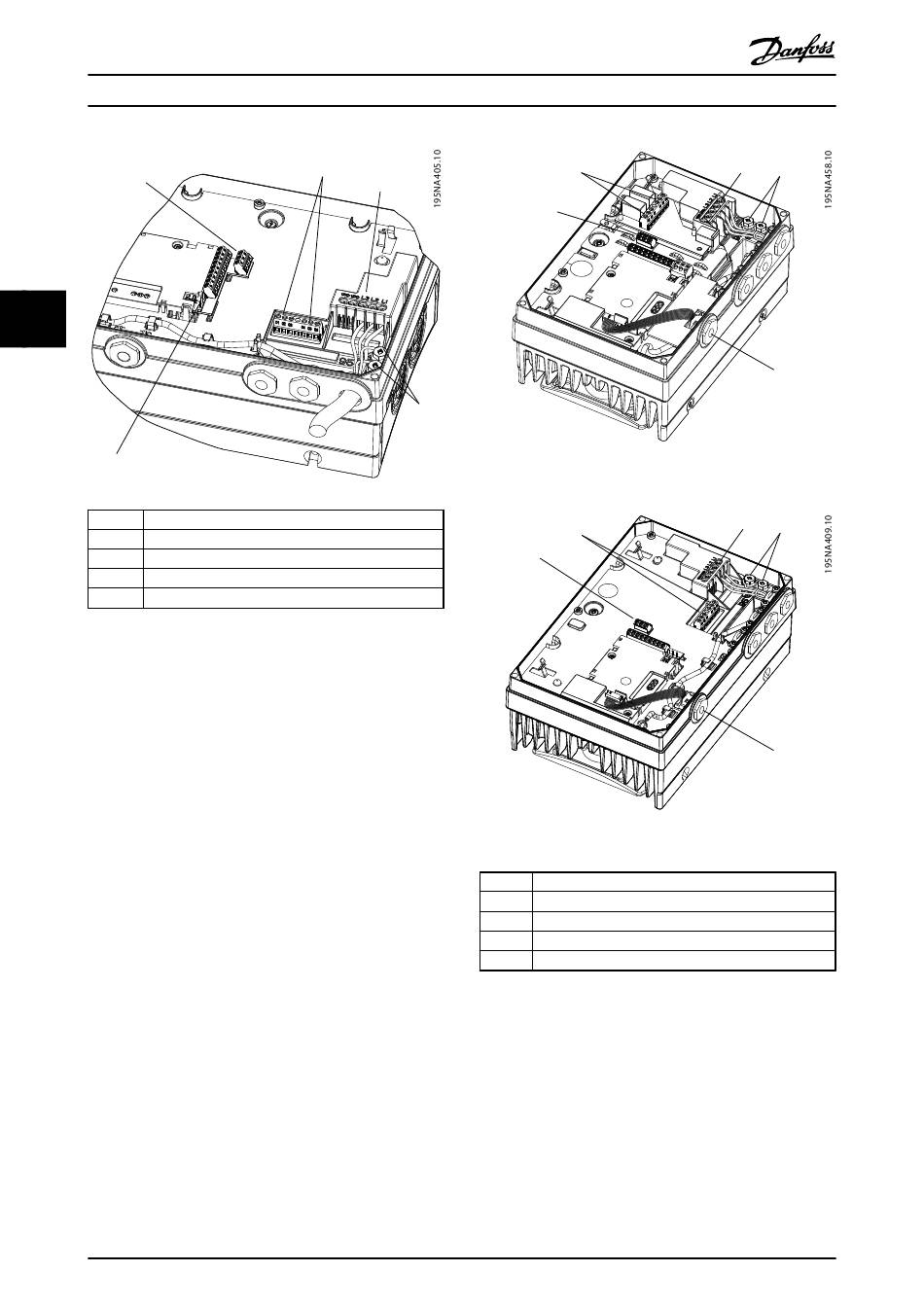

Illustration 4.8 Location of Terminals and Relays, MH1
Illustration 4.9 Location of Terminals and Relays, MH2-MH3
1
2
3
4
5
Table 4.2 Legend to Illustration 4.9, Illustration 4.8
Danfoss A/S © Rev. 06/2014 All rights reserved.
2
1
2
1
Control terminals
Relays
UDC+, UDC-, Line (L3, L2, L1)
PE
LCP connector
3
4
5
3
4
5
MG03L202
