Mechanical Installation

3 Mechanical Installation

3.1 Unpacking

NOTICE
INSTALLATION - EQUIPMENT DAMAGE RISK
Incorrect installation can result in equipment damage.
•
Before installation check for fan cover damage,
shaft damage, foot or mounting damage, and
loose fasteners.
•
Check nameplate details.
•
Ensure level mounting surface, balanced
mounting. Avoid misalignment.
•
Ensure gaskets, sealants, and guards are
correctly fitted.
•
Ensure correct belt tension.

3.1.1 Items Supplied, FCP 106

Check all items are present:
•
1 FCP 106 frequency converter
•
1 accessory bag
•
Operating Instructions

3.1.2 Additional Items Required, FCP 106

•
1 adapter plate (wall adapter plate or motor
adapter plate)
•
1 gasket, used between motor adapter plate and
frequency converter
•
1 motor connector
•
4 screws for fastening frequency converter to
adapter plate
•
4 screws for fastening motor adapter plate to
motor
•
Crimp terminals:
AMP standard power timer contacts
female, see chapter 4.6.1 Connect FCP
106 to Motor for ordering numbers
- 3 pcs for motor terminals, UVW
-
2 pcs for thermistor (optional)
•
2 guiding pins (optional)
MG03L202
Operating Instructions

3.1.3 Items Supplied, FCM 106

Check all items are present:
•
•
•

3.1.4 Identification of Unit

Items supplied may vary according to product configu-
ration.
•
•

3.1.5 Nameplates

VLT
1
11
T/C: FCP106P4K0T4C66H1FSXXAXX
10
P/N: 134G2844
9
4.0kW(400V) / 5.0HP(460V)
8
IN: 3x380-480V 50/60Hz , 8.3/6.8A
7
OUT: 3x0-Vin 0-400Hz , 9.0/8.2A
Enclosure: IP66 , Tamb. 40 C / 104 F
1 Type code
2 Certifications
3 Enclosure rating
4 Bar code for manufacturer use
5 Certifications
6 Serial number
7 Enclosure type and IP rating, max. ambient temperature
Output voltage, frequency, and current (at low/high
8
voltages)
9 Input voltage, frequency, and current (at low/high voltages)
10 Power rating
11 Ordering number

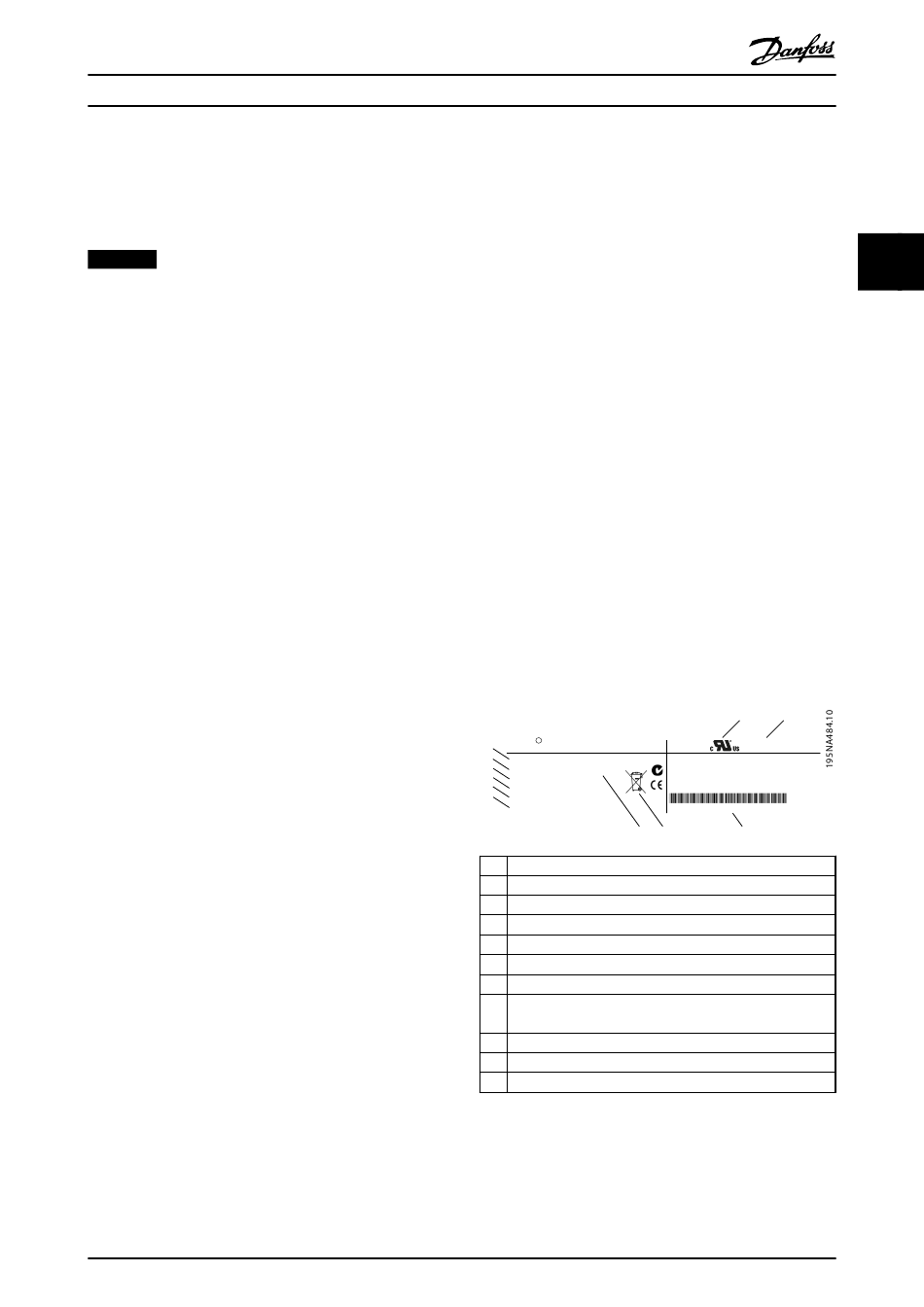

Illustration 3.1 FCP 106 Nameplate (Example)
1): Example of format: Serial number 'xxxxx253' indicates
manufacture in week 25, year 2013
Danfoss A/S © Rev. 06/2014 All rights reserved.
1 FCM 106 frequency converter with motor
1 accessory bag
Operating Instructions
Make sure the items supplied and the
information on the nameplate correspond to the
order confirmation.
Check the packaging and the frequency converter
visually for damage caused by inappropriate
handling during shipment. File any claim for
damage with the carrier. Retain damaged parts
for clarification.
R Drive Motor
www.danfoss.com
S/N: 010400G253
o
o * 1 3 1 U 3 9 3 0 0 1 0 1 0 2 G 2 9 0 *
6 5
1)
3 3
2 3
Enclosure rating: Type 4X
E134261 Ind. Contr. Eq.
MADE IN
DENMARK
4
9
