Commissioning

5.3.3 Quick Menu: Motor Set-up

The Quick Menu Motor Set-up guides the installer through
setting of the required motor parameters.
PM motor
1-24 Motor Current
3.80 A
Setup 1
1-25 Motor nominal speed
3000 RPM
Setup 1
1-26 Motor Cont. Rated Torque
5.4 Nm
Setup 1
1-30 Stator resistance
0.65 Ohms
Setup 1
1-39 Motor poles
8
Setup 1
1-40 Back EMF at 1000 rpm
57 V
Setup 1
1-37 d-axis inductance(Ld)
5 mH
Setup 1
4-19 Max Ouput Frequency
0065 Hz
Setup 1

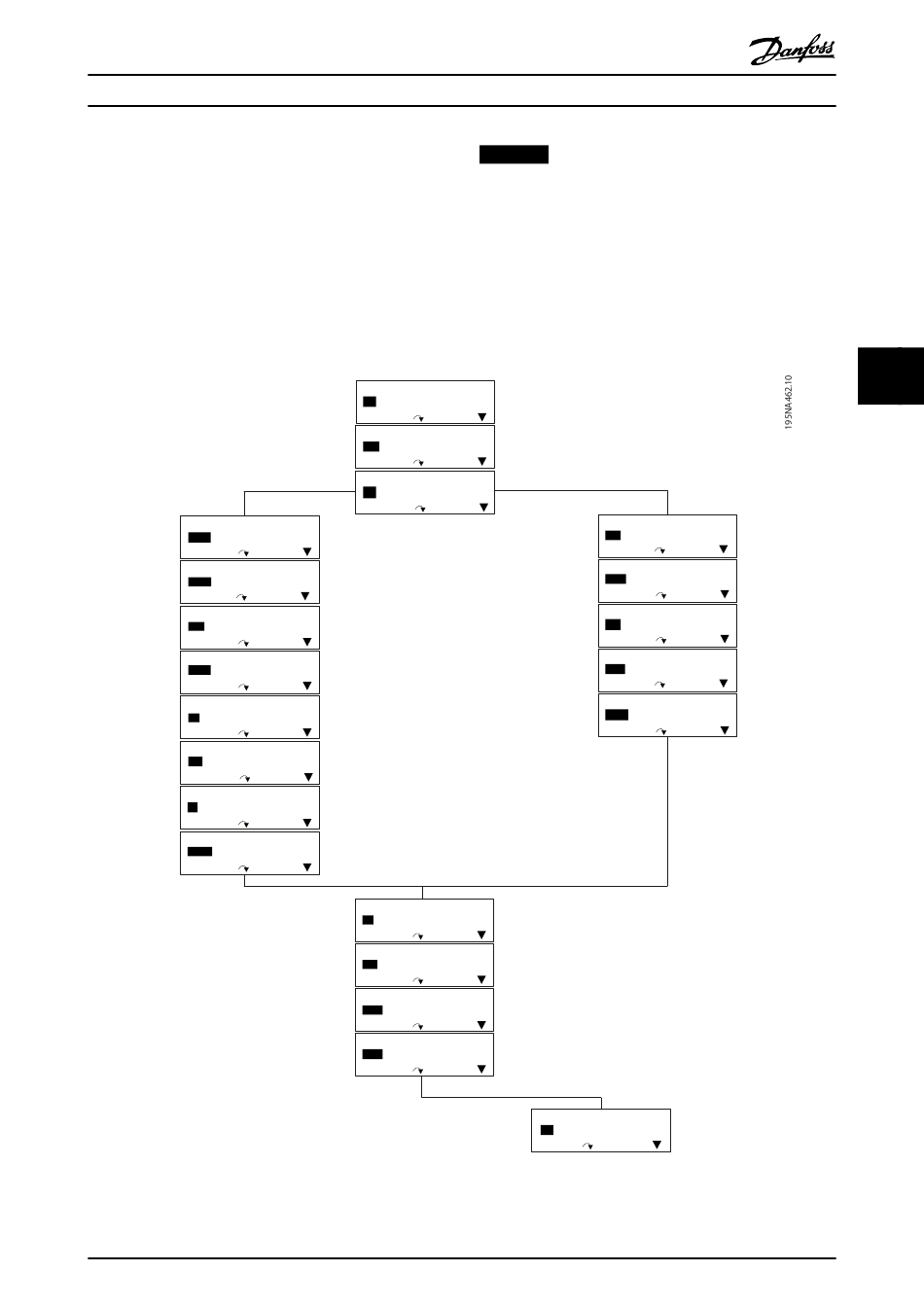

Illustration 5.8 Quick Menu Motor Set-up
MG03L202
Operating Instructions
NOTICE
MOTOR OVERLOAD PROTECTION
Thermal protection of the motor is recommended.
Especially when running at low speed, the cooling from
the integrated motor fan is often not sufficient.
•
•
0-03 Regional Settings
[0] International
Setup 1
0-06 Grid Type
[12] 380-440V/50Hz
Setup 1
1-10 Motor Type
[0] Asynchronous
Setup 1
4-12 Motor speed low limit
0 Hz
Setup 1
4-14 Motor speed high limit
65 Hz
Setup 1
3-41 Ramp 1 ramp-up time
3.00 s
Setup 1
3-42 Ramp1 ramp-down time
3.00 s
Setup 1
PM Motor
Danfoss A/S © Rev. 06/2014 All rights reserved.
Use PTC or Klixon, see chapter 4.6.2 Thermistor
Input from Motor, or
Enable motor thermal protection by setting
1-90 Motor Thermal Protection to [4] ETR trip 1.
Asynchronous Motor
1-20 Motor Power
1.1 kW
Setup 1
1-22 Motor Voltage
400 V
Setup 1
1-23 Motor frequency
50 Hz
Setup 1
1-24 Motor current
3.80 A
Setup 1
1-25 Motor nominal speed
1420 RPM
Setup 1
Asynchronous
1-73 Flying Start
[0] Disabled
Setup 1
