Do not change PI to PI

6.3.5 Setting predictors

Initial conditions
All loop parameters (P, integral and filtering frequency, max. speed, current limitation) are set
(without predictors).
The system is ready to run.
Setting the Gravity and Static Friction predictors
Notice that the gravity factor is zero for a horizontal axis.
Take a square stimulus, offset = 0, peak to peak value = 3 to 5% of maximum speed in rpm,
frequency 0.2 to 1 Hz.

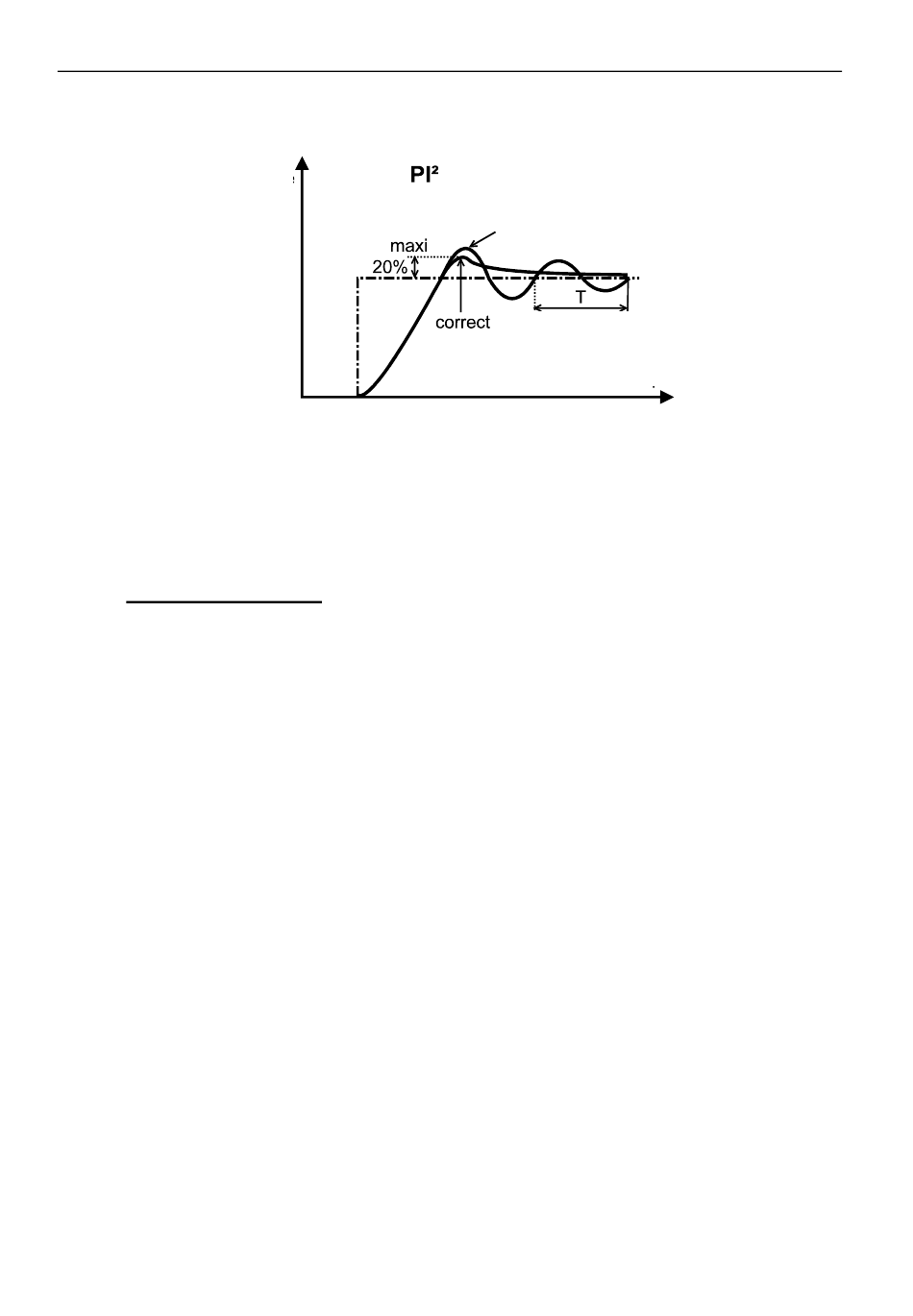

Using the oscilloscope function, display:
♦ The input set point,
♦ The current set point.
