DIGIVEX Little Drive Servoamplifier
In the case of long lengths

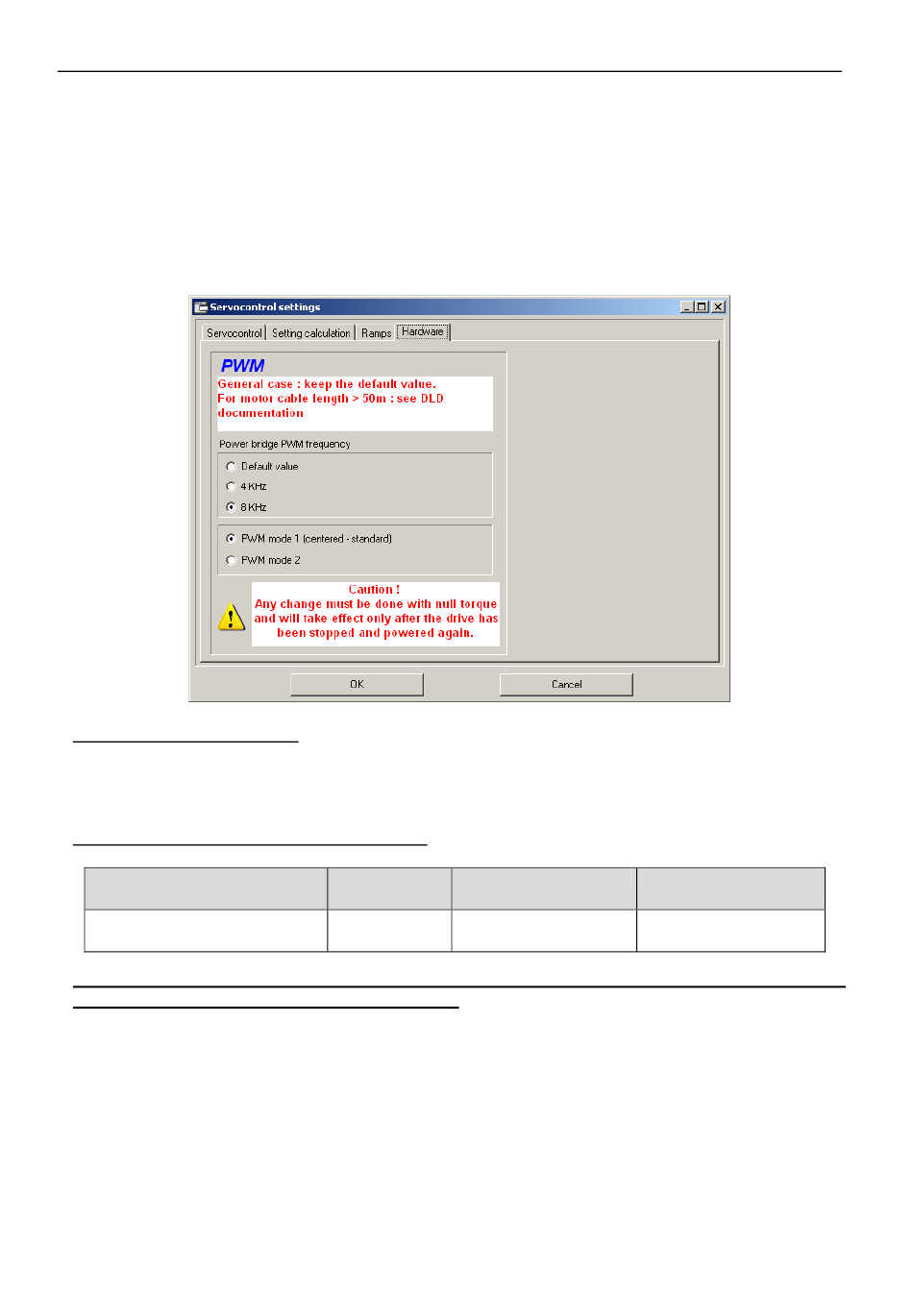

In the case of long cable lengths, there is a special function in the DLD variable speed drive for
versions of software above or equal to AP516V07, running with PME version 4.04 or above. This
function is used to adapt the variable speed drive switching mode according to the length of the
cable. Parameters can be set with PME in "Servo-control settings" under the hardware tab.
There are three possibilities:
The parameters to be applied are as follows:
Cable length
(shielded and non-shielded)
Settings
Only modify the parameters in these specific cases. Follow any modification by shutting
down and restarting the variable speed drive.
Connection by connector
The power connection on the motor by connector is available as an option. The mating part of
the connector (plug) can be supplied on request.
