DIGIVEX Little Drive Servoamplifier
MC
2631
DIGIVEX
Encoder Emulation
The resolver is above all a position sensor. It is used to measure the position of the rotor relative
to the stator.
This function allows the transformation of the signal from the resolver into a series of pulses
identical to those from an incremental encoder: A, B, 0 and their complement.
Programming resolution and zero mark position
This is done with the DIGIVEX PC software.
Resolution
Adjustable between 1 and 16384, either by +/- keys, or be entering the number directly (OFF
LINE only).
Zero Mark Setting
Setting by teaching, with the PC working "on line".
When the operator judges the position is suitable, he confirms by acknowledging the zero mark.
This manual was downloaded on www.sdsdrives.com
+44 (0)117 938 1800 - info@sdsdrives.com

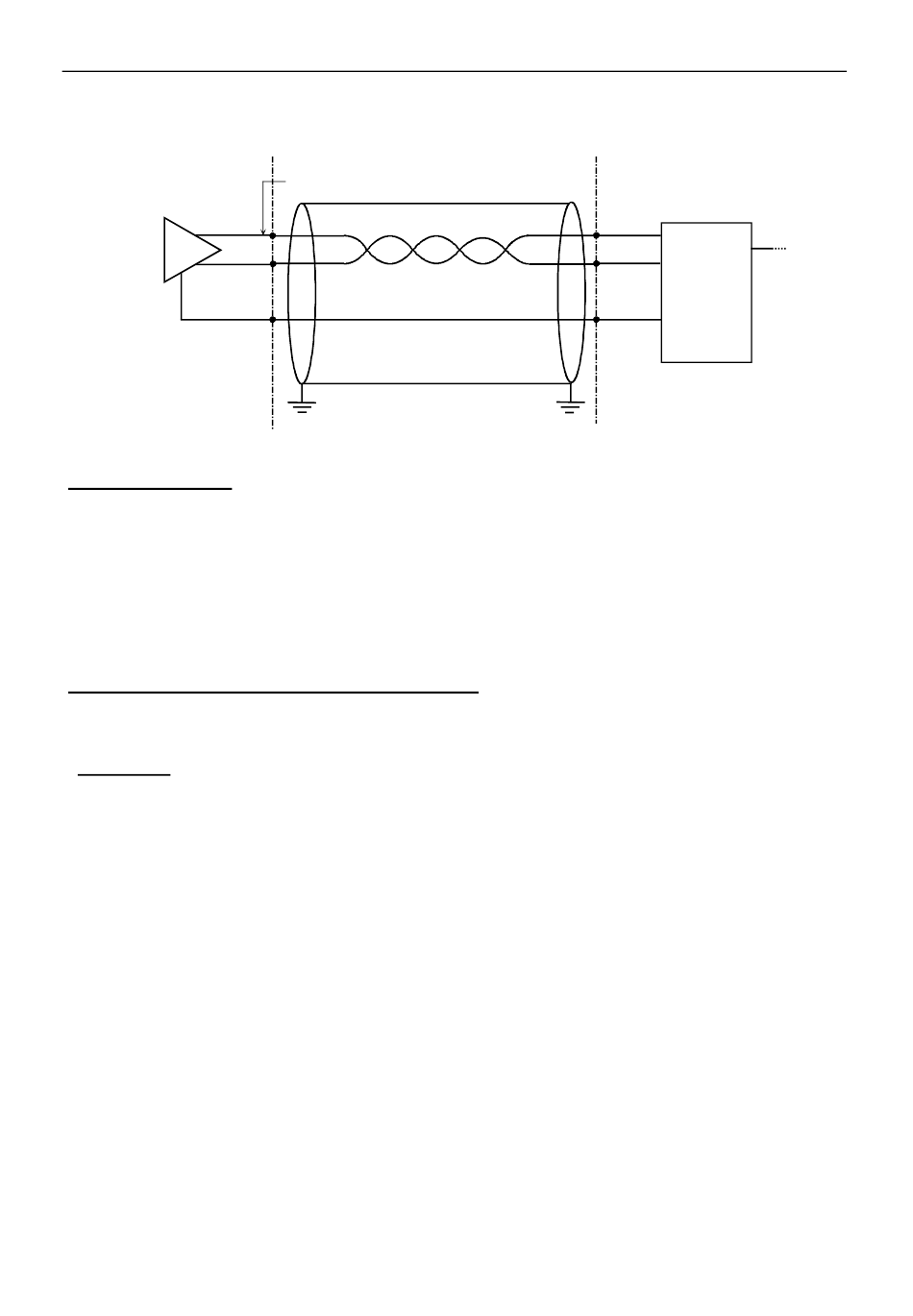

A, B, Top0
9
CONNECTION
PVD 3530 GB 01/2005
55
ENCODER
INTERFACE
0V
NUMERICAL
CONTROL
