DIGIVEX Little Drive Servoamplifier
5. AUTOMATIC CONTROL INPUT / OUTPUT
FUNCTIONS AND CHARACTERISTICS

5.1 Input / Output Characteristics

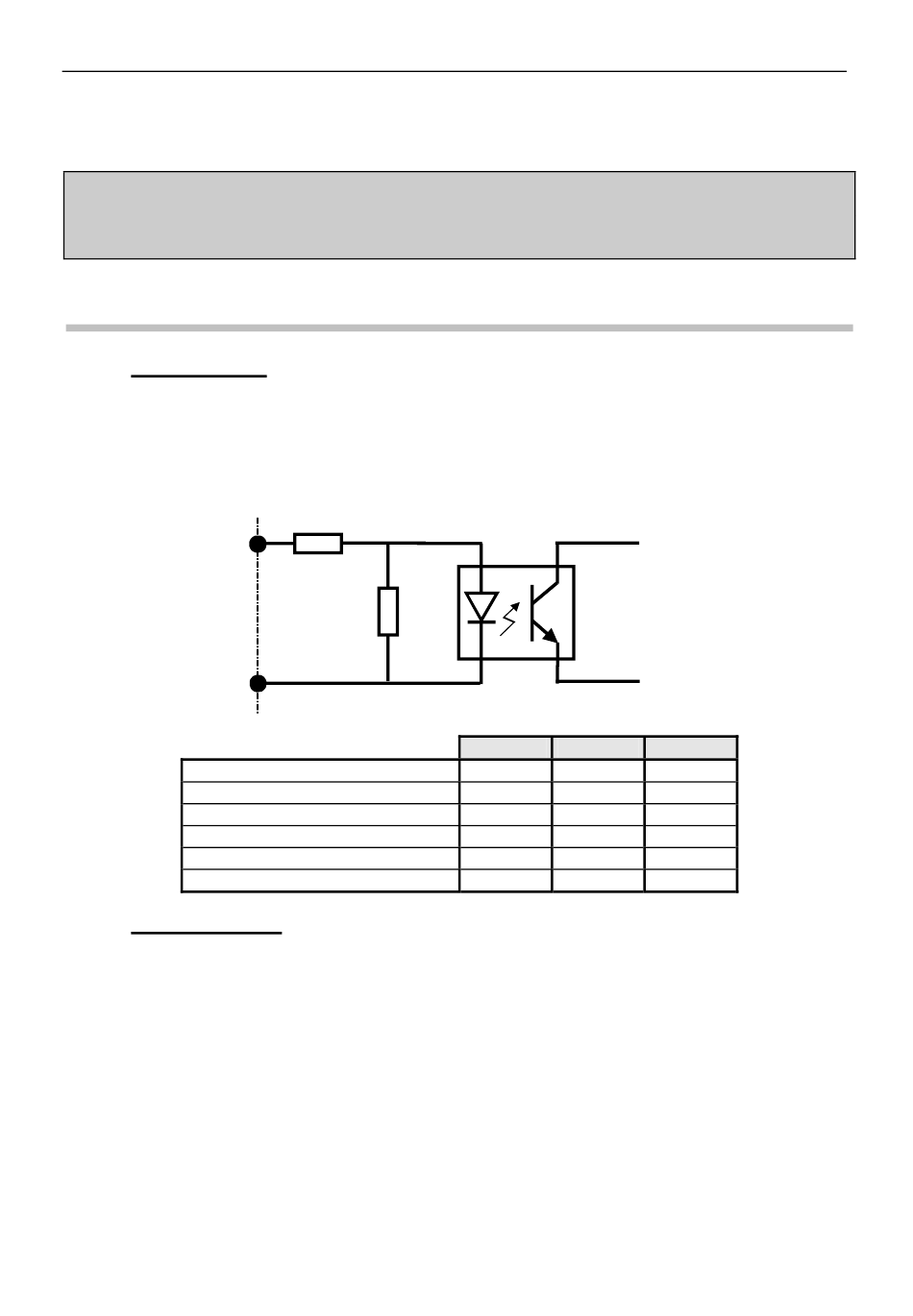

5.1.1 Logic inputs

24 V dc optocoupled inputs (isolation voltage 100 V)
type 1 inputs under IEC 1131-2
these inputs may be connected directly to PNP type outputs (no external load resistor required)
Level 0 input voltage
Level 1 input voltage
Level 0 input current
Level 1 input current
Ton response time (0 to 1)
Toff response time (1 to 0)

5.1.2 Logic outputs

The outputs are fed by an external 24V (24V terminal 13 and 0V terminal 25). The three 0V
outputs are linked to terminal 25.
Maximum authorised output current (level 1)
Residual current (level 0)
Response time
Voltage drop
This manual was downloaded on www.sdsdrives.com
+44 (0)117 938 1800 - info@sdsdrives.com
LOGIC INPUTS
8.25 K
1 K
: Negligible
51
PVD 3530 GB 01/2005
MINI TYPICAL
- 0V
15V 24V
- 0mA
1.7mA 2.8mA
- 1 ms
- 1 ms
: 50 mA
: 1 ms
: 2 V
MAXI
5V
30V
0.5mA
3.6mA
-
-
