DIGIVEX Little Drive Servoamplifier

6.3.2 internal variables

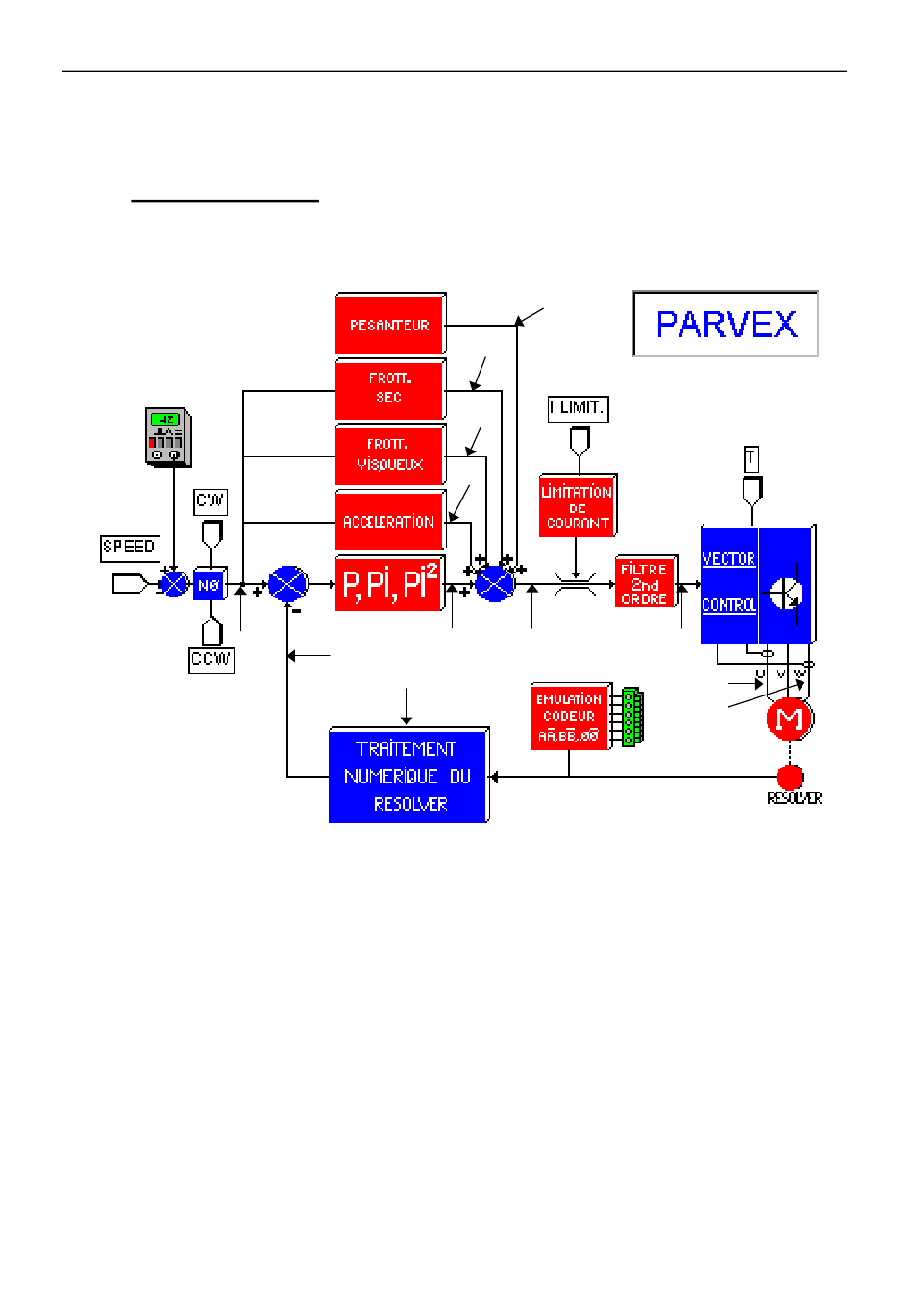

Accessible internal variables (via DIGIVEX PC software)
The following internal variables may be selected:
1
Reference
♦ 1
♦ 2
♦ 3
♦ 4
♦ 5
♦ 6
♦ 7
♦ 8
♦ 9
♦ 10
♦ 11
♦ 12
The 4 selected variables are chosen from the list of variables.
This manual was downloaded on www.sdsdrives.com
+44 (0)117 938 1800 - info@sdsdrives.com
6
3
2
10
Input set point in rpm
Speed measurement in rpm
2
P, PI, PI output in Amps
Sum in Amps
Current set point in Amps
Acceleration in ms
Viscous friction in Amps
Dry friction in Amps
Pesenteur in Amps
Position in degrees
Phase current U in Amps
Phase current W in Amps
65
PVD 3530 GB 01/2005
9
8
7
4 5
11
12
