DIGIVEX Little Drive Servoamplifier
PLUG 220065R1610 : power & earth: 0.14 - 1.5 mm². Brake & thermal: 0.14 - 1 mm²
PLUG 220065R1611 : power & earth: 0.75 - 2.5 mm². Brake & thermal: 0.14 - 1 mm²
FUNCTION
BRAKE +
BRAKE -
THERMAL
PROTECTION
THERMAL
PROTECTION
EARTH
U2
V2
W2
Holding brake connection
Brushless motors can be equipped with a specially sized brake to maintain the axis immobilized.
If
24 V ±10% dc voltage is applied across the brake terminals, the brake disc is free and the motor
can rotate.
The 24 V dc supply used for brake control must be regulated and filtered. The brake is to be
connected to terminals B2/6 and B2/7.
Thermal protection connection
The two terminals of the thermal sensor located in the motor terminal box are to be connected to
B2/4 and B2/5.
This manual was downloaded on www.sdsdrives.com
+44 (0)117 938 1800 - info@sdsdrives.com

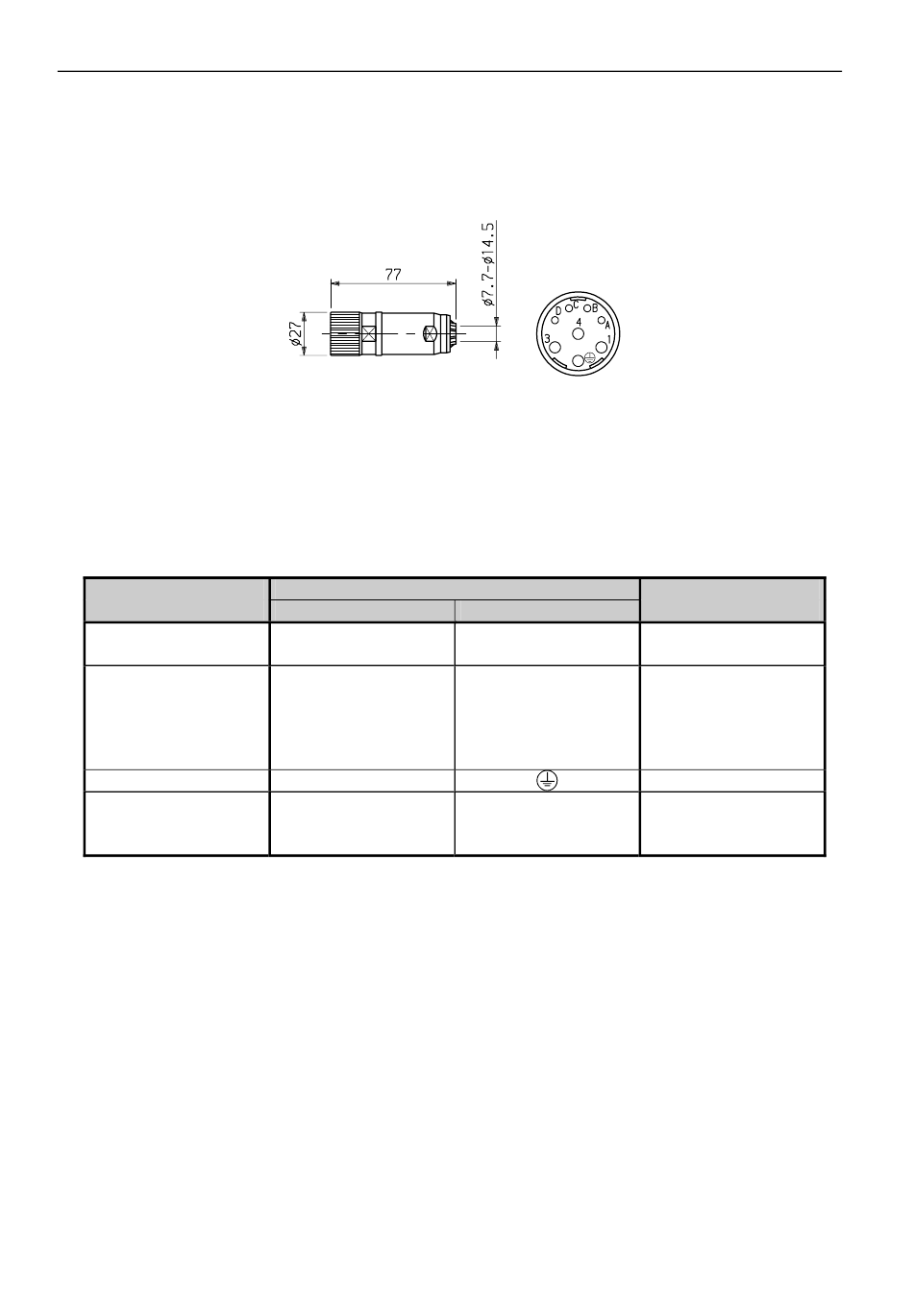

PLUG 220065R1610/1611
CABLE CROSS-SECTION FOR PLUGS
PLUG PINS
220065R1610/R1611 220065R3610/R3611
A
B
C
D
2
1
4
3
48
PVD 3530 GB 01/2005
CABLE COLOR
+ Green-red
Green-blue
-
1 Orange
2 Yellow
Yellow-Green
U Black
V White
W Red
