3. Connection of components

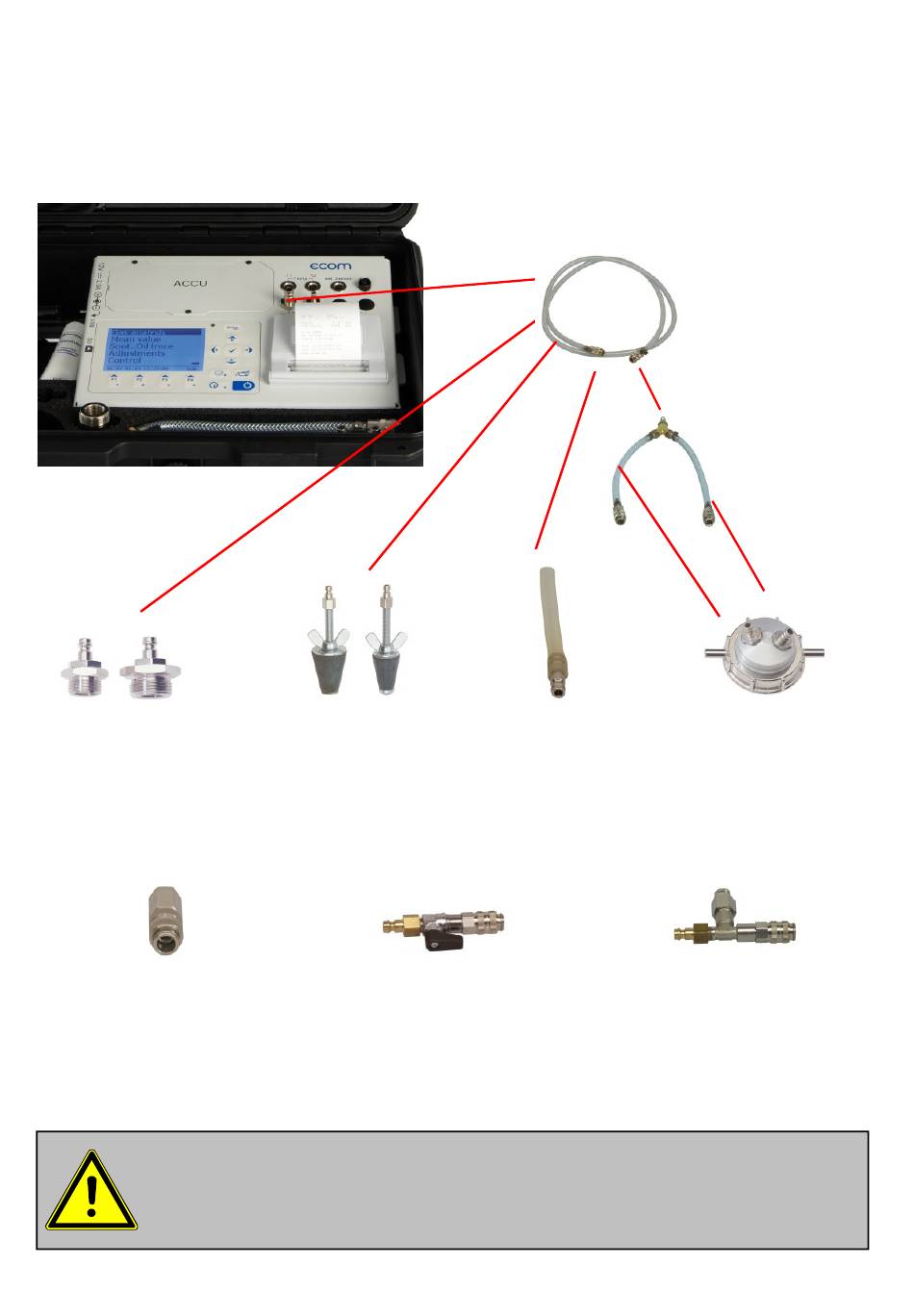

Please connect the components as shown on below plan.
ecom-DP3
High-pressure
test stopples
for connection
at screw con-
nections
Plug
to check the tightness
of the ecom-DP3
Never connect external devices for the pressure build-up
ecom-DP3
Conic test
stopples
for connection
at line ends
Ball valve
for connection of exter-
nal devices for pressure
build-up
without connecting piece with safety valve!
Connection hose
for connection on „ P high 1 + "
at the ecom-DP3
Hose
connector
for connection
at measuring
nipple of the
plant
Connecting piece with
safety valve
for connection of exter-
nal devices for pressure
build-up
Y-piece
for the con-
nection of 2
line sections
(f.e. with one-
pipe counter
cap)
One-pipe coun-
ter cap
for the connection
in place of the
gas meter
