5.3.2. Pressure test

The pressure test acc. to TRF at liquid gas pipes is
registered as a control pragram in the ecom-DP3.
Proceed as follows:
1. Scroll with the cursor keys <up/down> in the
menu "Liquid gas" to the menu point „Pressure
test". Activate the menu point with <Enter>.
2. Check if necessary the values of stabilisation time,
measurement time and test pressure with <F1>
(back with <ESC>).
3. Lock the gas pipe with a suitable adapter (test
stopple, high pressure stopple or one-pipe counter
cap).
4. Connect the components as described in
chapter 3.
5. Start the control program with <Enter> (the pump
of the instrument is building up the adjusted pres-
sure).
6. Wait for stabilisation time (if the pressure remains
in the range „test pressure - 10%" during stabilisation
time, so the measurement time will start). If neces-
sary the stabilisation time can be terminated with
<F1>.
7. Once the measurement time is over, the result is
displayed and can be printed with <Print>.
8. If the menu „Pressure test" is selected again, so
the result can be called up with <F4> (as long as the
ecom-DP3 is on) or a new measurement can be
started with <F1>.

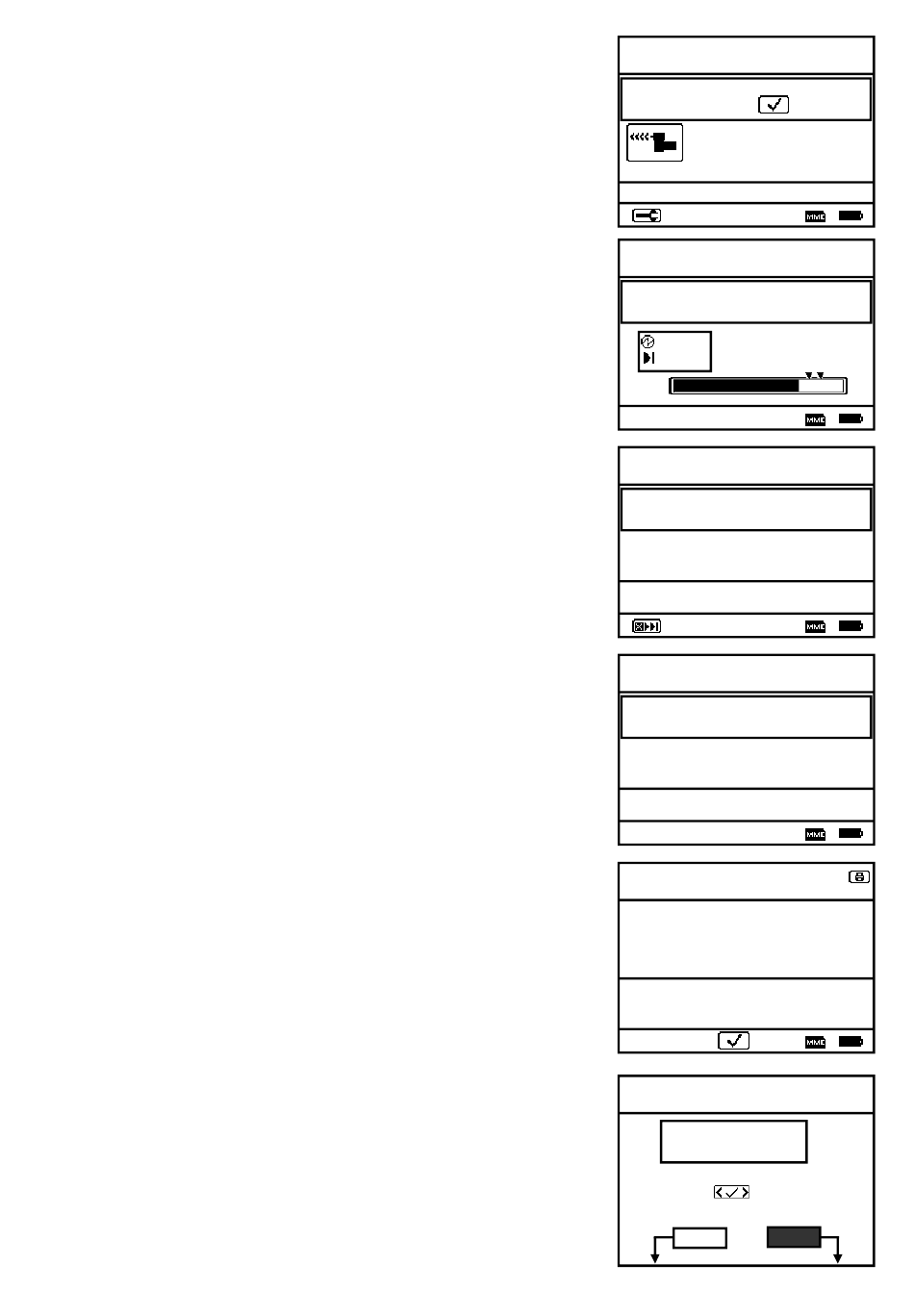

ecom-DP3
