5.6. Sewage (option)

The test of sewage installations acc. to DIN 1610 is
registered as a control pragram in the ecom-DP3.
Proceed as follows:
1. Scroll with the cursor keys <up/down> to the
menu point „Sewage". Activate the menu point with
<Enter>.
2. Check if necessary the values of stabilisation time,
measurement time and test pressure with <F1>
(back with <ESC>).
3. Connect the testing balloons as described.
4. Start the control program with <Enter> and built
up the adjusted pressure.
5. Wait for stabilisation time (if the pressure remains
in the range „test pressure +/- 10%" during stabilisa-
tion time, so the measurement time will start). If nec-
essary the stabilisation time can be terminated with
<F1>.
6. Once the measurement time is over, the result is
displayed and can be printed with <Print>.
7. If the menu „Sewage" is selected again, so the
result can be called up with <F4> (as long as the
ecom-DP3 is on) or a new measurement can be
started with <F1>.

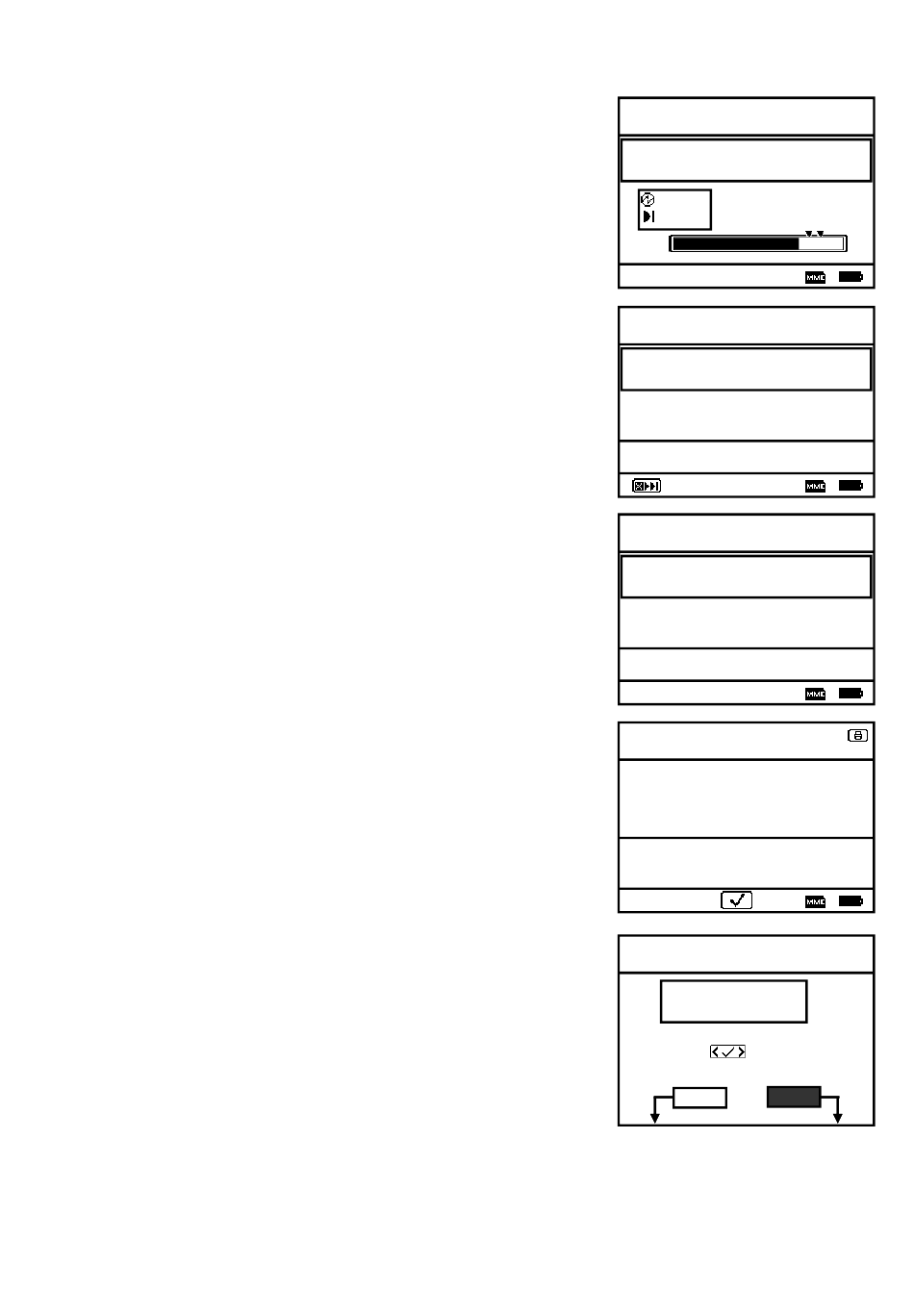

ecom-DP3
