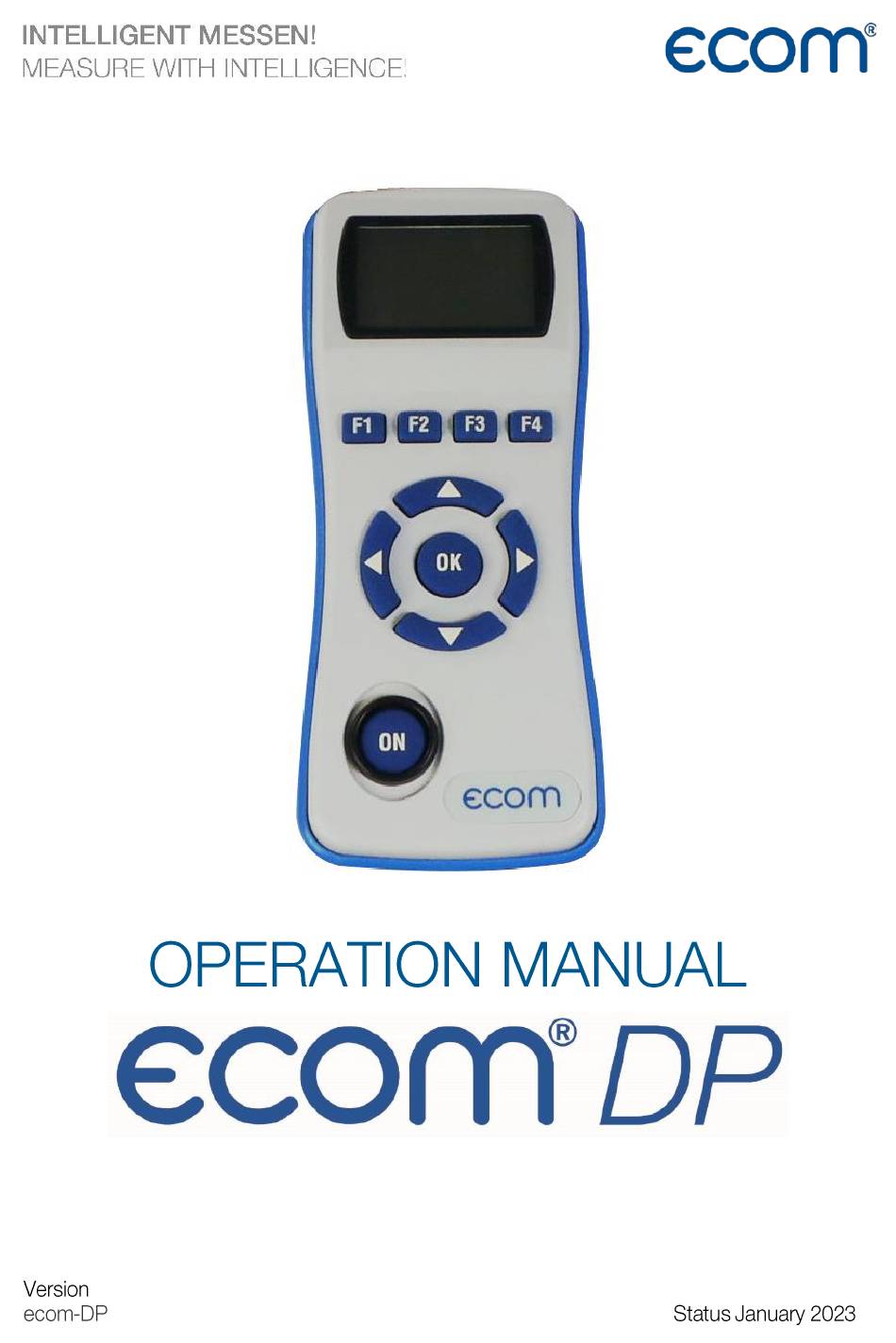

  • Page 1 English...

  • Page 2: Table Of Contents

    6.7. Auto OFF function ..................18 6.8. Contrast ....................18 6.9. Light ......................18 7. Sensor setup ..................... 19 8. View service information ................... 19 9. Data logger program „ecom-DP Logger“ ............20 10. Technical Data ecom-DP ................21 11. Maintenance tip ....................22...

  • Page 3: Design Ecom-Dp

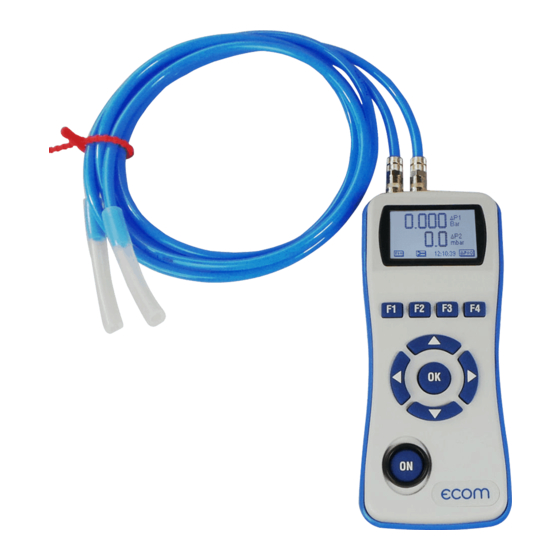

    1. Design ecom-DP IR interface (for IR printer) Connections Connections (Option) Pmax = 1500 hPa Pmax = 1500 hPa oder Pmax = 70 hPa Graphic display Function keys (current function is shown on display) Cursor keys Connection loa- ding unit...

  • Page 4: Initialisation

    (approx. 4 hours). The voltage of the batteries is monitored by the DP and will indicate a low battery condition by approx. 3.3 V by beeping and flashing a signal on the LCD display.

  • Page 5: Numerical Indication

    Press <ON> to switch on the ecom-DP. The instrument displays the following: Clock set Delete RAM Press OK to continue! - Press twice the <OK> key and the measurement value menu will be displayed. - Press <F2> (wrench symbol) to call up the menu „In- strument settings“.

  • Page 6: Zeroing The Internal Pressure Sensor

    - Press <F2> (DP->0) to activate the function for zero- point correction of the pressure sensors. - Press <F3> (DP1) to zero the value of the pressure sen- sor 1.

  • Page 7: Minimal / Maximal Measurement Values

    Basing on the previous function seizure, the functions „LUMI“ and „Light“ are displayed after pressing <F1>. The graphic display of the ecom-DP can be adjusted to different visual conditions. The contrast can be adjusted in 5 steps (each key pressing = one step) while pressing <F3>...

  • Page 8: Check Programs

    4. Check programs 1. Use only air or inert gas for check ! 2. Respect the „Technical Rules for Gas Installation“! Call up the pre-programmed measurement routines „Pre- liminary Check“, Main Check“ and „Usability Check“ in the menu <F3> (PROC). Parameters to each measurement routine can be ad- justed in the menu „Setup“.

  • Page 9: Pressure Check

    IR printer (option) thus pressing <F2> (Print). 8. If the menu „Pressure Check“ is selected again, so the result can be called up with <F1> (as long as the ecom- DP is on) or a new measurement can be started with <OK>.
  • Page 10 IR printer (option) thus pressing <F2> (Print). 8. If the menu „Preliminary Check“ is selected again, so the result can be called up with <F1> (as long as the ecom-DP is on) or a new measurement can be started with <OK>.

  • Page 11: Main Check

    IR printer (option) thus pressing <F2> (Print). 8. If the menu „Main Check“ is selected again, so the re- sult can be called up with <F1> (as long as the ecom-DP is on) or a new measurement can be started with <OK>.

  • Page 12: Usability Check

    The usability check acc. to DVGW – TRGI Process form G 624 by conduits is mem- orised as a measurement routine by the ecom-DP. The calculation of the leak rate happens automatically according to the following equation and corresponds here-...
  • Page 13 The ecom-DP will calculate the pipe volume in sec- tions basing on the diameter and the length for thread pipe acc. to DIN 2440 (middle heavy): - Press <F2> (CAL). - Use <UP/DOWN> to select the pipe diameter (1/2“...
  • Page 14 IR printer (option) pressing <F2> (Print). 13. If the menu „Usability Check“ is selected again, so the result can be called up with <F1> (as long as the ecom- DP is on) or a new measurement can be started with <OK>.

  • Page 15: Clock Set

    5. Clock set - Scroll with <UP/DOWN> until the menu point “Set clock”. - Press <OK> to activate. Date and time can be adjusted as follows: 1. Select with <RIGHT/LEFT> the position to be changed (corresponding field blinks). 2. Adjust the correct figures using <UP/DOWN>. 3.

  • Page 16: Pressure Auto -> 0 By Start

    (YES = printer ecom-P or NO = printer HP 82240B). - Confirm the modification with <OK>. 6.4. Battery loading The ecom-DP is able to work with accus and AC power (option): - Scroll with the cursor keys <UP/DOWN> until the menu point “Battery loading”.

  • Page 17: Pressure Unit

    Additionally the damping steps 3 - 7 enable the selection of a damping progression. This means: not progressive: by massive pressure changes the display does not react faster than by small pressure changes low progressive: by massive pressure changes the display reacts some- what faster than by small pressure changes.

  • Page 18: Auto Off Function

    6.7. Auto OFF function The ecom-DP is able to switch off automatically after 270 sec.: - Scroll with the cursor keys <UP/DOWN> until the menu point “Auto OFF function”. - Press <OK> to activate. - Use the cursor keys <RIGHT/LEFT> to modify the ad-...

  • Page 19: Sensor Setup

    - Use the cursor keys <UP/DOWN> to scroll thru until the menu point “Service”. - Press <OK> and an info window will be opened in which the address and phone number of the competent service centre as well as the instrument version (e.g. ECOM DP V3.1) will be displayed.

  • Page 20: Data Logger Program „Ecom-Dp Logger

    9. Data logger program „ecom-DP Logger“ The measured value process of the ecom-DP can be logged with the help of the data logger program „ecom-DP Logger “. The program can be loaded free of charge from the download area of the ecom homepage www.ecom.de. To transfer the data a USB cable (kind becomes.

  • Page 21: Technical Data Ecom-Dp

    10. Technical Data ecom-DP Power supply: - Battery: 3 x 1,5 V AA (Mignon) - or 3 x 1,2 V AA NiCd (nickel cadmium) - or 3 x 1,2 V AA NiMh (metal hydride) - Internal loading unit - Connection via 1.3 mm hollow plug - Loading current approx.

  • Page 22: Maintenance Tip

    11. Maintenance tip To secure the accuracy of your measuring instrument we recommend the annual check by an authorized ecom partner. In the case of strong demand (e.g. perma- nent several hours of measurement per day, rough conditions etc.) shorter intervals between checks should be selected - please contact your ecom partner.
  • Page 25 GmbH Am Großen Teich 2 D-58640 Iserlohn Info@ecom.de www.ecom.de Phone: +49 2371 945-5 Fax: +49 2371 40305 UK importer: DRM Technic Ltd. 15C Raleigh Hall Industrial Estate, GB-Stafford, Staffordshire, ST21 6JL sales@drmtechnic.com www.drmtechnic.com Phone: +44 (0) 1782 638 491...
