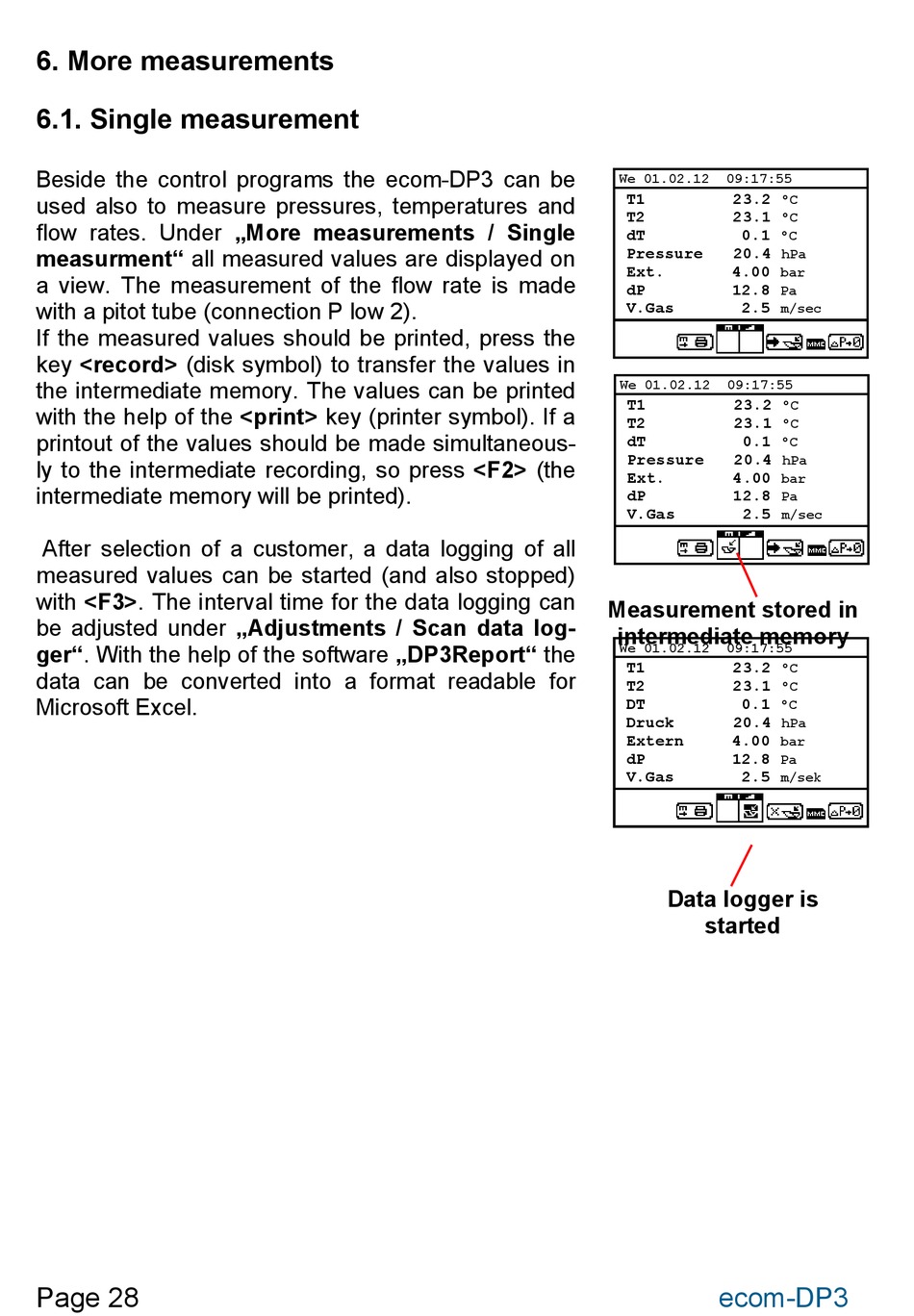

6. More measurements

6.1. Single measurement

Beside the control programs the ecom-DP3 can be
used also to measure pressures, temperatures and
flow rates. Under „More measurements / Single
measurment" all measured values are displayed on
a view. The measurement of the flow rate is made
with a pitot tube (connection P low 2).
If the measured values should be printed, press the
key <record> (disk symbol) to transfer the values in
the intermediate memory. The values can be printed
with the help of the <print> key (printer symbol). If a
printout of the values should be made simultaneous-
ly to the intermediate recording, so press <F2> (the
intermediate memory will be printed).
After selection of a customer, a data logging of all
measured values can be started (and also stopped)
with <F3>. The interval time for the data logging can
be adjusted under „Adjustments / Scan data log-
ger". With the help of the software „DP3Report" the
data can be converted into a format readable for
Microsoft Excel.
Page 28
We 01.02.12 09:17:55
T1 23.2
T2 23.1
dT 0.1
Pressure 20.4
Ext. 4.00
dP 12.8
V.Gas 2.5
We 01.02.12 09:17:55
T1 23.2
T2 23.1
dT 0.1
Pressure 20.4
Ext. 4.00
dP 12.8
V.Gas 2.5
Measurement stored in
intermediate memory
We 01.02.12 09:17:55
T1 23.2
T2 23.1
DT 0.1
Druck 20.4
Extern 4.00
dP 12.8
V.Gas 2.5
Data logger is
started
ecom-DP3
°C
°C
°C
hPa
bar
Pa
m/sec
°C
°C
°C
hPa
bar
Pa
m/sec
°C
°C
°C
hPa
bar
Pa
m/sek
