Present output frequency
The value of the present output frequency of the
frequency converter at any given time is transmitted
as a 16-bit word. The value is transmitted in the form
of whole numbers 0 -± 32767 (±200 %).
16384 (4000 Hex) corresponds to 100 %.
The output frequency has the following format:
0-16384 (4000 Hex) 0-100 % (Par. 201
Output frequency low limit - Par. 202 Output
frequency high limit).

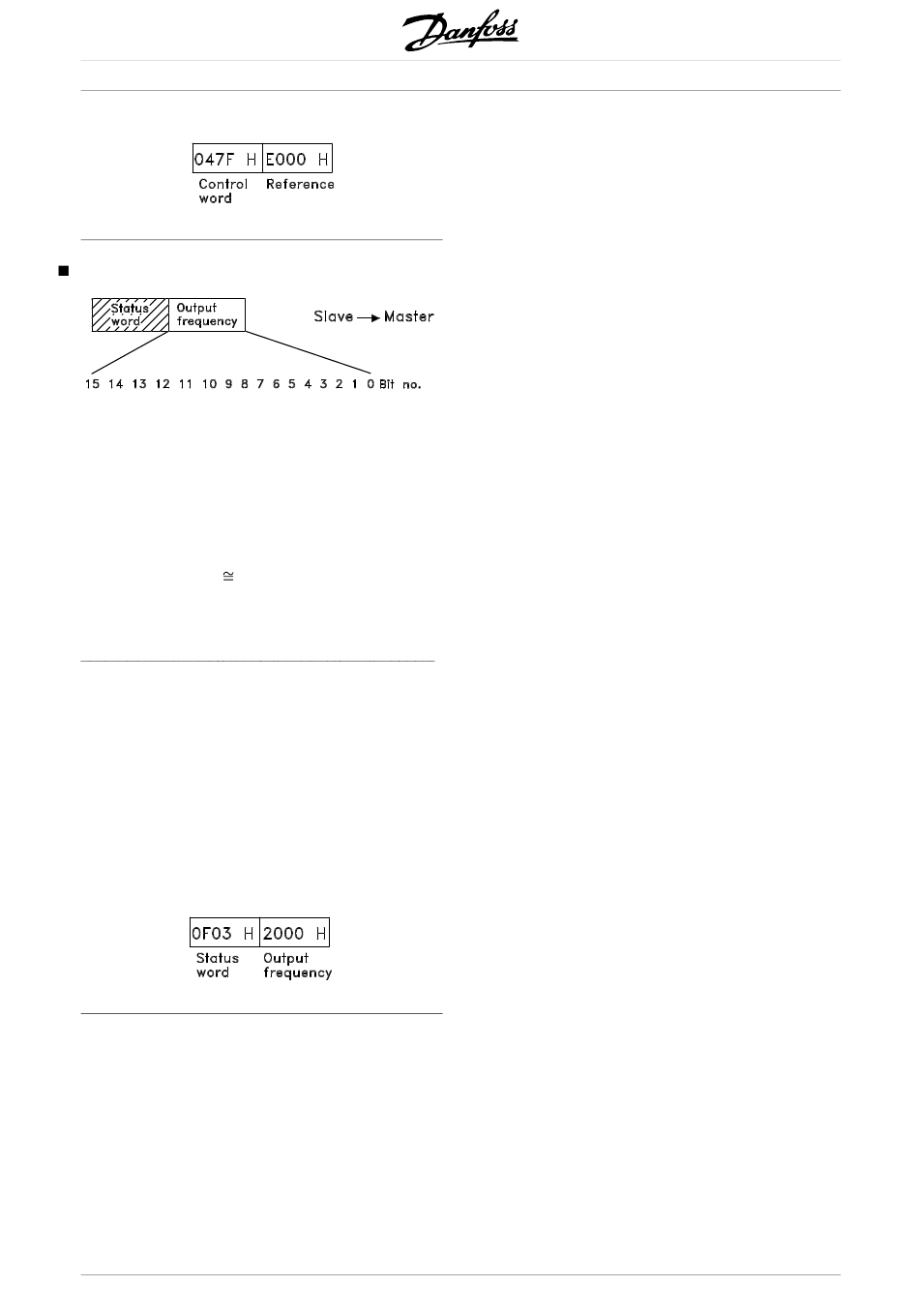

Example - Status word and present output frequency:
The master receives a status message from the
frequency converter saying that the present output
frequency is 50 % of the output frequency range.
Par. 201 Output frequency low limit =
Par. 202 Output frequency high limit =
Status word =
Output frequency =
158
0 Hz
50 Hz
0F03 Hex. Status
message
2000 Hex. 50 % of the
frequency range,
corresponding to 25 Hz.
®
