EVAL-AD7403FMCZ User Guide

HOW TO USE THE SOFTWARE

STARTING THE SOFTWARE

After the EVAL-AD7403FMCZ
are correctly connected to your PC, the evaluation software can
be started.
1. From the Start menu, select Programs > Analog Devices
> AD7403. The main window of the software then opens
(see Figure 15).
2. If the EVAL-AD7403FMCZ
connected to the USB port via the
the software is launched, a connectivity error displays (see
Figure 14). Connect the evaluation system to the USB port
of the PC and wait a few seconds, and then click Rescan and
follow the instructions.

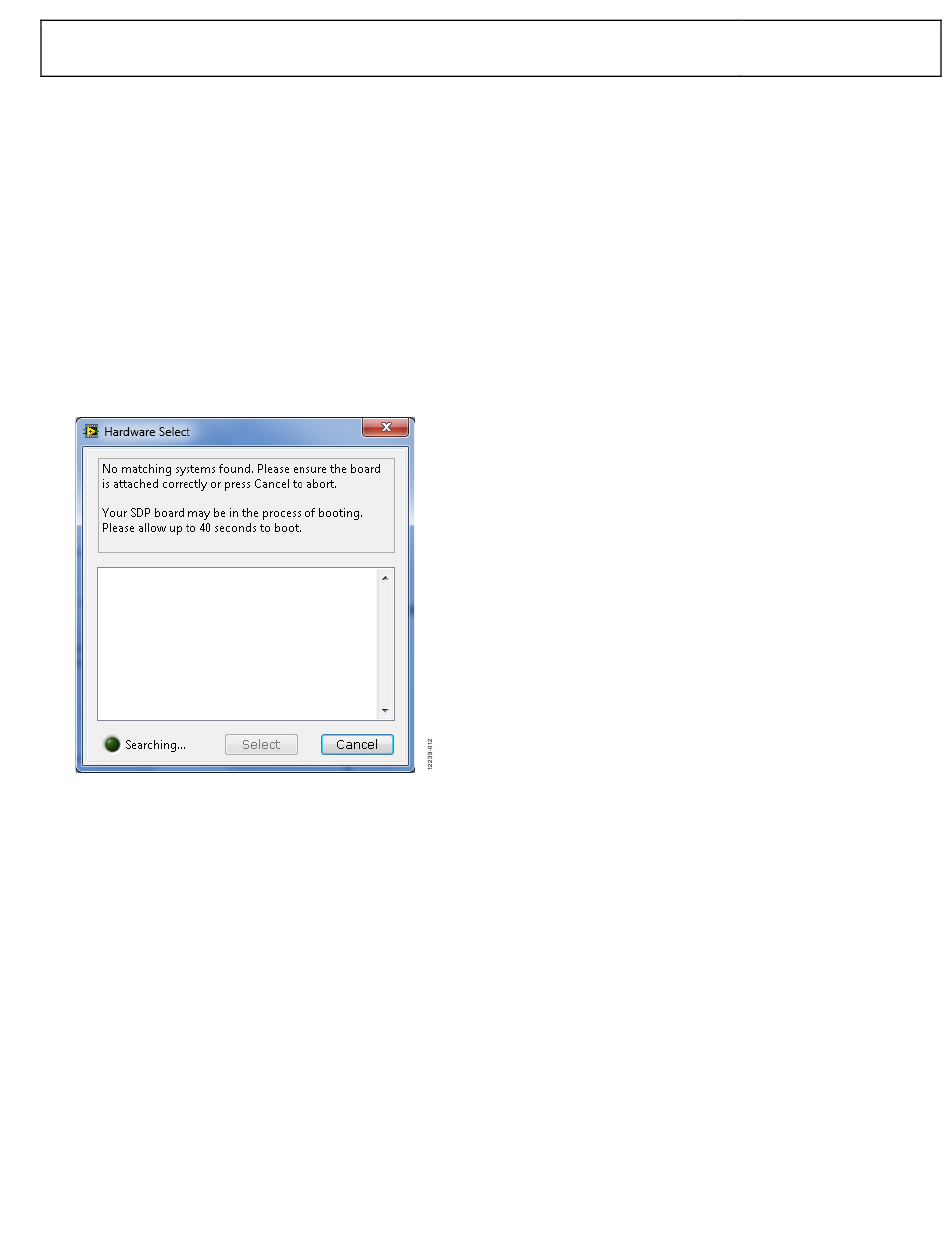

Figure 14. Connectivity Error Alert
and EVAL-SDP-CH1Z boards
evaluation board is not
EVAL-SDP-CH1Z when

SETTING UP THE SYSTEM FOR DATA CAPTURE

After completing the steps in the Software Installation Procedures
and Evaluation Board Setup Procedures sections, set up the system
for data capture as follows:
1. Select the appropriate FPGA Settings.
2. Click Single Capture or Continuous Capture.
Rev. 0 | Page 11 of 20
UG-683
