GENERATING A WAVEFORM ANALYSIS REPORT

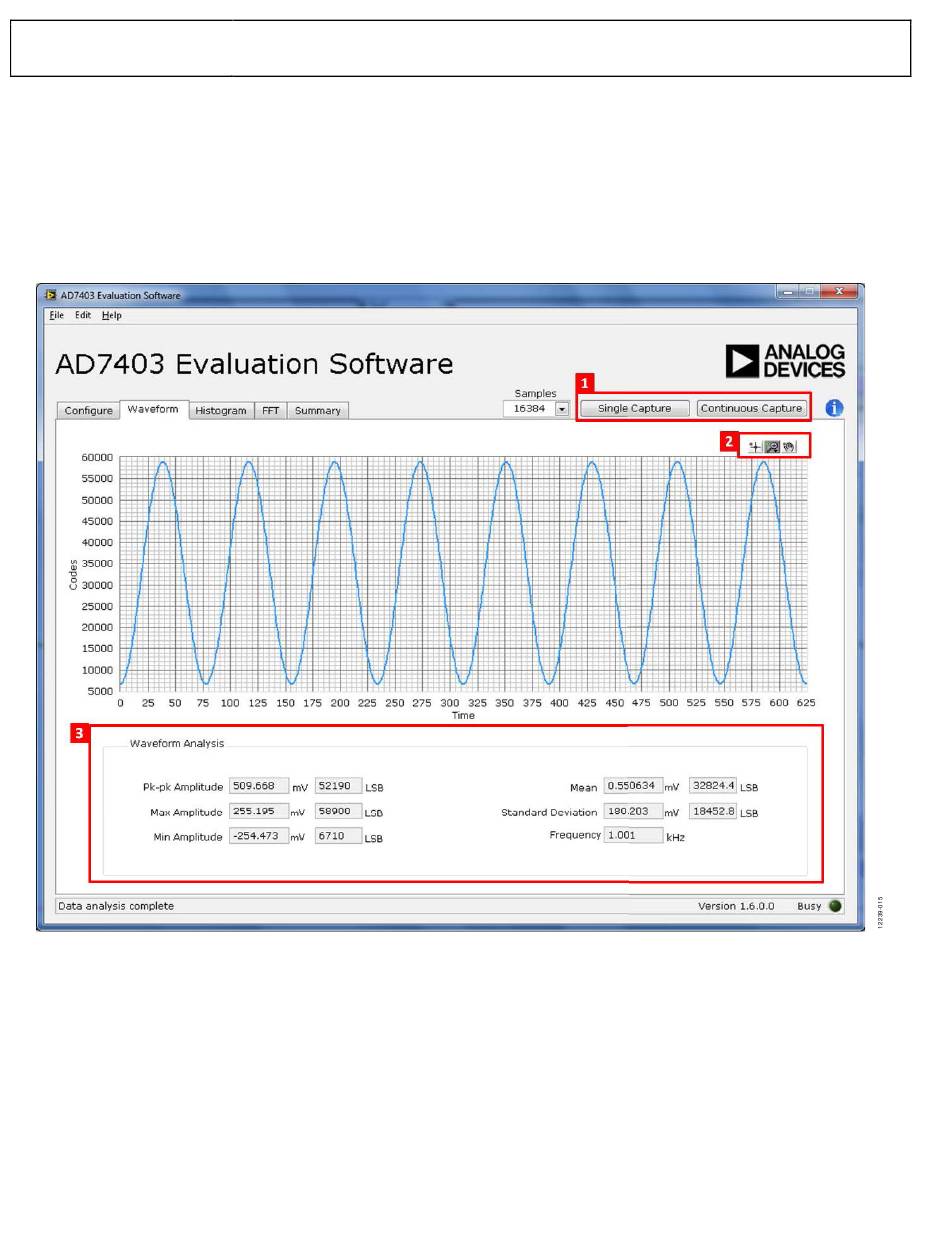

Figure 17 illustrates the tab used for a waveform capture.
Click Single Capture or Continuous Capture (labeled 1 in
Figure 17) to capture samples from the ADC and graph the
resulting waveform.
Graph controls (labeled 2 in Figure 17) are located above the
graph and can be used to pan and zoom into particular areas of
the graph (see the Graph Tools section and Figure 16 for more
information).
The Waveform Analysis area (labeled 3 in Figure 17) shows
statistics pertaining to the captured waveform, such as
maximum, minimum, and mean amplitudes and signal
frequency.
Figure 17. Waveform Capture Tab
