EVAL-AD7403FMCZ User Guide UG-683
GENERATING A SUMMARY OF THE WAVEFORM,
HISTOGRAM, AND FAST FOURIER TRANSFORM

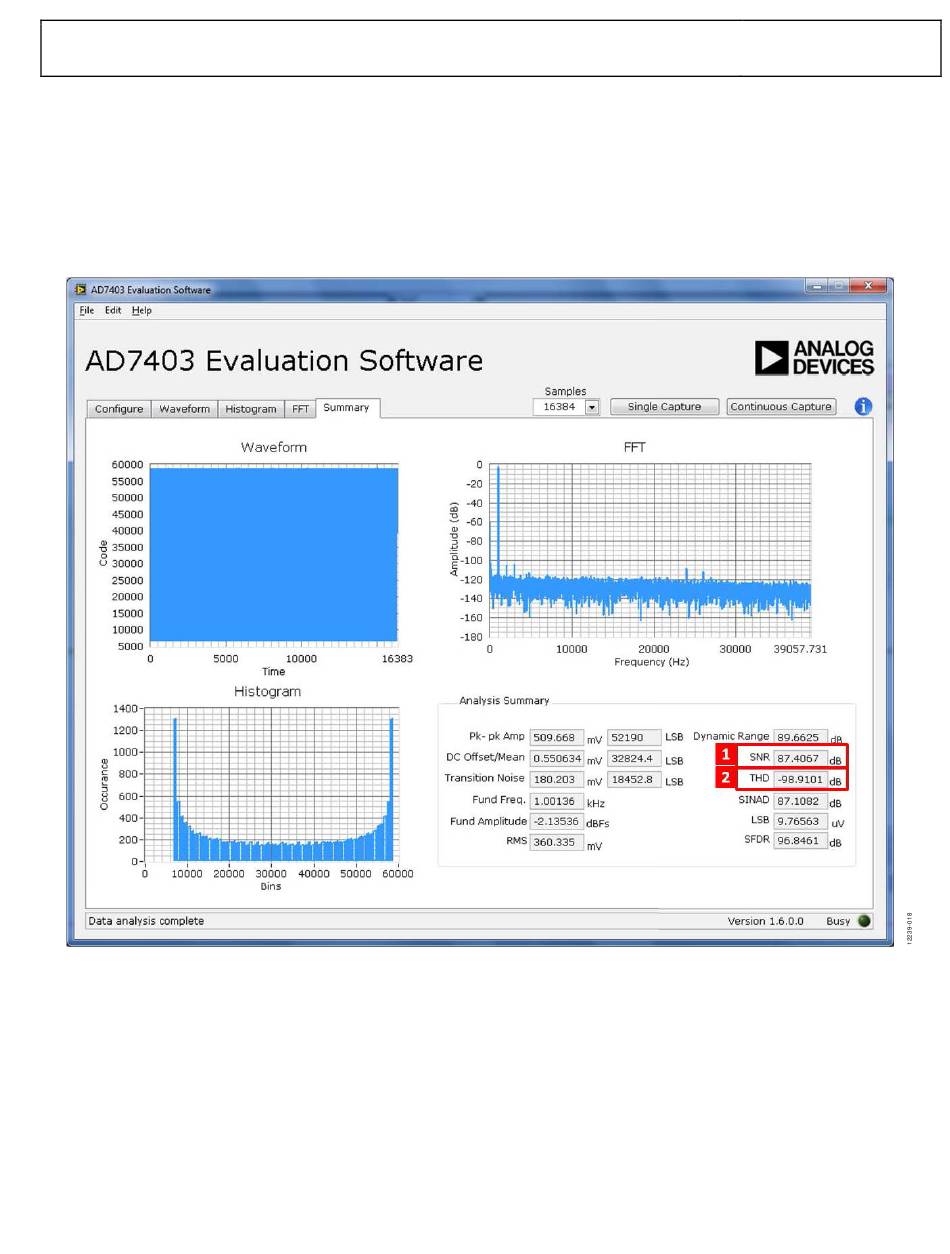

Figure 20 shows the Summary tab. This tab captures and displays
all of the information in one window with a synopsis of the
information, including key performance parameters, such as
SNR and THD (see the SNR and THD boxes, labeled 1 and 2,
respectively, in Figure 20).
Figure 20. Summary Tab
Rev. 0 | Page 17 of 20
