Evaluating the ad7403 16-bit, isolated sigma-delta adc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the

FEATURES

Full featured evaluation board for the
On-board power supplies
Standalone capability
System demonstration platform high speed (SDP-H1)
controller board compatible,
PC software for control and data analysis

EVALUATION KIT CONTENTS

EVAL-AD7403FMCZ
evaluation board
CD containing evaluation software for the

ADDITIONAL EQUIPMENT NEEDED

EVAL-SDP-CH1Z, includes a USB cable and 12 V wall wart
Signal source
PC running Windows XP SP3, Windows Vista, or Windows 7
with USB 2.0 port

ONLINE RESOURCES

Documents Needed
AD7403
data sheet
EVAL-AD7403FMCZ
user guide
Required Software
EVAL-AD7403FMCZ
evaluation software
FAQs
and
Troubleshooting
SIGNAL GENERATOR
ANALOG FILTER
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
AD7403
16-Bit, Isolated Sigma-Delta ADC
AD7403
EVAL-SDP-CH1Z
AD7403

TYPICAL SETUP

100V AC TO 240V AC

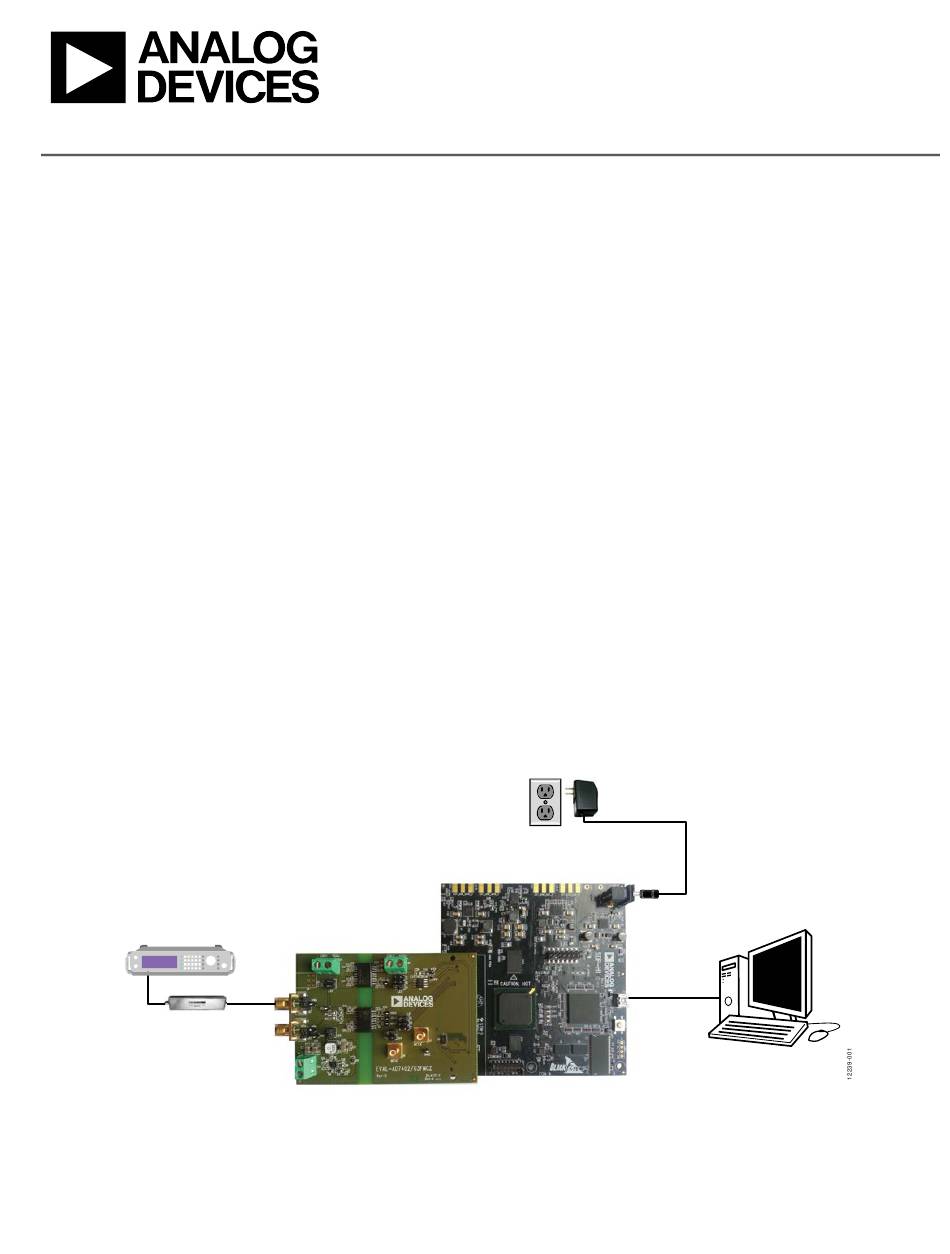

Figure 1. Typical Setup
(EVAL-AD7403FMCZ
Rev. 0 | Page 1 of 20
EVAL-AD7403FMCZ User Guide

GENERAL DESCRIPTION

The
EVAL-AD7403FMCZ
designed to allow the user to easily evaluate all features of the
AD7403
isolated analog-to-digital converter (ADC). The
evaluation board can be controlled by the
the FMCZ connector (J9). The SDP-H1 board
CH1Z) allows the evaluation board to be controlled through a
USB port of a PC using the evaluation board software, which is
available for download from the
page or from the installer CD included in the evaluation board kit.
On-board components include the following:
ADuM6000: isolated iCoupler® 5 kV, dc-to-dc converter
ADP2441: 36 V, 1 A, synchronous, step-down dc-to-dc regulator
ADP7104ARDZ-5.0: 5 V low noise LDO
WALL OUTLET
SWITCHING
POWER
47Hz TO 63Hz
SUPPLY
on Left and
EVAL-SDP-CH1Z
is a full featured evaluation board
EVAL-SDP-CH1Z
(EVAL-SDP-
EVAL-AD7403FMCZ
PC RUNNING EVALUALTION
BOARD SOFTWARE
on Right)
UG-683
via
product

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVAL-AD7403FMCZ and is the answer not in the manual?

Questions and answers

Related Manuals for Analog Devices EVAL-AD7403FMCZ

Summary of Contents for Analog Devices EVAL-AD7403FMCZ

  • Page 1: Features

    EVAL-AD7403FMCZ User Guide UG-683 One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com Evaluating the AD7403 16-Bit, Isolated Sigma-Delta ADC FEATURES GENERAL DESCRIPTION EVAL-AD7403FMCZ is a full featured evaluation board...

  • Page 2: Table Of Contents

    UG-683 EVAL-AD7403FMCZ User Guide TABLE OF CONTENTS Features ....................1 Setup Conditions ................9 Evaluation Kit Contents ..............1 Evaluation Board Circuitry ............10 Additional Equipment Needed ............1 Sockets/Connectors ..............10 Online Resources ................1 Test Points ................... 10 General Description ................. 1 How to Use the Software ...............

  • Page 3: Getting Started

    (The PC may need to be restarted barrel connector labeled +12V_VIN on the EVAL-SDP-CH1Z. after the installation) Launch the evaluation software from the Analog Devices Ensure that the various link options are configured as subfolder in the Programs menu.

  • Page 4: Software Installation Procedures

    UG-683 EVAL-AD7403FMCZ User Guide SOFTWARE INSTALLATION PROCEDURES Select the location to install the software, and then click Next. EVAL-AD7403FMCZ evaluation kit includes a CD containing evaluation software to be installed on your PC before you begin using the evaluation board.
  • Page 5 EVAL-AD7403FMCZ User Guide UG-683 A dialog box informs you when the evaluation software Select the location to install the drivers, and then click Install. installation is complete. Click Next to proceed with the installation of the drivers. Figure 9. EVAL-SDP-CH1Z Drivers Installation—Choose Install Location...

  • Page 6: Evaluation Board Setup Procedures

    System Tools, click Device Manager. correctly recognized when it is connected to the PC. Under ADI Development Tools, Analog Devices Connecting the Evaluation and SDP Boards to a PC SDP-H1 should appear (see Figure 12), indicating that...

  • Page 7: Evaluation Board Hardware

    1-bit data CH1Z is used to supply the V rail of the AD7403. stream with on-chip digital isolation based on Analog Devices, If the user wishes to supply V externally, an external power Inc., iCoupler technology. The...
  • Page 8 UG-683 EVAL-AD7403FMCZ User Guide HIGH VOLTAGE LOW VOLTAGE VIN+ MCLK AD7403 XILINX SPARTAN-6 MDAT FPGA VIN– VDD1 VDD2 VDD2 ADP2241 3.3V SUPPLY 12V SUPPLY ADuM6000 ADP7104-5.0 SDP-H1BOARD HIGH-V GND VDD1 GND Figure 13. EVAL-AD7403FMCZ Block Diagram Rev. 0 | Page 8 of 20...

  • Page 9: Link Configuration Options

    EVAL-AD7403FMCZ User Guide UG-683 LINK CONFIGURATION OPTIONS There are multiple link options that must be set correctly to SDP-H1 controlled mode to be used with the the EVAL-SDP-CH1Z select the appropriate operating setup before you begin using board, or the evaluation board can be used in standalone mode.

  • Page 10: Evaluation Board Circuitry

    UG-683 EVAL-AD7403FMCZ User Guide EVALUATION BOARD CIRCUITRY SOCKETS/CONNECTORS The default interface to this evaluation board is via the FMC connector, which connects the EVAL-AD7403FMCZ to the The connectors and sockets on the EVAL-AD7403FMCZ EVAL-SDP-CH1Z board. If the EVAL-AD7403FMCZ board is described in Table 3.

  • Page 11: How To Use The Software

    Evaluation Board Setup Procedures sections, set up the system be started. for data capture as follows: From the Start menu, select Programs > Analog Devices Select the appropriate FPGA Settings. > AD7403. The main window of the software then opens Click Single Capture or Continuous Capture.
  • Page 12 UG-683 EVAL-AD7403FMCZ User Guide Figure 15. Evaluation Software Main Window Rev. 0 | Page 12 of 20...

  • Page 13: Overview Of The Main Window

    The Help menu offers the following options: the cursor, zooming, and panning (see Figure 16) within the graphs displayed. • Analog Devices Website: open the Analog Devices website in the default browser. • Context Help: turn on context-sensitive help. •...

  • Page 14: Generating A Waveform Analysis Report

    UG-683 EVAL-AD7403FMCZ User Guide GENERATING A WAVEFORM ANALYSIS REPORT the graph (see the Graph Tools section and Figure 16 for more information). Figure 17 illustrates the tab used for a waveform capture. The Waveform Analysis area (labeled 3 in Figure 17) shows...

  • Page 15: Generating A Histogram Of The Adc Code Distribution

    EVAL-AD7403FMCZ User Guide UG-683 GENERATING A HISTOGRAM OF THE ADC CODE DC Input DISTRIBUTION A histogram test of dc input can be performed with or without an external source because the evaluation board can be The Histogram tab can be used to perform ac testing or, more configured with grounded inputs.

  • Page 16: Generating A Fast Fourier Transform Of Ac Characteristics

    UG-683 EVAL-AD7403FMCZ User Guide As in the histogram test, raw data is then captured and passed GENERATING A FAST FOURIER TRANSFORM OF to the PC, which performs the FFT and displays the resulting AC CHARACTERISTICS SNR, THD, and SINAD. Figure 19 shows the FFT tab. This feature tests the traditional Figure 19 displays the spectral analysis results of the captured data.

  • Page 17: Generating A Summary Of The Waveform, Histogram, And Fast Fourier Transform

    EVAL-AD7403FMCZ User Guide UG-683 GENERATING A SUMMARY OF THE WAVEFORM, HISTOGRAM, AND FAST FOURIER TRANSFORM Figure 20 shows the Summary tab. This tab captures and displays all of the information in one window with a synopsis of the information, including key performance parameters, such as SNR and THD (see the SNR and THD boxes, labeled 1 and 2, respectively, in Figure 20).

  • Page 18: Saving Files

    UG-683 EVAL-AD7403FMCZ User Guide SAVING FILES PRINTING A SCREENSHOT The software can save the current captured data for future To print a screenshot, from the File menu, select Print analysis. The software also has the ability to save or print a Screenshot.
  • Page 19 EVAL-AD7403FMCZ User Guide UG-683 NOTES Rev. 0 | Page 19 of 20...
