EVAL-AD7403FMCZ User Guide
7.
A dialog box informs you when the evaluation software
installation is complete. Click Next to proceed with the
installation of the drivers.

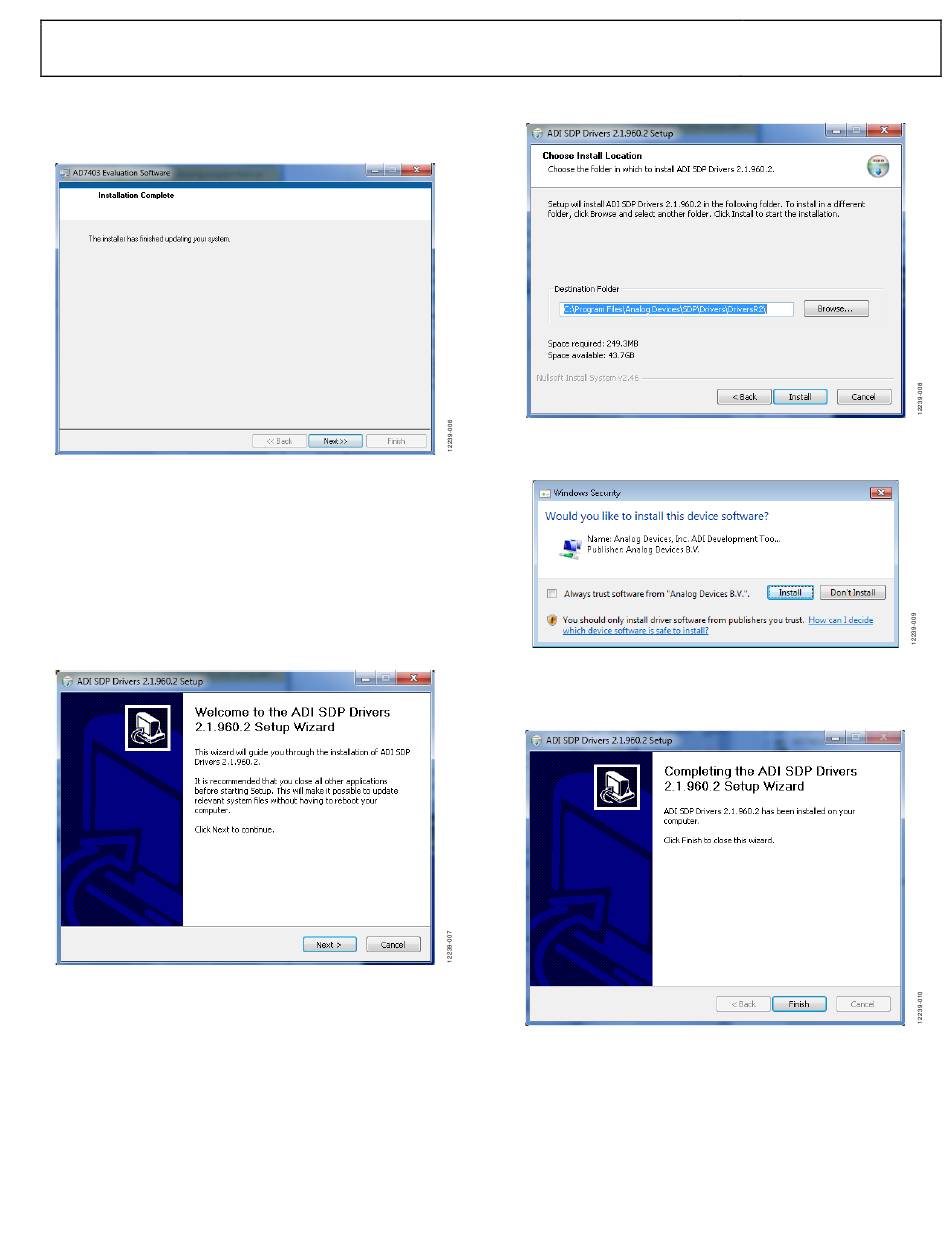

Figure 7. Evaluation Software Installation—Installation Complete
Installing the
EVAL-SDP-CH1Z
Platform Board Drivers
After the installation of the evaluation board software is complete,
the ADI SDP Drivers Setup wizard window opens for the
installation of the
EVAL-SDP-CH1Z
platform board drivers.
1.
Make sure that all other applications are closed, and then
click Next to begin the driver installation process.
Figure 8.
EVAL-SDP-CH1Z
System Demonstration
system demonstration
Drivers Installation—Setup Wizard
2.
Select the location to install the drivers, and then click Install.
Figure 9.
EVAL-SDP-CH1Z
3.
Click Install to proceed with the installation.
Figure 10.
EVAL-SDP-CH1Z
4.
To complete the drivers installation, click Finish, which
closes the installation wizard.
Figure 11.
Rev. 0 | Page 5 of 20
Drivers Installation—Choose Install Location
Drivers Installation—Windows Security
EVAL-SDP-CH1Z
Drivers Installation—Complete
UG-683
