GETTING STARTED

QUICK START STEPS

Follow these steps to quickly evaluate the
1. Install the evaluation software from the
page or from the CD included in the
evaluation board kit. Ensure that the
board is disconnected from the USB port of the PC while
installing the software. (The PC may need to be restarted
after the installation)
2. Ensure that the various link options are configured as
outlined in Table 2.
3. Connect the EVAL-SDP-CH1Z
board as shown in Figure 2.
Figure 2.
AD7403 ADC:
AD7403 product
EVAL-AD7403FMCZ
EVAL-SDP-CH1Z
board to the evaluation

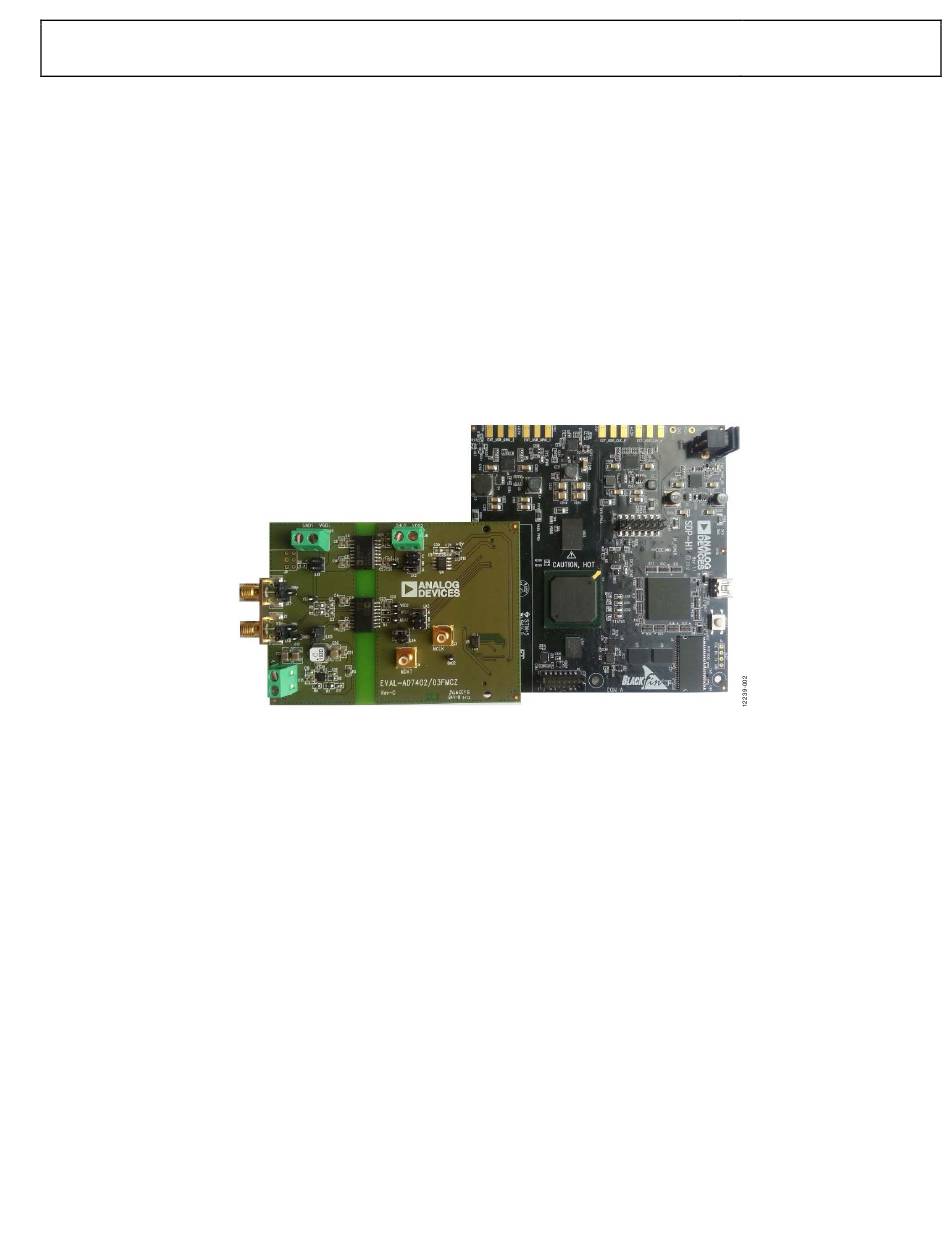

EVAL-AD7403FMCZ Evaluation Board (Left) Connected to the
Rev. 0 | Page 3 of 20
4. Connect the EVAL-SDP-CH1Z
USB cable. For Windows® XP, you may need to search for
the EVAL-SDP-CH1Z drivers. Choose to automatically
search for the drivers for the
prompted by the operating system.
5. Power up the EVAL-SDP-CH1Z
barrel jack (included with the EVAL-SDP-CH1Z) into the
barrel connector labeled +12V_VIN on the EVAL-SDP-CH1Z.
6. Launch the evaluation software from the Analog Devices
subfolder in the Programs menu.
7. Connect an input signal via the VIN+, J1 connector.
EVAL-SDP-CH1Z Board (Right)
UG-683
board to the PC via the
EVAL-SDP-CH1Z board if
by inserting the 12 V dc
