BLADEZ METRON GS Owner's Manual page 17

Home trainer
Hide thumbs

Advertisement

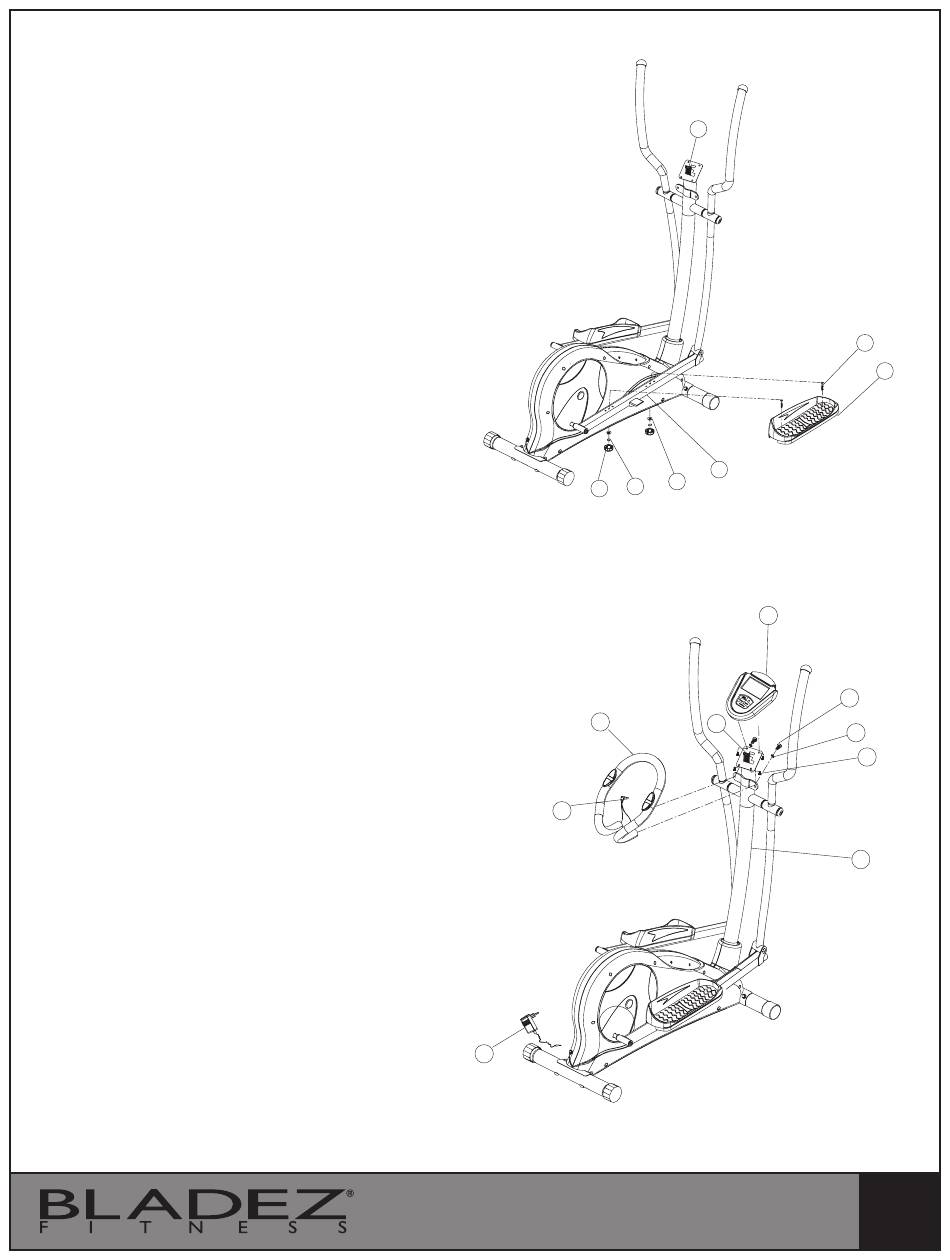

STEP 4
70
Place the Right Footplate (30R) to the
Right Footplate Bar (26R). Align with
the hole pattern and secure it with 2×M6
Carriage Bolts (29), 2×Washers (23),
2×Spring Washers (24) and 2×Knobs
(25). Do the same to the left Footplate.
29
30R
26R
23
24
25
1
STEP 5
Mount the Handle Bar (4) to the
10
Handlebar Post (73) and fasten it with
4
70
75
2×M8 Anti-loose Allen Bolts (10) and
76
2 Flat Washers (75). Then connect
the Upper Computer Cable (70) with
3
Computer (1) and secure it to the bracket
of Handlebar Post with 4 Screws (76).
73
Insert the plug from the AC adaptor to
the jack on the lower rear of the machine
and plug to the wall outlet. The machine
is ready for use.
