Note: Assembly of this machine should take one person about 45 minutes to properly assemble.

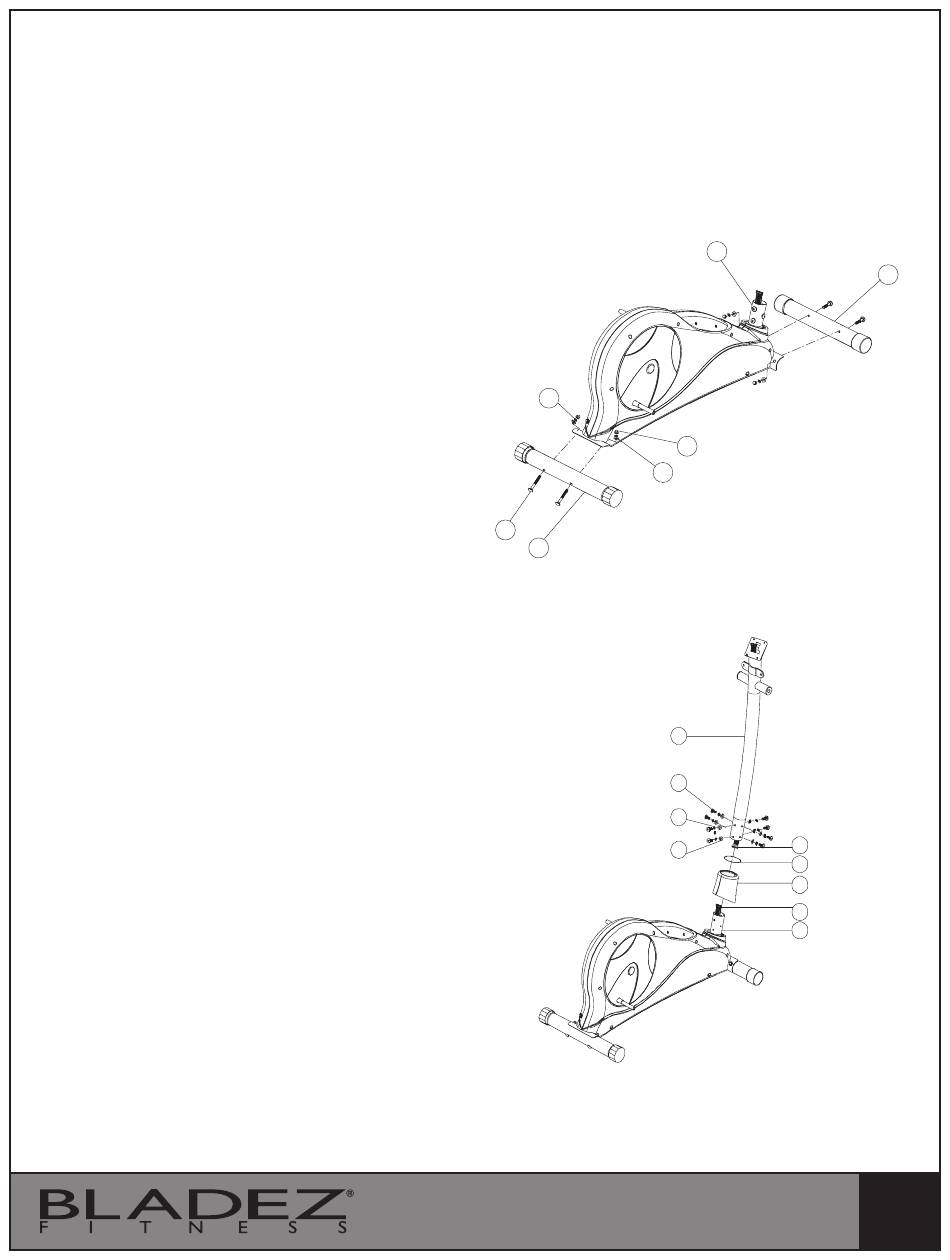

STEP 1
I. Attach the Front Stabilizer (65) onto
the Main Frame (46) using 2×M8
Carriage Bolts (43), 2×M8 Curved
Washers (71), 2×Spring Washers (11)
and 2×Cap Nuts (49).
II. Attach the Rear Stabilizer (44) onto
the Main Frame (46) with 2×Carriage
Bolts (43), 2×Curved Washers (71), 2×
Spring Washers (11) and 2 Cap Nuts
(49).
STEP 2
Slide the Plastic Cover (68) onto the
Handlebar Post (73). Connect the
Upper Computer Cable (70) with the
Lower Computer Cable (67). Attach
the Handlebar Post (73) onto the Main
Frame (46). Secure it with 8×Allen
Bolts (72), 8×Spring Washers (11) and
8×Curved Washers (71).
