Watch Window

PowerTools Pro contains a diagnostic utility called the Watch Window. The Watch Window can be used while PowerTools
Pro is running and the PC is online with the device. The Watch Window allows the user to monitor the status of all the desired
system parameters in one location. An example of the Watch Window is found in Figure 104 below.
To setup the Watch Window, select Tools\Watch Window from the PowerTools Pro menu. If not online with the device, the
Watch Window will be unavailable on the menu. Upon selecting Watch Window, the following Select Parameters window
will appear.

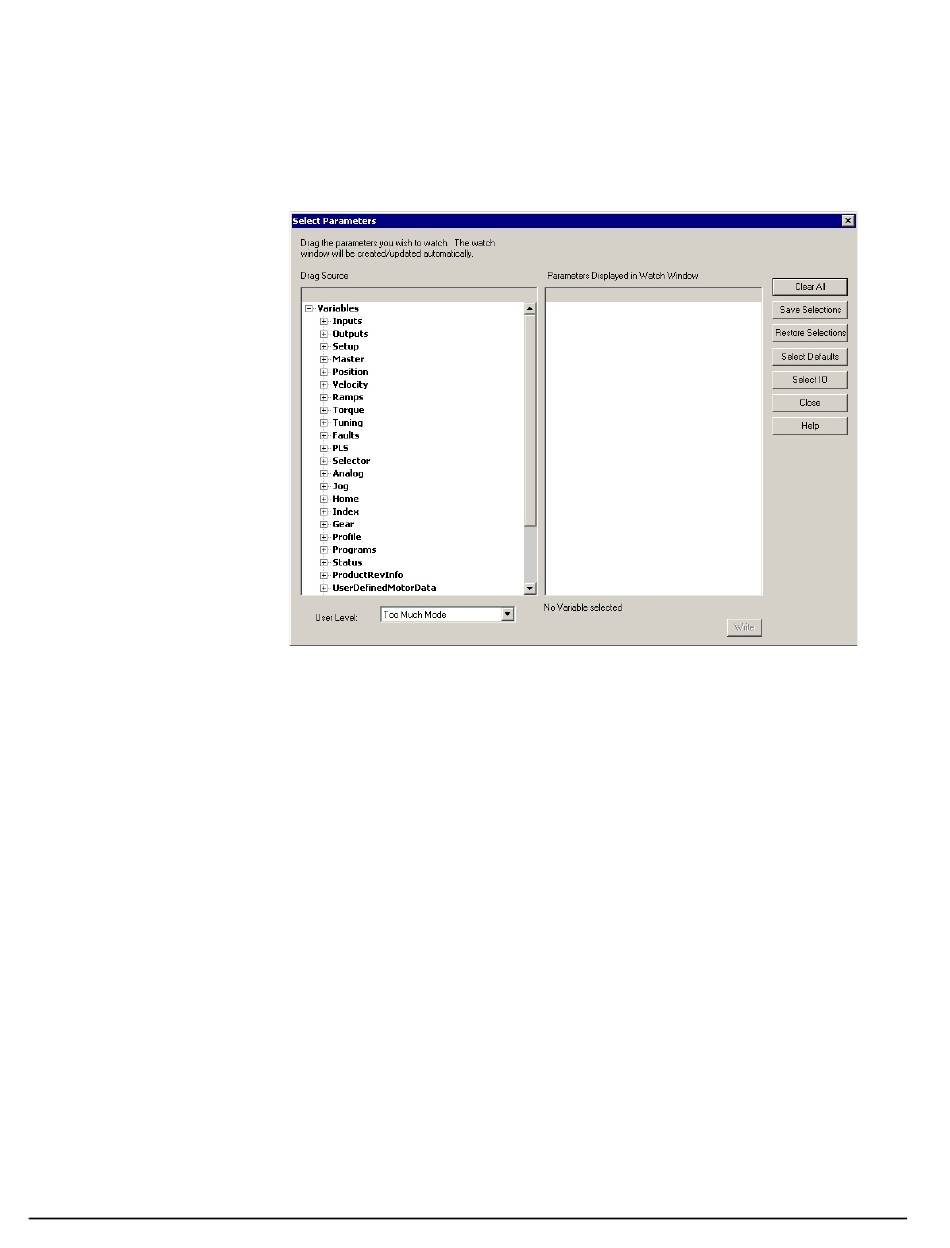

Figure 103: Watch Window - Select Parameters Window
The Select Parameters window as seen in Figure 103 allows the user to specify which parameters are to be seen in the Watch
Window. To select a parameter for the Watch Window, simple double-click on the parameter in the "Drag Source" window
or drag and drop the parameter from the "Drag Source" window on the left over to the "Parameters Displayed in Watch
Window" on the right and it will be added to the Watch Window.
