Summary of Contents for NovaStar MCTRL 4K
- Page 2 Welcome to use the product from Xi’an NovaStar Tech Co., Ltd. (hereinafter referred to as “Novastar”). It is our great pleasure to offer this manual to help you understand and use the product. We have striven for precision and reliability during the compilation of this manual, and the contents of this manual are subject to change at any time without further notice.
- Page 3 FCC Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 4: Table Of Contents
Table of Contents 1 Appearance 1 Front Panel ......................... 1 Rear Panel ........................... 1 2 Signal Connection 3 3 Dimensions 4 4 Operating Motion Instruction 4 5 Main Interface 5 6 Menu Operation 6 Step 1 Input Mode ......................6 Step 2 Input Resolution .................... -
Page 5: Front Panel

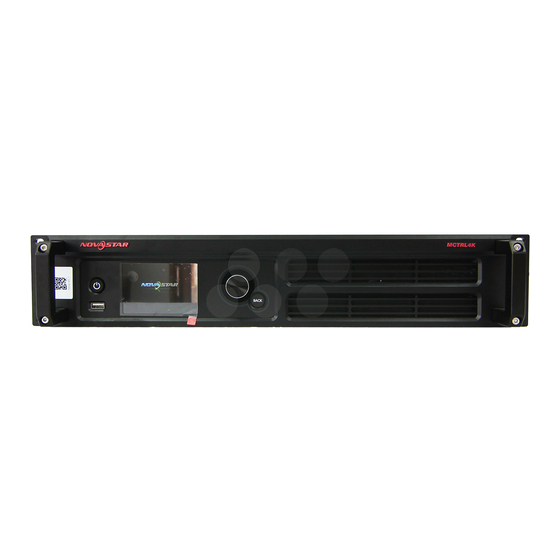

M C TRL 4 K U s e r ‘ s M a n u a l 1 Appearance Front Panel ① : Power button; Press the button for startup. After startup, press and hold the button for 4~5 seconds to power off. ②... - Page 6 MC TRL 4 K Us e r ‘ s M a n u a l Inputs DP 1.2 DP 1.2 interface HDMI 2.0 HDMI 2.0 interface DUAL DVI-D1/D2 Dual-link DVI interface Outputs 1~16 16-channel Neutrik Gigabit Ethernet outputs 4-channel optical fiber outputs OPT1 is corresponding to Ethernet port 1~8.
-
Page 7: Signal Connection
MC TRL 4 K U s e r ‘ s M a n u a l 2 Signal Connection Please refer to the previous chapter of interface intrduction and the figure below to connect requied hardwares.(Note: Please disconnect the power of the equipment while connecting signal.) If it is required to control multiple MCTRL4K units, please connect them according to the figure below. -
Page 8: Dimensions
MC TRL 4 K Us e r ‘ s M a n u a l 3 Dimensions (mm) 4 Operating Motion Instruction Knob: While in main interface, press the knob to enter menu interface; ƒ While in menu interface, rotate the knob to select menus and press the ƒ... -
Page 9: Main Interface
M C TRL 4 K U s e r ‘ s M a n u a l 5 Main Interface Switch on the controller and the main interface of its screen is shown as below: A: Input state of signal sources. Blue indicates it has signal while gray indicates no signal;... -
Page 10: Menu Operation
MCTRL4K is powerful and easy-to-use. In general, users can start a LED display and operate it normally through first four steps. Users also can set other options in the menu selectively for better display effects. Step 1 Input Mode MCTRL 4K supports two input modes: mosaic and muli-card Main Input Mode Input Settings... -
Page 11: Step 3 Quick Config
MC TRL 4 K U s e r ‘ s M a n u a l Choose an appropriate resolution from the standard presets, or move on to method II: Custom. II: Custom Rotate the knob to set custom width(increasing by even numbers), custom height and custom refresh rate. -
Page 12: Step 4 Brightness Adjustment
MC TRL 4 K Us e r ‘ s M a n u a l Notes: a) If n ports are used to Example: load, the number of cabinets If Ethernet port 1~7 are used to load, the number of loaded by the first (n-1) cabinets loaded by port 1~6 must be the same and ports must be:... -
Page 13: Screen Settings
MC TRL 4 K U s e r ‘ s M a n u a l Screen Settings Besides Quick Config, Advanced Config and Image Offset can be done as well in Screen Settings. Advanced Configuration Choose Yes to get into Advanced Config page. Choose Enable to set the loading capacity of each Ethernet port, which includes the settings of Cabinet Row QTY, Cabinet Col QTY, Start X(horizontal offset), Start Y(vertical offset) and Data Flow. -
Page 14: Advanced Settings
MC TRL 4 K Us e r ‘ s M a n u a l Advanced Settings Advanced Settings includes settings of multiple main functions as shown in the figure below. Following chapters will introduce the details of each function. Advance Settings Main Enable... - Page 15 MC TRL 4 K U s e r ‘ s M a n u a l 2 ) Import cabinet configuration files to MCTRL4K. Tip: After entering the Settings page of MCTRL4K, NovaLCT-Mars will automatically read the configuration files which have already existed in MCTRL4K. Users are able to modify the names and orders of these files or delete them.
-
Page 16: Communication Settings
Hardware Version Check the hardware version of this controller. Connect LCT-Mars through PC to upgrade the firmware program if new versions are released. Communication Settings Set communication mode and network parameters of MCTRL 4K. Network Settings Communication Settings Config IPv4... -
Page 17: Technical Specifications
MC TRL 4 K U s e r ‘ s M a n u a l 7 Technical Specifications Inputs Port Specifications DP1.2 standard Max. supported resolution:3840×2160@60Hz, Max. width and height are 3840(downward compatibility) HDMI HDMI-2.0 standard Max. supported resolution:3840×2160@60Hz Max. - Page 18 MC TRL 4 K Us e r ‘ s M a n u a l 8 FAQs and Precautions Solutions Check whether the power is correctly connected and switched on; Use test patterns to make sure whether the LED display is Nothing is displayed on correctly connected and can normally operate;...
