Developed by NovaStar, the MCTRL R5 is the first independent controller that
supports rotation function. With up to 3840×1080@60Hz loading capacity of a single
unit, it can support any custom resolution within this range as required, thus meeting
the on-site configuration requirements of extra-long or extra-large LED displays.
The MCTRL R5 supports HDMI, Dual Link DVI, SDI signal inputs, as well as 8
Neutrik Gigabit Ethernet ports, and 2 optical fiber outputs.
The distinctive and innovative design of the MCTRL R5 enables screen configuration
without PC, diverse image rotation effects, and amazing visual experience for users.
Note: The device must be powered off before connection.

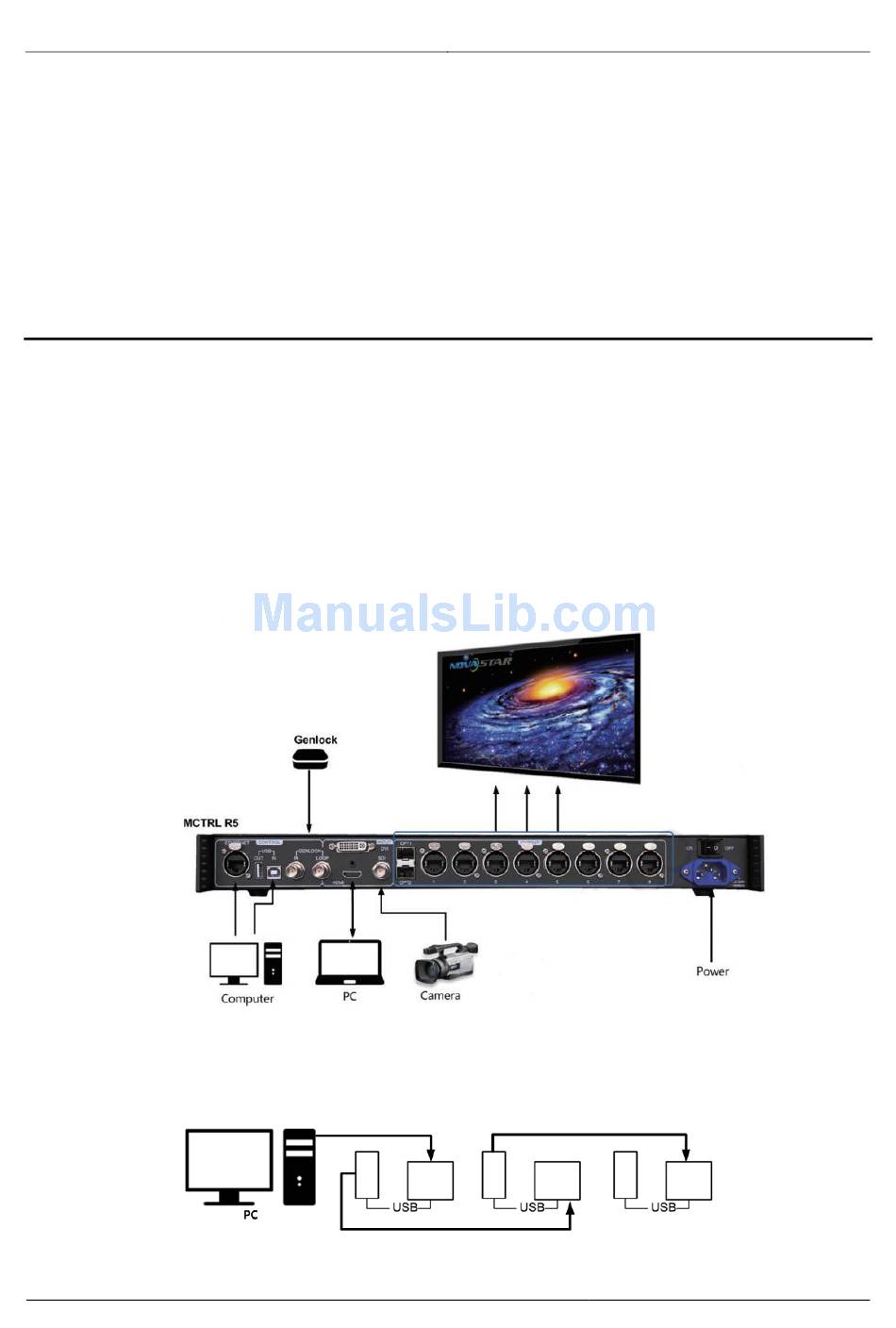

To control multiple MCTRL R5 units (10 units at most), please cascade them
according to the figure below.
