NovaStar MCTRL R5 User Manual page 9

Independent Controller MCRL R5
User Manual



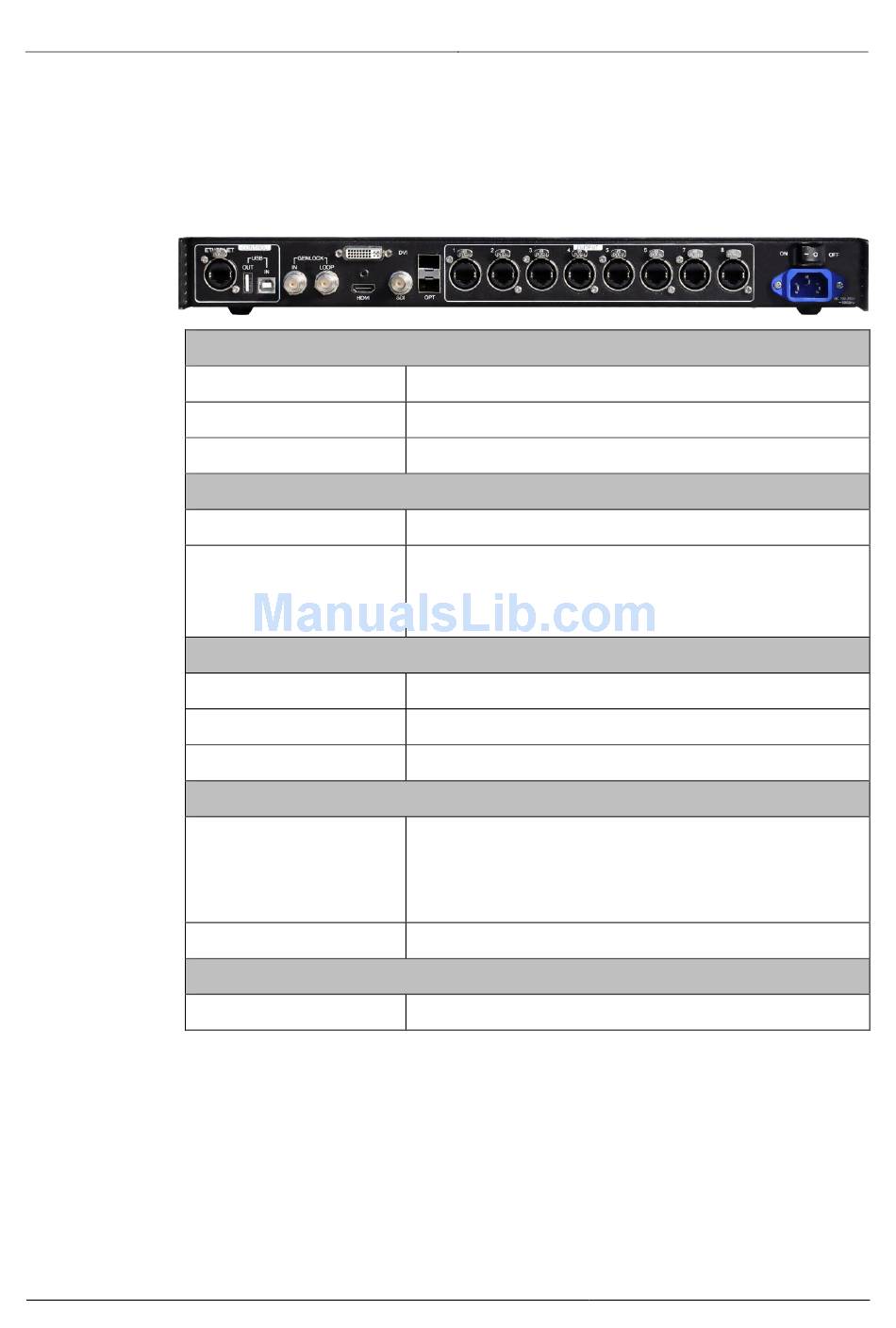

Rear Panel
Input
SDI
HDMI
DVI
Output
1–8
OPT1–2
Control
ETHERNET
USB IN
USB OUT
GENLOCK
IN
LOOP
Power Connector
AC 100-240 V–50/60 Hz
Note: Type-A USB port is prohibited from being connected to the upper computer
directly.
www.novastar.tech
On the main menu, rotating the knob selects a menu item or adjusts the
parameter, and pressing the knob confirms the selection or enters the submenu.
Holding down the knob and BACK button simultaneously for 5 seconds locks or
unlocks all the buttons.
6G-SDI connector
HDMI1.4 connector
DVI connector
8 × Neutrik (NE8FBH) Gigabit Ethernet outputs
2 × Fiber optical outputs
OPT1 corresponds to Ethernet ports 1–8.
OPT2 serves as the backup for OPT1.
For PC connection
Input port for cascading devices, or for PC connection
Output port for cascading devices
GENLOCK type: Blackburst.
It is the GENLOCK synchronization signal which is used
to ensure synchronization between the LED screen
display and external GENLOCK source.
GENLOCK loop output
AC power input
3 Hardware Structure
