Summary of Contents for NovaStar nova3D HD

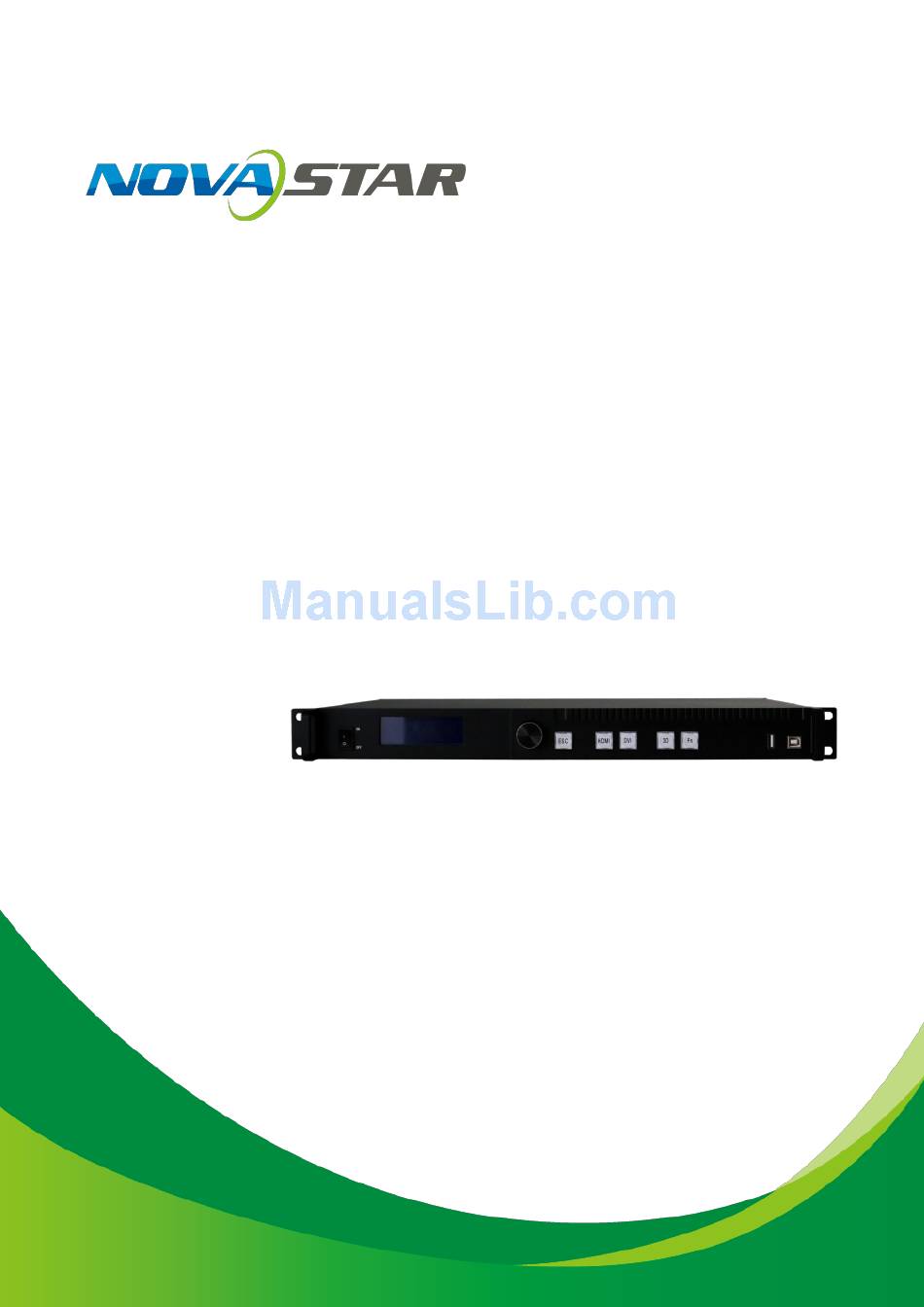

- Page 1 User's Manual 3D Video Controller Nova3D HD Rev 1.0.0 NO: NS160100010...
- Page 2 For your suggestions, we would like to express our thanks and make assessment as soon as possible for adoption. Copyright Copyright of this manual is reserved to Xi'an NovaStar Tech Co., Ltd. Any individual or organization is not allowed to copy or extract all or any part of the contents in any form without written approval.
-
Page 3: Fcc Caution
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. www.novastar-led.cn... -
Page 4: Table Of Contents
Loading the configuration file of cabinet ..........................15 8.4.5 3D Setting ....................................17 8.4.6 Fn Setting ....................................17 8.4.7 Return to home screen ................................18 8.4.8 Hardware version ..................................18 8.4.9 Save RV Card Parameters ................................. 18 8.4.10 Factory default ..................................18 www.novastar-led.cn... - Page 5 User Manual of 3D Video Controller ....................................19 ISPLAY ONTROL ................................... 19 OMMUNICATION SETTING ..................................... 20 ANGUAGE SETTING FIRMWARE UPDATE ..................................20 10. FREQUENTLY ASKED QUESTIONS AND CONSIDERATIONS ......................22 11. TECHNOLOGY SPECIFICATION ............................... 23 12. INSTALLATION DIMENSION ................................24 www.novastar-led.cn...
-
Page 6: Safety Statement
3D video can be output when 3D HD is connected to ordinary receiving card, which can generate an amazing visual effect. A single 3D HD controller supports the output of 1080P FHD 3D signal and cascade multiple 3D HD controllers can load 4K * 2K giant screen, which can bring a very stunning visual experience. www.novastar-led.cn... -

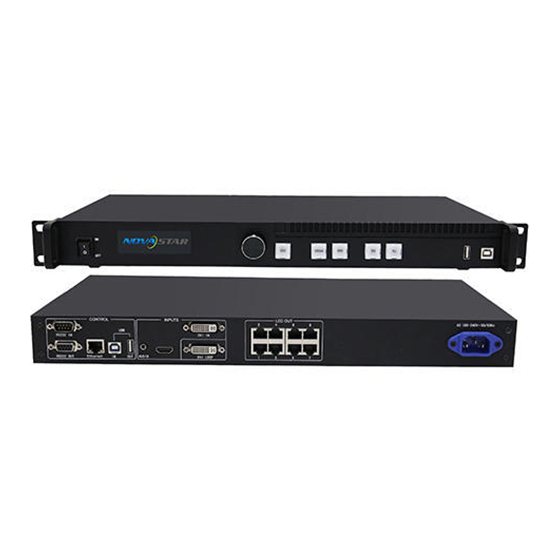

Page 7: Appearance
13) Formats all single-link DVI digital formats up to 165Mhz, Dual-link DVI formats up to 330Mhz; 14) It supports serial interface, USB and standard Ethernet communication; uniform control can be conducted for multi-computer cascade. 4. Appearance 4.1 Front panel ⁑ Power switch. ⁒ Operation screen; www.novastar-led.cn... -
Page 8: Rear Panel
DVI LOOP DVI loop output LED OUT1~8 8-channel LED outputs Control interface RS232 IN、OUT Serial Control (Cascade IN, OUT) Ethernet Network Control (Communication with PC, or Access Network) USB IN、OUT USB Control (Cascade IN, OUT) Power AC-100-240V-50/60HZ AC power interface www.novastar-led.cn... -
Page 9: Signal Connection
Fig. 5-1 3D HD Signal connection Tips: It's must to turn-off Power before signal connection. If it is required to control more than one sets of 3D HD, please connect them according to the following figure. Fig. 3-2 Multiple 3D HD cascade www.novastar-led.cn... -
Page 10: Operational Motion Instruction
It indicates that the right eye takes priority in 3D and can only be displayed after 3D function has been enabled; It indicates that current communication mode is serial control. As the priority of default serial control is the lowest, it is www.novastar-led.cn... -
Page 11: Operation
Enter the menu Advanced Setting to set the EDID resolution of video source. It can be achieved in two ways: Preset and Custom. Method 1: Preset Selection is made in preset resolution of the controller. If there is no preset resolution, you can select the second method and customize resolution. www.novastar-led.cn... -
Page 12: Step 2: Screen Setting
Return to the “Screen Setting” submenu. Rotate the button to switch to submenus of other options Step 2 respectively to perform configurations, as shown in the following figures: Step 3 according to the actual situation of the screen. Cabinet Row QTY and Cabinet Col QTY www.novastar-led.cn... - Page 13 During connection setting, you must ensure that network interface 1 is the start position of the whole connection. 3D HD can load 5.2 million (60Hz) pixels in maximum. The width of lateral load can reach to 3840 pixels in maximum; the longitudinal load can reach to 3840 pixels in maximum. www.novastar-led.cn...
-
Page 14: Step 3: Brightness
8.4.2 Image Quality Set Gamma, color temperature, red brightness, green brightness, blue brightness value of image as required. Save these parameters to receiving card by applying Save RV Card Parameters after proper adjustment. www.novastar-led.cn... -
Page 15: Master/Redundancy
3D HD is connected with PC, NovaLCT-Mars runs on PC and cabinet setting file saved previously is imported into controller. Save cabinet configuration file After receiving card is configured, click and save cabinet configuration file (.rcfg) to local file on www.novastar-led.cn... - Page 16 User Manual of 3D Video Controller Import the configuration file of cabinet into 3D HD. The operation steps are as follows: www.novastar-led.cn...
-
Page 17: Setting
2D video source. The setting status will be displayed in the home screen of LCD. 8.4.6 Fn Setting The functions of custom button include Black Out, Freeze and Test Pattren. Press Fn key to directly conduct function switch. www.novastar-led.cn... -
Page 18: Return To Home Screen
9 Firmware Update for detailed operations. 8.4.9 Save RV Card Parameters All current configurations of 3D HD are saved into receiving card and will not be lost after power fault. 8.4.10 Factory default 3D HD is reset to factory default setting. www.novastar-led.cn... -
Page 19: Display Control
USB and LAN are not connected at the same time. The network parameter can be set both manually and automatically. Ensure that IP address not conflict with other equipment when setting parameter manually. www.novastar-led.cn... -
Page 20: Language Setting
9. Firmware update 3D HD connect to a computer , and run NovaLCT-Mars on this computer, Login as an advanced user , the password is admin, then type in admin on keyboard to open the page for updating the hardware program. www.novastar-led.cn... - Page 21 User Manual of 3D Video Controller Current operation communication port The serial port under which the hardware program needs update. www.novastar-led.cn...
-
Page 22: Frequently Asked Questions And Considerations
1) The product can only support configuration without computer for rectangular screen composed of cabinets of same size and specification; special-shaped cabinet and screen Considerations need online configuration. 2) Non-computer operation and online operation cannot be conducted for the same screen. www.novastar-led.cn... -
Page 23: Technology Specification
1920x1080@60Hz, 1920x1200@60Hz, 2560x1600@60Hz, 3840x1080@60Hz, 3840x2160@30Hz Output index Interface Number Resolution specification input loop Correspond with DVI input DVILOOP Specification for complete machine Input Power AC 100-240V, 50/60Hz Overall Power Consumption Operating Temperature -20~60℃ Size 482.5×271.3×44.7 mm Weight 2.55 Kg www.novastar-led.cn... -
Page 24: Installation Dimension
User Manual of 3D Video Controller 12. Installation dimension Fig. 12-1 3DHD dimension (unit: mm) www.novastar-led.cn...
