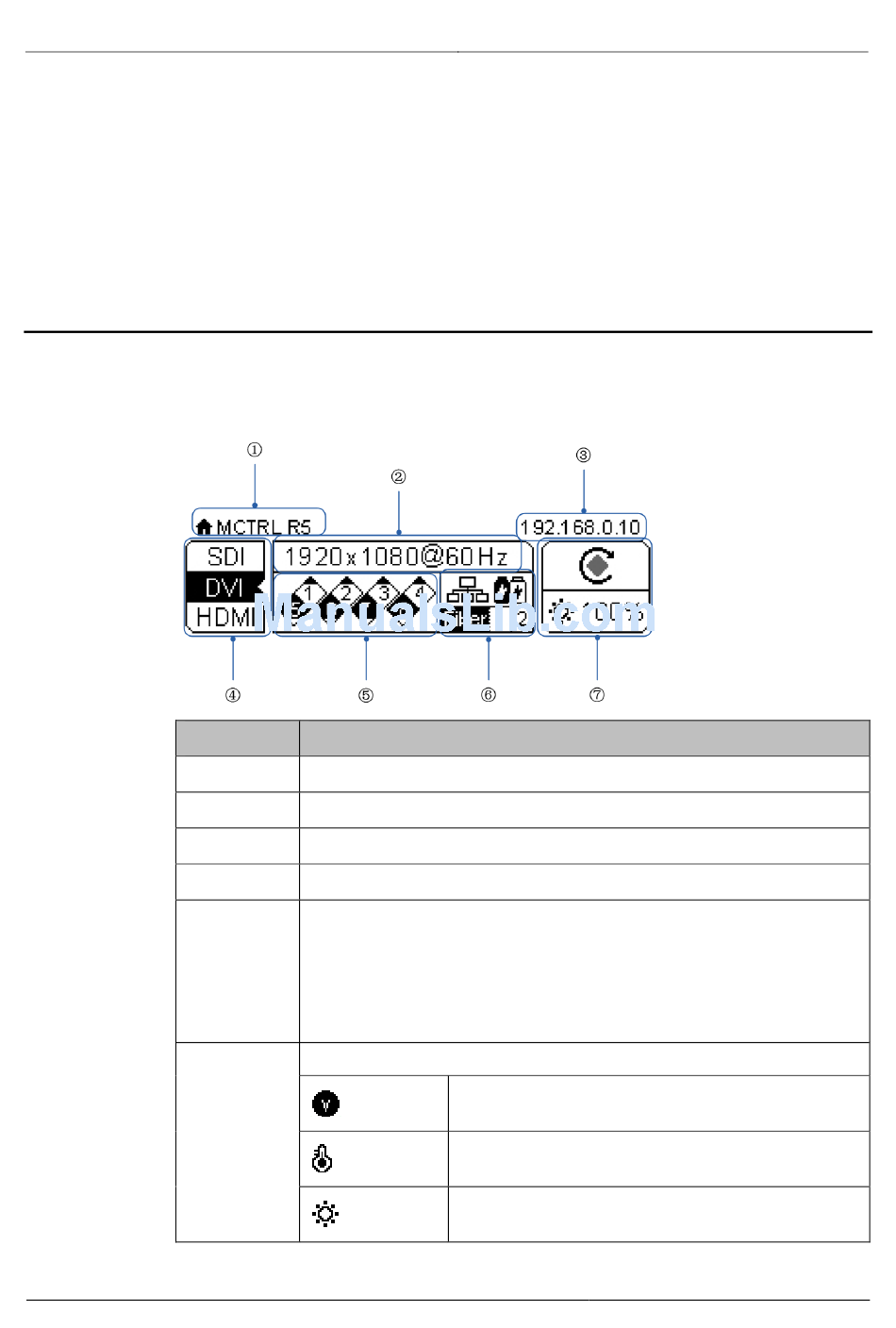

After the MCTRL R5 is powered on, the home screen is shown in the figure below.
No.
①
②
③
④
⑤
⑥
www.novastar.tech
Description
Name of the device
Resolution and frame rate of the current input source.
IP address
Video connection status, types of video sources supported
Ethernet ports connection status:
 Black indicates the port connection is valid and in control status.

White indicates the port is disconnected or the connection is invalid.
 Upper corner mark indicates the port connection is valid and in
redundant status.
Operating status description:
Power voltage of the motherboard
Temperature inside the device
Screen brightness
