NovaStar MCTRL R5 User Manual

Led wall rotating controller
Hide thumbs Also See for MCTRL R5:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

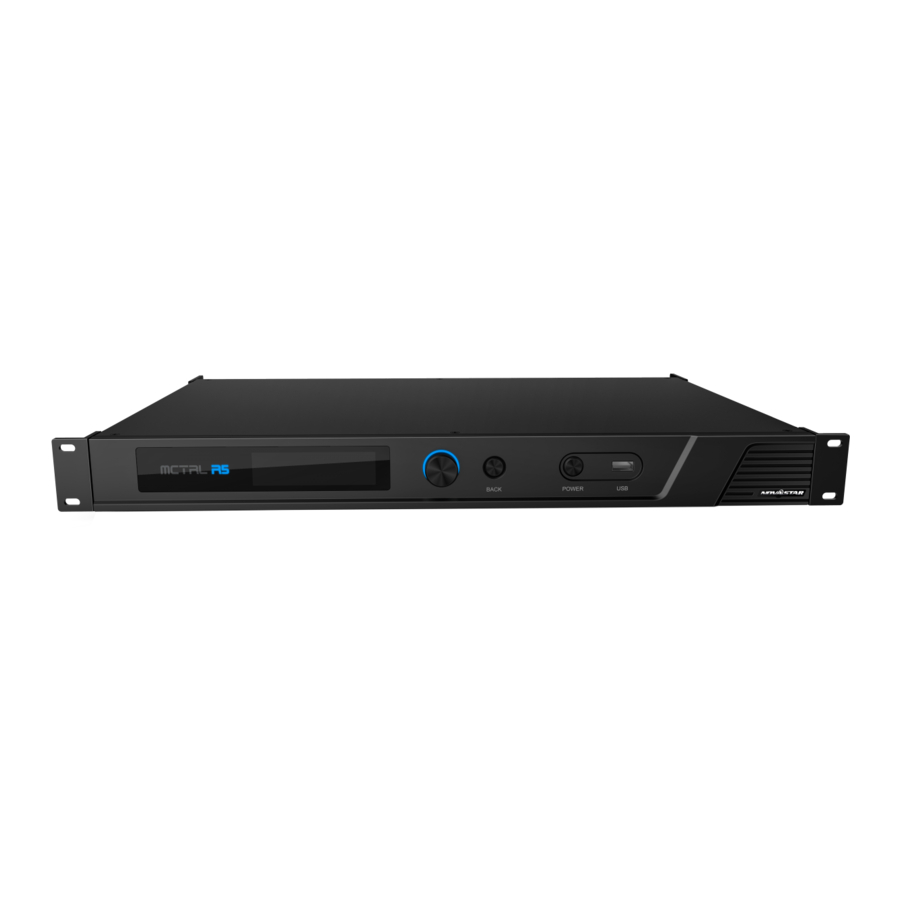

Independent Controller MCTRL R5
File number: NS110100279
Version number: V1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCTRL R5 and is the answer not in the manual?

Questions and answers

Related Manuals for NovaStar MCTRL R5

Summary of Contents for NovaStar MCTRL R5

  • Page 1 Independent Controller MCTRL R5 File number: NS110100279 Version number: V1.0.0...
  • Page 2 Dear users, Welcome to use NovaPluto software. This manual is intended to help you to understand and use the product. For accuracy and reliability, NovaStar may make improvements and/or changes to this manual at any time without notice. Any problem in using this manual or any good suggestion, please contact us through ways provided in the manual.

  • Page 3: Table Of Contents

    Table of Contents 1 Appearance....................1 Front Panel ........................1 Back Panel........................1 2 Signal Connection ..................3 3 Dimensions ....................3 4 Main Interface ..................... 4 5 Menue Operation ..................5 Step 1 Quick configuration ..................5 Step 2 Input settings ....................6 Step 3 Rotation settings....................

  • Page 4: Appearance

    M C T R L R 5 Use r M a ua l 1 Appearance Front Panel ① : indicates status of R5 indicators: Blue indicator keeps on → normal; Red indicator keeps on → alarm; Orange indicator keeps on → No signal; Blue breathing light keeps on → standby. ②...
  • Page 5 M C T R L R 5 Us e r M an u a l Inputs 6G-SDI 6G-SDI interface ④ HDMI HDMI 1.4 interface Dual-link DVI interface Output Interface ⑥ 8-way Neutrik Gigabit port output 2-way fiber output ⑤ OPT1~2 OPT1: From Port 1 to Port 8 OPT2 is the backup for OPT1.

  • Page 6: Signal Connection

    M C T R L R 5 Use r M a ua l 2 Signal Connection Connect the required hardware device by referring to the following diagram and interface introductions in previous chapters and. (Note: Turn off the power first before signal connection.) Connect multiple controllers according to the following diagram.

  • Page 7: Main Interface

    M C T R L R 5 Us e r M an u a l (Unit: mm) 4 Main Interface After the controller is started up, following interface will be displayed on the screen: ① : Device name; ② : Resolution and frame frequency of the currently connected input source. ③...

  • Page 8: Menue Operation

    Rotate to start/ Rotate to lock 5 Menue Operation MCTRL R5 features powerful functions and simple operations. Typically, users can enable the display screen as well as rotation function by completing the first four steps only. Selectively set other options in the menu to get better display effects.

  • Page 9: Step 2 Input Settings

    M C T R L R 5 Us e r M an u a l Notes: a) If n ports are used Example: during connection, If all from port 1 to port 8 have been connected, the t h e n u m b e r o f number of cabinets connecting to each one from port 1 to cabinets connecting port 7 must be the same, and is the integer multiple of the...

  • Page 10: Step 4 Brightness Adjustment

    M C T R L R 5 Use r M a ua l the set angle degree of Port 1.). Screen rotation: specifies the screen rotates for the set angle degree and takes LED display screen center as the rotation center. Rotation setting steps are shown as below: 1) Press the knob to enable the rotation function;...

  • Page 11: Image Settings

    M C T R L R 5 Us e r M an u a l Image offset Horizontal offset and vertical offset of devices' loading image can be set. Image settings Normal display: Normally displays contents of current inputs. Image freezing: Freezes currently displayed contents. Image black out: Dispaly screen does not display normally and is black out.
  • Page 12 M C T R L R 5 Use r M a ua l 1) Import configuration files into MCTRL R5. Note: In the setting page of MCTRL R5, NovaLCT-Mars will automatically read the existed configuration files of MCTRL R5 to perform some operations like file name modification, file order, and deleting.

  • Page 13: Communication

    Check the hardware version of this device. If new a version is found, connect to LCT- Mars through PC to upgrade the firmware program. Communication Set communication modes and network parameters of MCTRL R5. Communication modes include USB Preferred and LAN Preferred. Since the current device simultenously connects USB control interface and Ethernet control interface, USB Preferred is selected, and the system also uses the USB Preferred mode.

  • Page 14: Specifications

    M C T R L R 5 Use r M a ua l 6 Specifications Inputs Port Quantity Specifications Subject to 6G-SDI standard, support resolution up to 6G-SDI 3840×2160@30Hz, and be downward compatible. Subject to HDMI 1.4 standard, support resolution up to HDMI 3840×1080@60Hz, and be downward compatible.

  • Page 15: Common Problems And Notes

    M C T R L R 5 Us e r M an u a l 7 Common Problems and Notes Problem Troubleshooting Check whether power supply is connected correctly and the switch is turned on; Make sure whether the LED display screen is connected correctly and can work normally on the self-test image;...
