MCTRL R5 features powerful functions and simple operations. To achieve better
display effects, users can choose to set other options in the menu.

5.1 Brightness Adjustment

On the main menu, press the knob to select the Brightness item and rotate the knob
to adjust the brightness value.

5.2 Screen Settings

5.2.1 Quick Configuration

Before you start, load the cabinet configuration files and save them to the receiving
card.

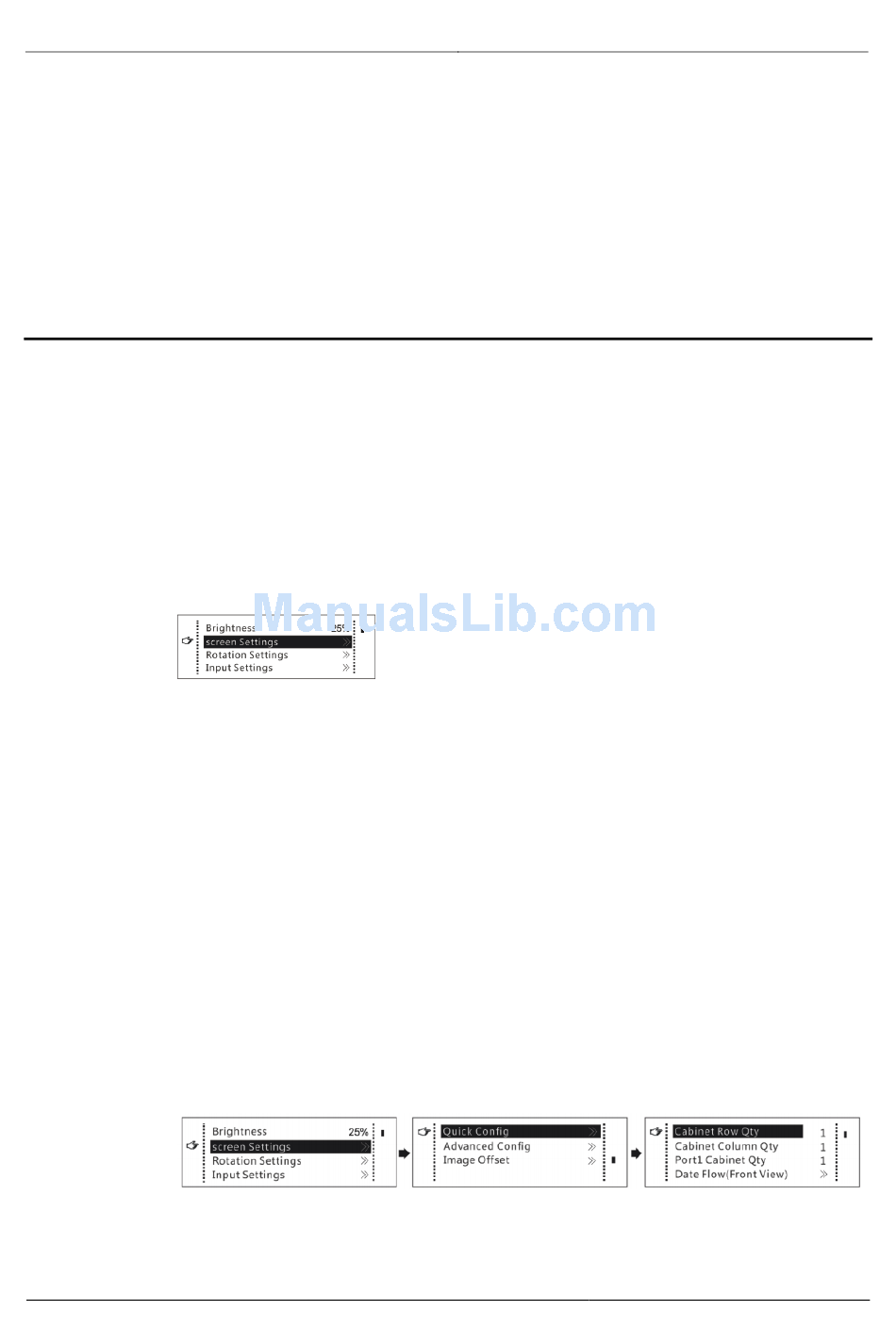

Step 1 Press the knob to enter the main menu.
Step 2 Choose Screen Settings > Quick Config to enter the submenu, and rotate the knob
to set corresponding options.



www.novastar.tech
Set the row and column quantity of cabinets based on the actual condition of a
screen.
Set the cabinet quantity connecting to port 1. There are limits on the loading
capacity of ports. Refer to a) in Note for details.
Set data flow of the screen, and refer to c), d), and e) in Note for details.
