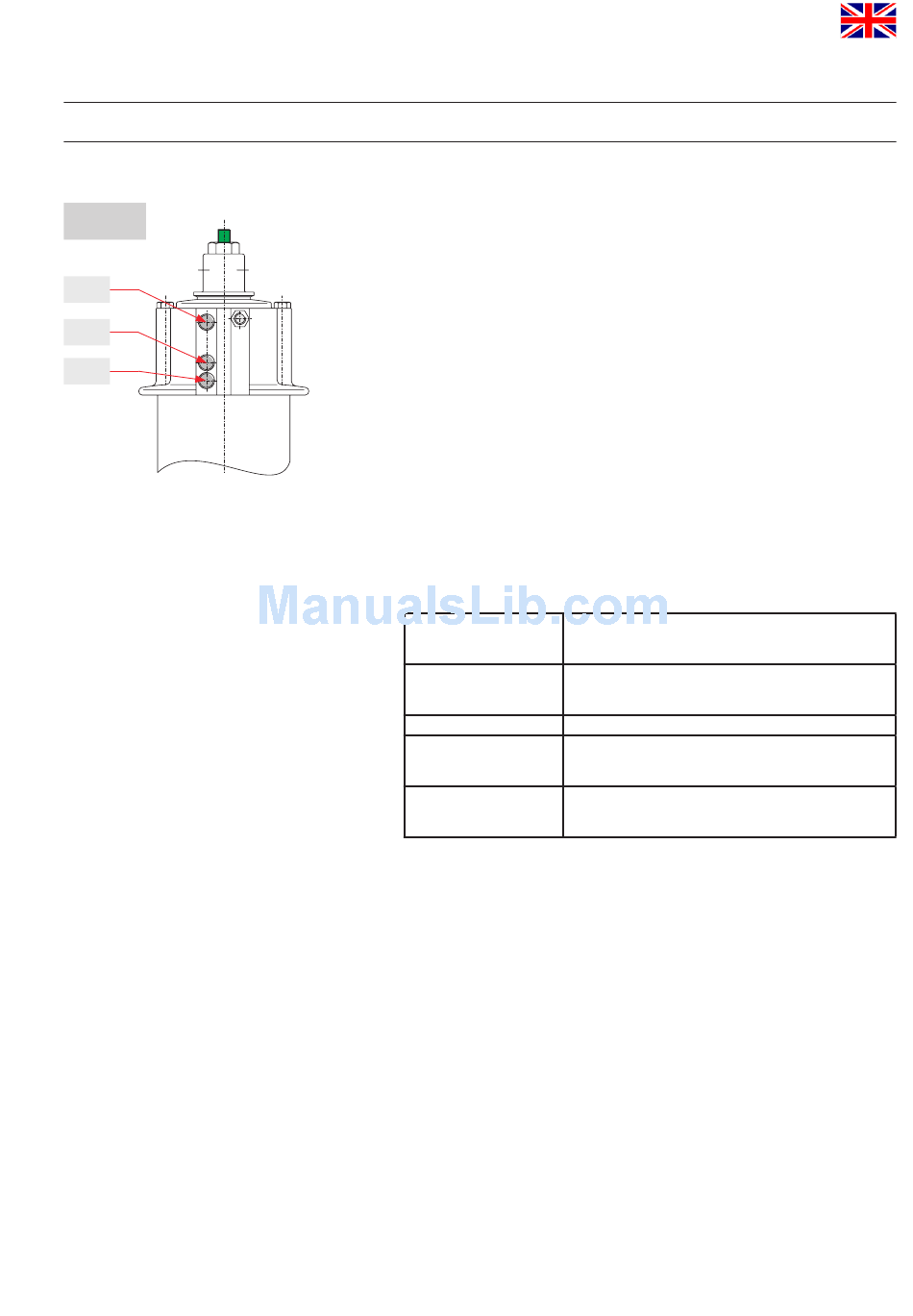

fig. 5.1.
D 1
D 2
D 3
Double Seat Valve
DELTA DE3
Instruction manual: UK - rev. 7
5.

Auxiliary Equipment

5.1. Valve position indication
Proximity switches to signal the limit positions of the valve shafts
can be installed at the main cylinder if required (fig. 5.1.)
D1 = valve position "closed"
D2 = valve position "open" (only for DN 40 - 50, 1,5" - 2")
D3 = valve position "open" (only for DN 65 - 150, 2,5" - 6")
We recommend to use our APV standard types:
operating distance: 5 mm / diameter: 11 mm
If the customer decides to use valve position indicators other than
APV type, we cannot take over any liability for a faultless function.
5.2.

Control Unit

The installation of a control unit on the DE3 valve is possible.
Start-up, assembly and dismantling of the different designs are
described in the corresponding instruction manual.
The following different designs are available:
Direct Connect
AS-interface
extended
Profibus
Device Net
- For the installation of the control unit on the DE3 valve an adapter is
required.
5.3. Adater for control unit
CU31 Profibus, CU31 DeviceNet
CU31 - adapter DA3 / DE3
reference number: 000 08 - 48 - 470/93; H314470
- Adater for control unit
CU41 M - Direct Connect, CU41 M - AS-interface
reference number: 000 08 - 48 - 602/93; H320476
CU41-M-Direct Connect
08 - 45 - 102/93 ; H320462
CU41-M-AS-i extended 62 slaves
08 - 45 - 112/93 ; H320469
CU31-DE3 Profibus
08 - 45 - 003/93 ; H315497
CU31-DE3 DeviceNet
16 - 31 - 242/93 ; H209424
