Valve Stroke Open/Closed; Materials - SPX FLOW APV DELTA DE3 Instruction Manual

APV
APV_DE3_UK-7_082017.indd

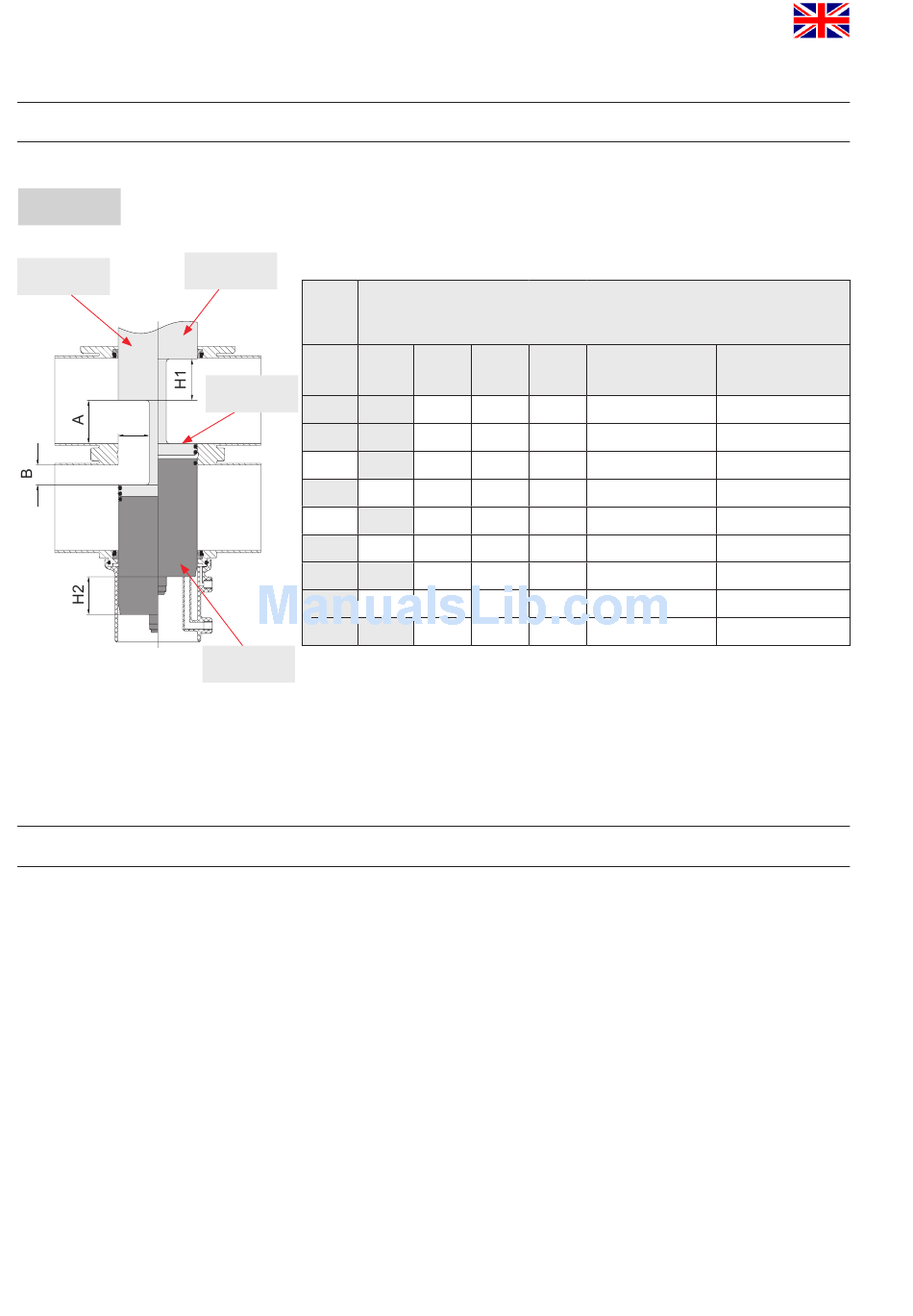

fig. 9.5.
valve position
valve position
open
C
13
9. Technical Data
closed
9.5.
DN Inch
upper
valve shaft
40 1,5"
50 2"
2,5"
65
3"
80
100 4"
125
150 6"
lower
valve shaft

10. Materials

Product-wetted parts:
Other parts:
Seals:
Standard design:
Option:
Actuator:
Shaft bearing:
Drain pipe:
Valve stroke open / closed
dimensions in mm
A B C
6,5 5 21,2
11,5 12 21,2
15,5 18 21,2
21,5 18 21,2
27,6 18 21,2
31,5 23 36,2
50,5 23 36,2
69,5 29 42,7
86,5 37 54,7
1.4571, 1.4404 (DIN EN 10088)
1.4301 (DIN EN 10088)
EPDM/ PTFE
HNBR/ PTFE
FPM/ PTFE
PA 12 GF 30
PPS
PP GF30
stroke H1 stroke H2
upper shaft lower shaft
30 26
37 33
43 39
43 39
43 39
48 44
48 44
54 50
62 58
Double Seat Valve
Instruction manual: UK - rev. 7
UK
DELTA DE3
