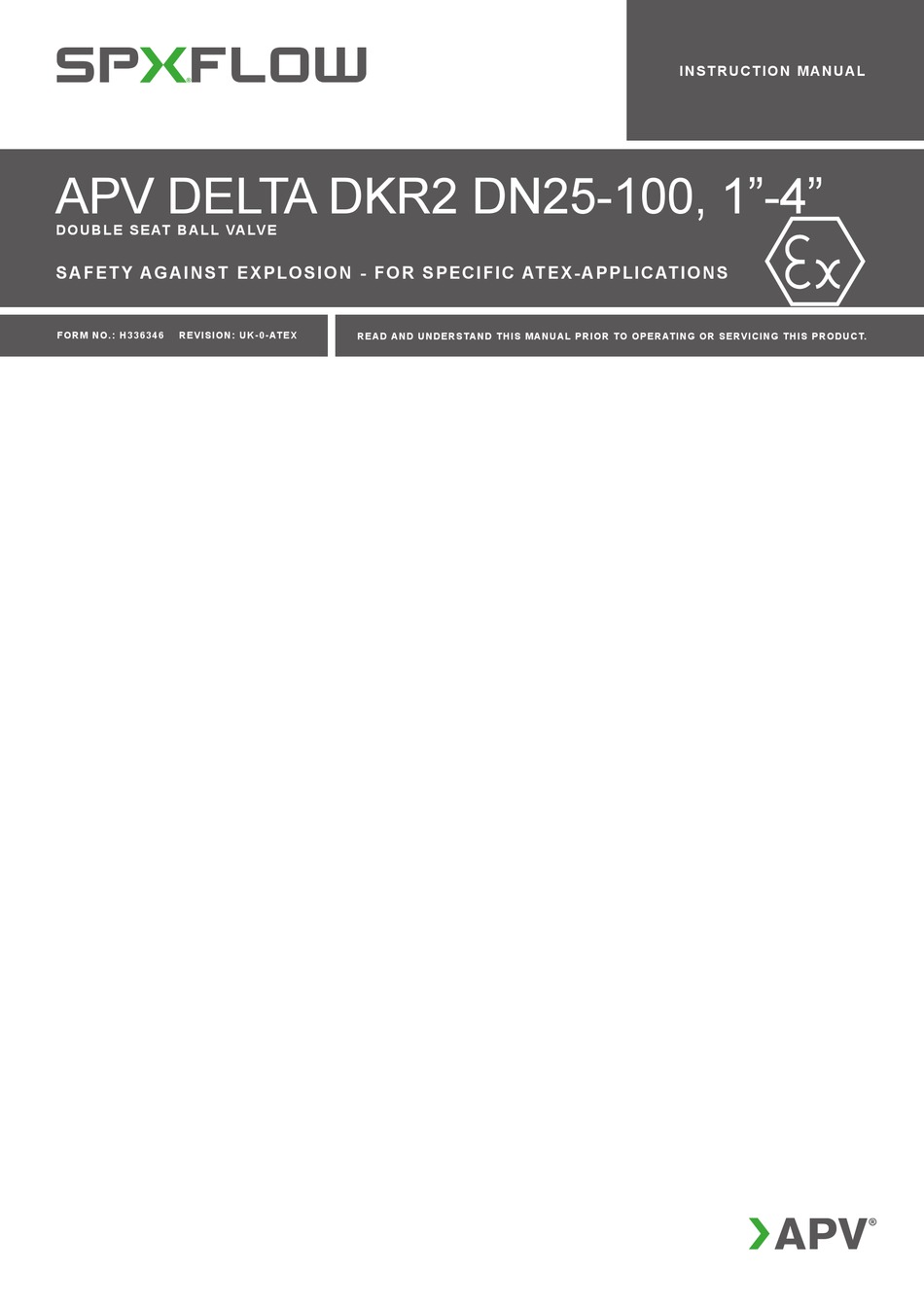

I N S T R U C T I O N M A N U A L
APV DELTA DKR2 DN25-100, 1"-4"
D O U B L E S E AT B A L L VA LV E
S A F E T Y A G A I N S T E X P L O S I O N - F O R S P E C I F I C AT E X - A P P L I C AT I O N S
F O R M N O . : H 3 3 6 3 4 6
R E V I S I O N : U K - 0 - AT E X
R E A D A N D U N D E R S TA N D T H I S M A N U A L P R I O R TO O P E R AT I N G O R S E RV I C I N G T H I S P R O D U C T.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APV DELTA DKR2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SPX FLOW APV DELTA DKR2

Summary of Contents for SPX FLOW APV DELTA DKR2

  • Page 1 I N S T R U C T I O N M A N U A L APV DELTA DKR2 DN25-100, 1”-4” D O U B L E S E AT B A L L VA LV E S A F E T Y A G A I N S T E X P L O S I O N - F O R S P E C I F I C AT E X - A P P L I C AT I O N S F O R M N O .
  • Page 3 Directive on the Protection against Explosion 2014/34/EU ATEX (superseding 94/9/EC) for Equipment Category -/2D IIB TX For official inspections, SPX FLOW presents a technical documentation according to Appendix VII of the Machinery Directive, this documentation consisting of documents of the development and construction, description of measures taken to meet the conformity and to comply with the basic requirements on safety and health, incl.

  • Page 5: Table Of Contents

    APV_DKR2 ATEX_UK-0_022018.indd Content Page General Terms 1.1. Symbols 1.2. Responsibility for ATEX certification - Scope of supply Safety Instructions 3 - 4 Identification of valves, Temperature classes, Responsibilites 5 - 6 3.1. Identification of valves for application in ATEX environment 3.2. Temperature classes and permissible temperatures 3.3. Responsibilities Intended Use Mode of Operation 7 - 8 5.1. General terms 5.2. Potential equalization 5.3. Operating leakage reduction 5.4.

  • Page 7: General Terms

    1.2. Responsibility for ATEX certification - scope of supply SPX FLOW will be held responsible only for the valves supplied and selected according to the operating conditions indicated by the customer or end user and as stated in the order confirmation. If in doubt, contact your SPX FLOW partner.

  • Page 8: Safety Instructions

    Danger to life! Actuators which are no longer used or defective must be diposed in professional manner. Defective actuators must be returned to your SPX FLOW representative for their professional disposal and free of charge for you. Please address to your local SPX FLOW representative.

  • Page 9: Safety Instructions

    APV_DKR2 ATEX_UK-0_022018.indd Safety Instructions Installation, connection, start-up, maintenance and repair work must only be carried out by qualified personnel. The following aspects must be observed: The instructions of this manual together with all relevant instructions for the components, equipment and installations installed. Warnings and installations fixed to the components. The specific regulations for and requirements to the system in which the valve is installed. The currently valid regional, national and international regulations.

  • Page 10: Temperature Classes And Permissible Temperatures

    All data (temperature classes) refer to an ambient temperature of 0°C to 40°C. If the ambient temperature is above 40°C, the temperature difference must be adjusted. In all cases, contact your responsible SPX FLOW representative! Double Seat Ball Valve DELTA DKR2 ATEX Design...

  • Page 11: Responsibilities

    APV_DKR2 ATEX_UK-0_022018.indd Identification of valves, Temperature classes, Responsibilities 3.3 Responsibilites It is within the operator`s responsibility to ensure that the specified product temperatures are not exceeded and that regular inspections and maintenance are carried out to provide for proper function of the valve. Intended Use The intended use as field of application of the butterfly valves is the shut-off of line sections, especially in beverage and food installations.
  • Page 12 APV_DKR2 ATEX_UK-0_022018.indd Mode of Operation 5.1. General terms Due to the use of high-quality stainless steel and seal materials complying with the specified requirements, the double seat ball valve DELTA DKR2 can be used in the food and beverage industries as well as in the chemical and pharmaceutical industries.

  • Page 13: Mode Of Operation

    APV_DKR2 ATEX_UK-0_022018.indd Mode of Operation 5.2. Potential Equalization A possible risk may result from a potential difference between the components. With non-conducting media or empty pipline sections, a conducting connection must be created between the valve components. With double seat ball valves, this is reached by the installation of a spring.

  • Page 14: Cleaning

    APV_DKR2 ATEX_UK-0_022018.indd Cleaning 6.1. Cleaning recommendation The valve passage is cleaned by the cleaning liquid during cleaning of the connected pipelines. Several switching (“cycling”) of the valve during pipeline cleaning is beneficial for the cleaning of the leakage chamber. Depending on the degree and contents of soiling, the cleaning liquids, times and processes for the individual application must be scheduled.

  • Page 15: Installation

    APV_DKR2 ATEX_UK-0_022018.indd Installation 7.1. Welding Instructions Welding may only be carried out by certified welders (DIN EN ISO 9606-1). (seam quality DIN EN ISO 5817). The welding of the mating flanges must be effected in such a way that deformation strain cannot be transfered to the valve body. TIG orbital welding is the most appropriate method. Before welding, all heat sensitive parts of the valve must be removed! Dismantle valve ball housing with seals between the counterflanges.

  • Page 16: Dimensions / Weights

    APV_DKR2 ATEX_UK-0_022018.indd Dimensions / Weights Ø G Dimensions in mm Ø D Ø G Weights in kg 60,5 61,0 79,0 100,3 123,0 18,0 150,0 21,5 Inch 1" 22,6 60,5 1,5" 61,0 34,9 2" 79,0 47,6 2,5" 100,3 60,3 3" 72,9 18,0 4" 97,6 21,5 Double Seat Ball Valve DELTA DKR2 ATEX Design Instruction Manual: UK-0...

  • Page 17: Technical Data

    APV_DKR2 ATEX_UK-0_022018.indd Technical Data 9.1. General terms max. line pressure: 10 bar threaded union – G1/8" slewable max. operating temperature: 135 °C EPDM, HNBR tightening torque 2 Nm *VMQ, *FPM short-term load: 140 °C EPDM, HNBR *VMQ, *FPM *(no steam) throughput cleaning at 3 bar about 5–10 l/min. admission pressure: turning actuator 6 bar min. control pressure: max.

  • Page 18: Max. Tightening Torque In Nm

    APV_DKR2 ATEX_UK-0_022018.indd Technical Data Inch 1" 1,5" 2" 2,5" 3" 4" 9.3. max. tightening torque in Nm 9.4. operating leakage at about 5 bar in L (Qs) (opening and closing process) 9.5. operating leakage at about 5 bar in L (Qs) with operating leakage reduction 9.6. pneum. air consumption in 6 bar NL 10. Materials housing, valve ball, shafts 1.4404 (DIN EN 10088) ball seal PTFE flange seal standard: EPDM option: HNBR, FPM, VMQ housing seal standard: EPDM option:...

  • Page 19: Maintenance

    APV_DKR2 ATEX_UK-0_022018.indd Maintenance The maintenance intervals depend on the corresponding application and are to be determined by the operator himself carrying out temporary checks. Before start of maintenance and assembly the operator must make sure that an explosive atmohsphere does not exist (detection/ measurement of potential concentration of hazardous substances).
  • Page 20 APV_DKR2 ATEX_UK-0_022018.indd 11. Maintenance Additionally required maintenance for applications in ATEX environment Replacement of spring for potential equalization if damaged. DKR2 Valve actuated version Valve maintenance for Note actuator with spring Functional test, 1 x per year visual inspection of actuator movement (turning angle) and control of abnormal running noise of spring Change interval of actuator In case of damage,...

  • Page 21: Service Instructions

    APV_DKR2 ATEX_UK-0_022018.indd 12. Service Instructions The item numbers refer to the spare parts drawing. RN ATEX 01.071 12.1. Dismantling from the line system 1. Shut off connecting lines, let off line pressure and discharge if possible. 2. Disconnect pneumatic and electric connections. 3. Dismantle cleaning line. 4. Screw off valve position indicator 5. Remove flange screws (20). 6. Detach ball valve from the flanges.

  • Page 22: Installation Of Seals And Guide Bands

    APV_DKR2 ATEX_UK-0_022018.indd 12. Service Instructions 12.3. Installation of seals and guide bands 1. Slightly grease O-rings (5, 6) and guide bands (4) before their installation in the shaft bearings (2/22). 2. Push upper and lower shaft bearing with a little grease in the housing, insert screws (3), but do not fasten them.. 3.
  • Page 23 APV_DKR2 ATEX_UK-0_022018.indd 12. Service Instructions 12.5.1 Adjustment of operating position with FG flanges Install the ball seals as described in 12.3. Assemble the valve as described in 12.4. Turn the ball into its exact open position. 1. Control actuator (15) with pneumatic air (min. 6 bar) and place it on the yoke (17).
  • Page 24 APV_DKR2 ATEX_UK-0_022018.indd 12. Service Instructions 12.5.2. Adjustment of operating position without FG flanges If FG flanges are not available, the ball can, in exceptional cases, be adjusted as follows (Attention! Failure of adjustement is possible.): Install the ball seals as described in 12.3. Assemble the valve as described in 12.4. Turn the ball into its exact open position.

  • Page 25: Leakage Reduction For Dkr Ball Valve

    APV_DKR2 ATEX_UK-0_022018.indd 13. Service Instructions 13.1. Leakage reduction for DKR ball valve If the valve is not dismantled from the pipeline for the installation of the leakage reduction, it must be guaranteed that the corresponding pipeline is depressurized! Leakage reduction compl. DN, Inch ref.-No. ID-No. 25, 1" 15-28-143/59 H138695 40 - 65, 1,5"...

  • Page 26: Installation Of Leakage Drain

    APV_DKR2 ATEX_UK-0_022018.indd 13. Service Instructions 13.2. Leakage connection (drain) for DKR ball valve If the valve is not dismantled from the pipeline for the installation of the leakage drain, it must be guaranteed that the corresponding pipeline is depressurized! Leakage connection compl. DN, Inch ref.-No. ID-No. 25 - 65, 1" - 2,5" 16-37-020/59 H112046 80 - 125, 3"...

  • Page 27: Detection Of Seal Damage

    APV_DKR2 ATEX_UK-0_022018.indd 14. Detection of Seal Damage Failure Remedy Valve closed and pressurized Leakage at pipeline flange Replace seal (8). Leakage from the leakage drain 1. Check adjustment of valve ball according to Service Instructions 12.5. 2. Replace seals (8, 9, 7). Valve open Leakage from the leakage drain 1. Check adjustment of valve ball according to Service Instructions 12.5. 2. Replace seals (8, 9, 7). Valve closed and leakage during cleaning via the spray connection Leakage at spray connection Replace o-rings (12). Leakage at shaft bearings Replace guide bands (4) and o-rings (5, 6) according to Service Instructions 12.3. If damaged seals are exchanged, generally replace all seals. For valve maintenance actions we supply complete seal kits (see spare parts lists). 15. Spare Parts Lists (see annex) The reference numbers of the spare parts for the different valve...
  • Page 29 09.11.16 Name: Keil C.Keil Geprüft: Ersatzteilliste: spare parts list SPX FLOW Ventil DKR -FZ 1+2S Ex II -/2D IIB TX Germany Blatt Double seat ball valve 1+2S Ex II -/2D IIB TX RN ATEX 01.071 DN25-100; 1-4 zoll / inch...
