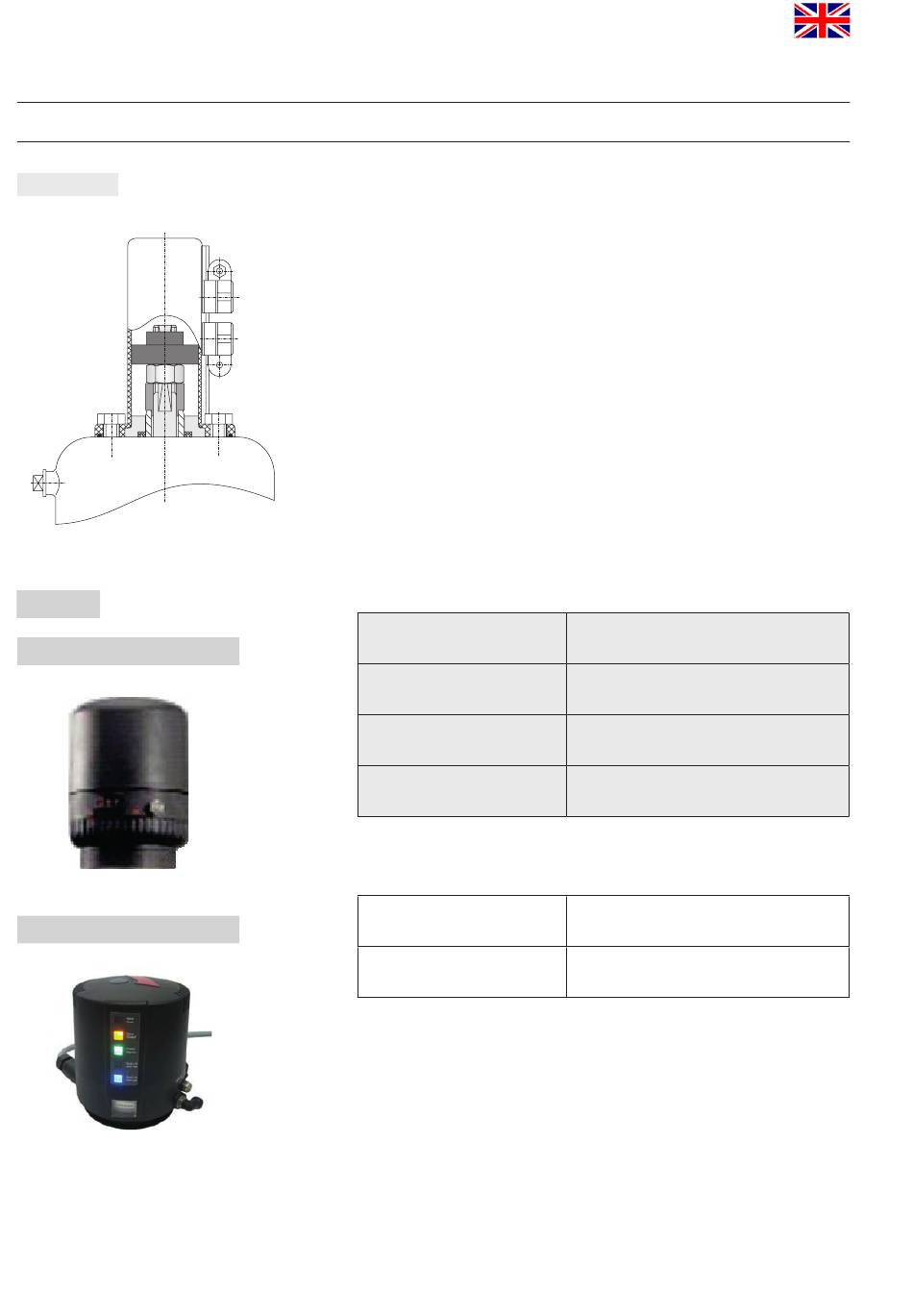

fig. 5.1.
fig. 5.2.
CU3 control unit
CU4 control unit
5
5.

Auxiliary Equipment

5.1. Valve position indication (fig. 5.1.)
For the valve position indication a proximity switch support can be
installed direct at the actuator.
Proximity switches to signal the limit position of the valve seat can
be installed at the proximity switch holder (PSH) if required.
We recommend to use one of our APV standard types:
operating distance : 5mm / diameter: 11mm.
Operating voltage: 10 - 30 VDC
Output: operating current pnp - positive switching
Connection: moulded cable 5 m long
Protective type: IP 67
Reference number: 08 - 60 - 011/93; H16223
If the customer decides to use a valve position indicator other than
APV type, we cannot take over any liability for any malfunctions.
5.2. Control Unit (fig. 5.2.)
The installation of a control unit on the MS4 valve is possible.
The following different designs are available:
Direct Connect
reference number; ID-No.
Profibus
reference number; ID-No.
Device Net
reference number; ID-No.
AS-interface extended
reference number; ID-No.
For the installation of the control unit on the MS4 valve an adapter is
required:
Designation:
reference number:
Designation:
reference number:
CU41-S-Direct Connect
08-45-100/93; H320460
CU31-Profibus
08 - 45 - 001/93; H315495
CU31-Device Net
16 - 31 - 240/93; H209422
CU41-S-AS-i extended
08 - 45 - 110/93; H320467
CU3 adapter SW4 / M4
08-48-480/93; H315806
CU4-S adapter for DN25/1"-100/4"
08-48-600/93; H320474
Diaphragm valve with „fan support"
Instruction Manual UK- rev. 3
UK
DELTA MS4
