Assembly Of Shaft Flushing - SPX FLOW APV DELTA DE3 Instruction Manual

APV
APV_DE3_UK-7_082017.indd
plastic plug
safety spring
flush connection DE3
IN
supply
cleaning liquid
21

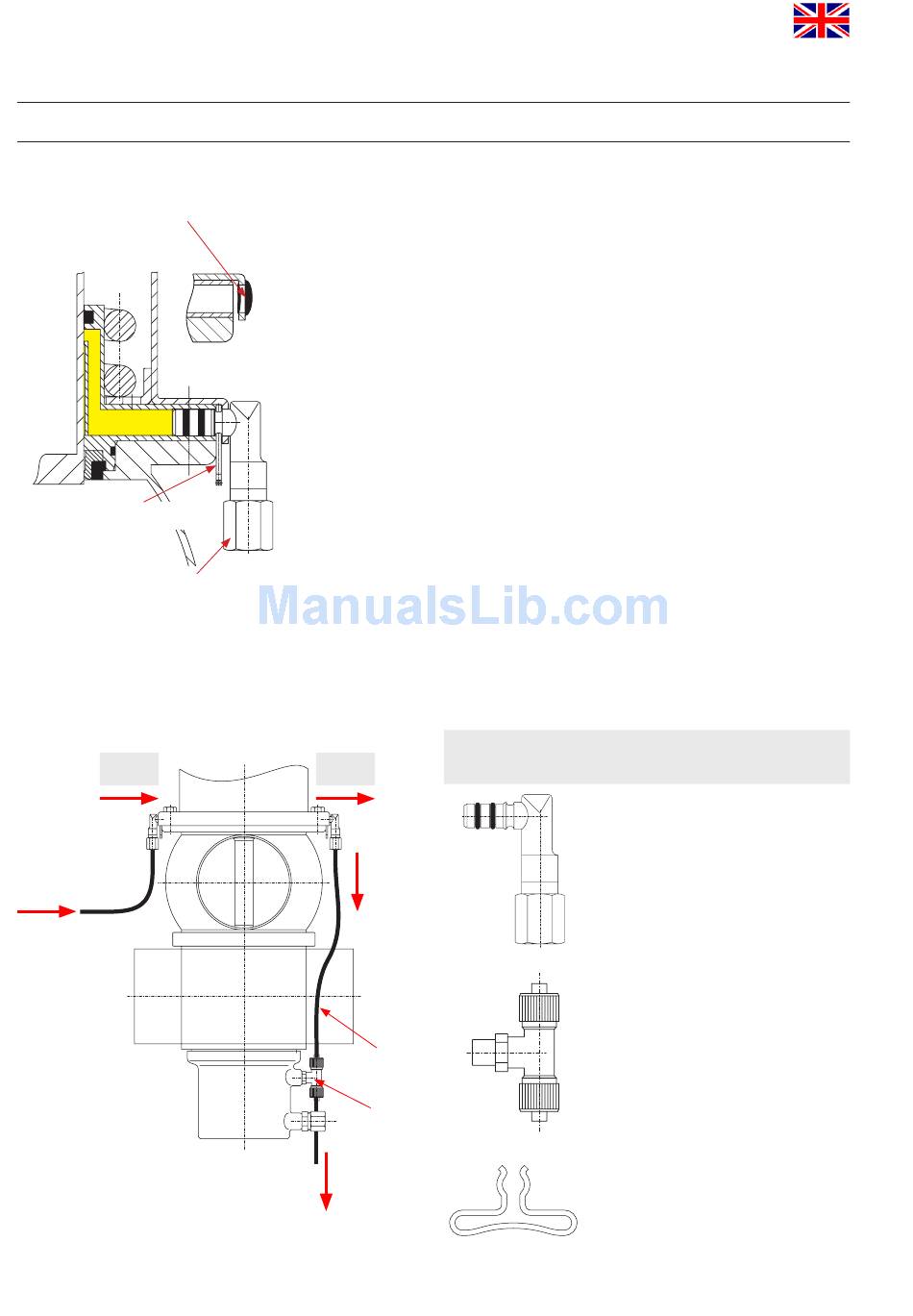

14. Special Accessory - Shaft flushing
The valve is prepared for the shaft flushing.
The required construction kit is available as accessory.
Construction kit for assembly of shaft flushing, complete
DN40 - 100, 1,5" - 4"
DN125 - 150, 6"
14.1.

Assembly of shaft flushing

- Remove the plastic plug.
- Insert the flush connections in the shaft bearing and arrest them
with the locking spring.
Bolt the supply hose for cleaning liquids to the flush connection.
Identification: IN
Bolt the discharge hose for cleaning liquids to the flush connection
Identification: OUT
- Screw the T-union into the drain pipe and hose it.
- Check the passage of the cleaning liquid.
OUT
hose
8x1 mm
T - union
free discharge
H201675
H312958
The construction kit for the shaft flushing
consists of the following components:
DN 40 - 150, 1,5" - 6"
2 x flushing connection DE3
ref.-No.: 000 16-38-070/93
H201674
DN 40 - 100, 1,5" - 4"
1 x T - union 8-1/8"-8
ref.-No.: 000 08-63-371/93
H176993
DN 125 - 150, 6"
1 x T - union 8-1/4"-8
ref.-No.: 000 08-63-372/93
H312957
DN 40 - 150, 1,5" - 6"
2 x safety spring DE3
ref.-No.: 000 67-03-015/13
H171289
UK
Double Seat Valve
DELTA DE3
Instruction manual: UK - rev. 7
