Using Vscan Extend

Taking measurements

5-24
Vscan Extend enables distance measurement on frozen images
in both black and white and color imaging. Up to eight
measurements can be performed on an image. Measurements
can be done during image review or on recalled stored images.
To perform a measurement:
1. On a frozen image, press Measure.
The measurement calipers displays.
2. Drag to position the calipers to obtain the desired
measurement.
3. To store the image with a measurement, press Store.

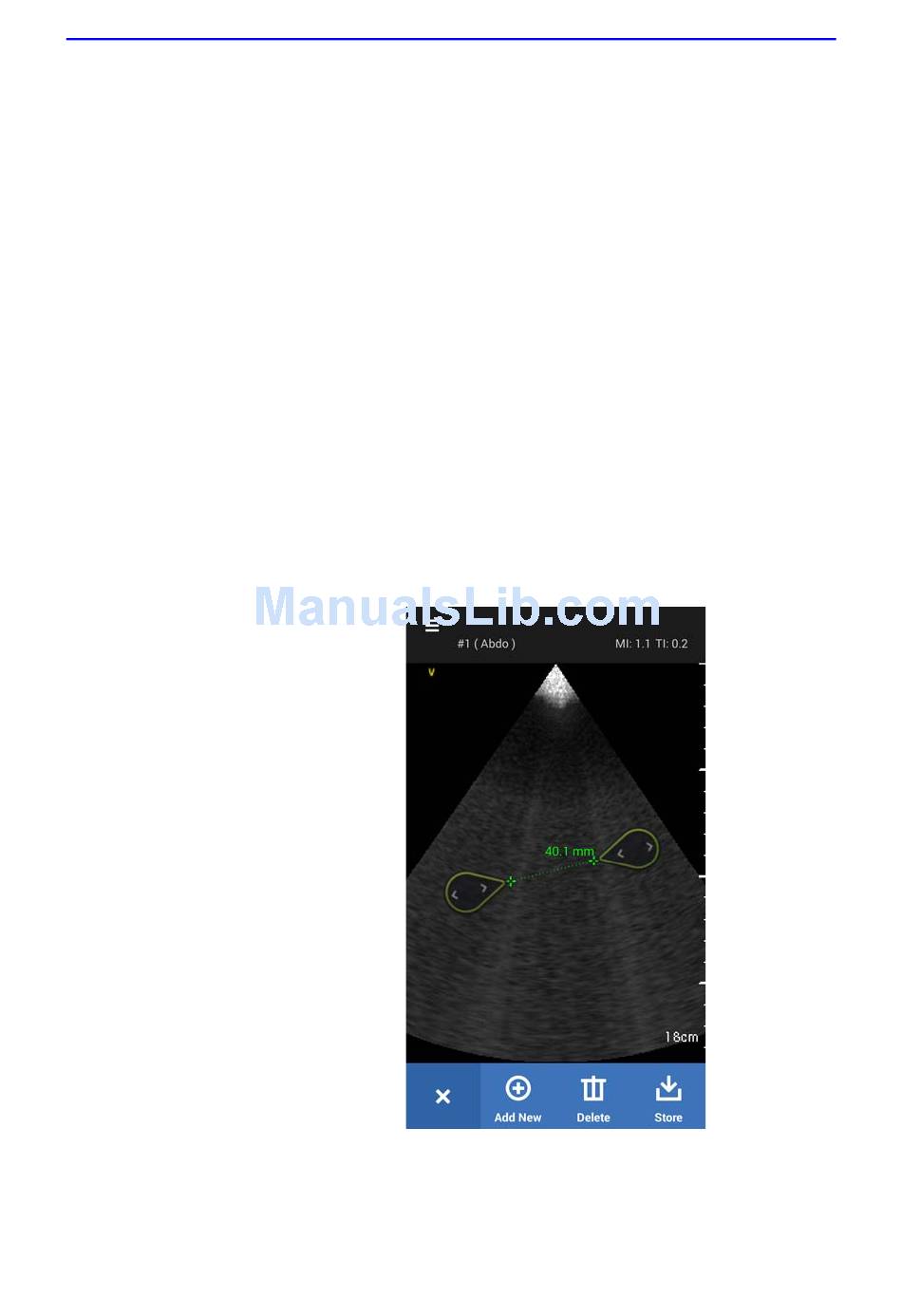

Figure 5-20. Measurement

Measurements
