Using Vscan Extend
Using Lung Protocol (continued)
NOTE:
NOTE:
5-58
4. The lung linear preset is automatically applied. The lung
preset is added as favorite in the Preset menu.

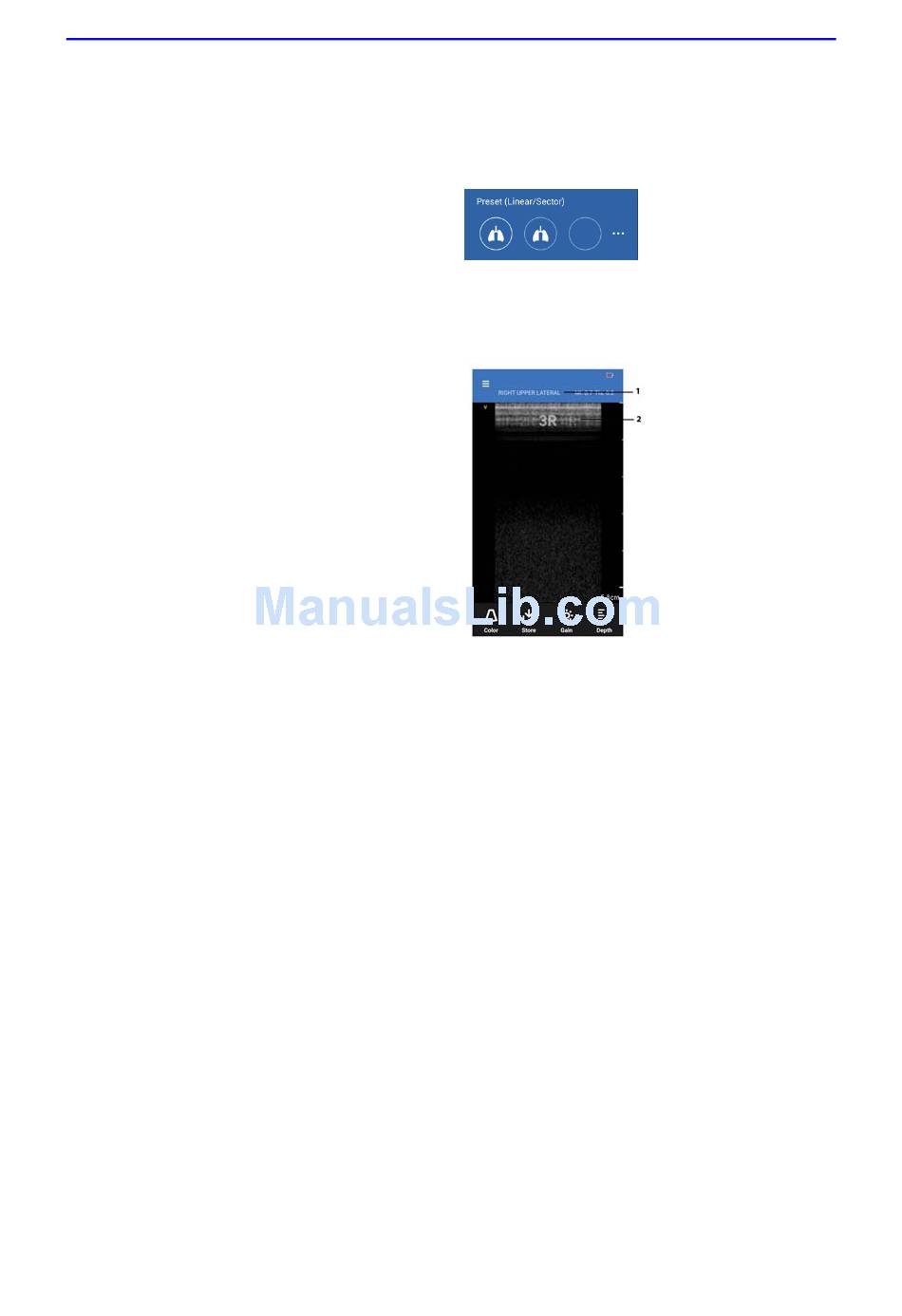

Figure 5-59. Preset menu
The scan screen displays.
Figure 5-60. Lung protocol scan screen
1. Displays current segment name
2. Displays previous, current and next segments
5. Press Store to save the images or Cine loops for the current
segment. The saved image icon appears at the upper left
corner of the scan screen.
6. Swipe from right to left to move to the next segment, for
example 1R to 2R, where 1R is the first segment of the right
lung. Similarly, 1L is the first segment of the left lung.
OR
Swipe from left to right to move to the previous segment.
The number of segments that can be scored depends on the
number of segments selected on the Settings menu.
The user is able to store multiple images per segment. Only the
latest saved image, for a particular segment, is available for
review. However, the user can view all the images in the Gallery
under the current exam.
The appearance of the 'Gallery' icon indicates if an image and/or
video is stored in the segment.
–
