Using Vscan Extend

Lung Protocol

Installing the Lung Protocol application
Lung Protocol settings
5-54
Lung Protocol application guides you through a step by step
lung ultrasound exam.
The application performs the following functions:
1. Automatic lung preset selection
2. Guides or helps assessing the stored images
3. Helps to calculate a total lung score
4. Generates a simple report at the end of the exam
1. Press Menu -> Settings -> GE Marketplace.
A list of available apps displays.
2. Press Lung Protocol to view details.
3. Press Install.
The Lung Protocol app installs.
1. Press Start a protocol on the Menu screen.
2. Press the Lung Protocols Settings icon on the Protocols
screen to choose the desired settings.

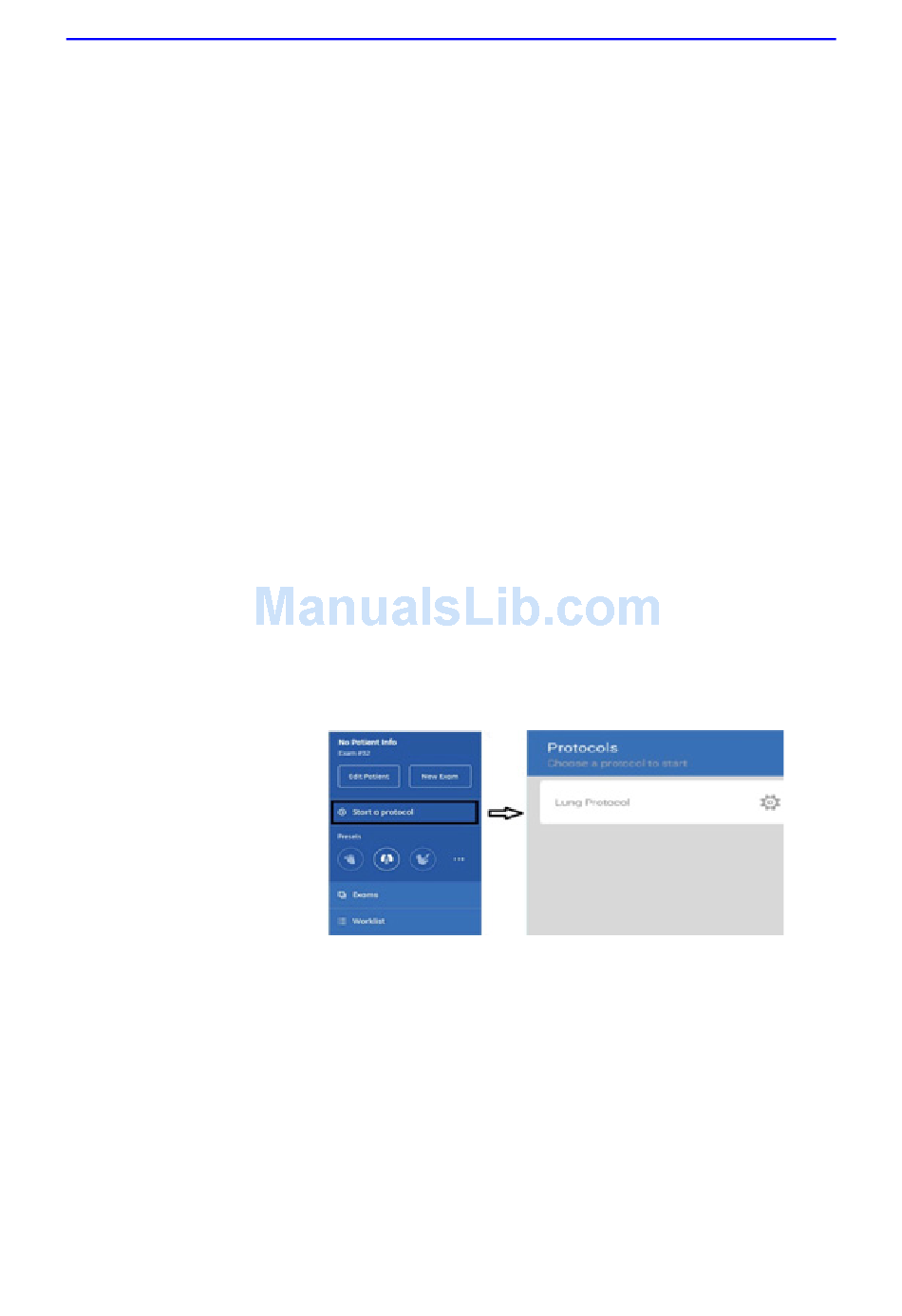

Figure 5-55. Start a protocol
–
